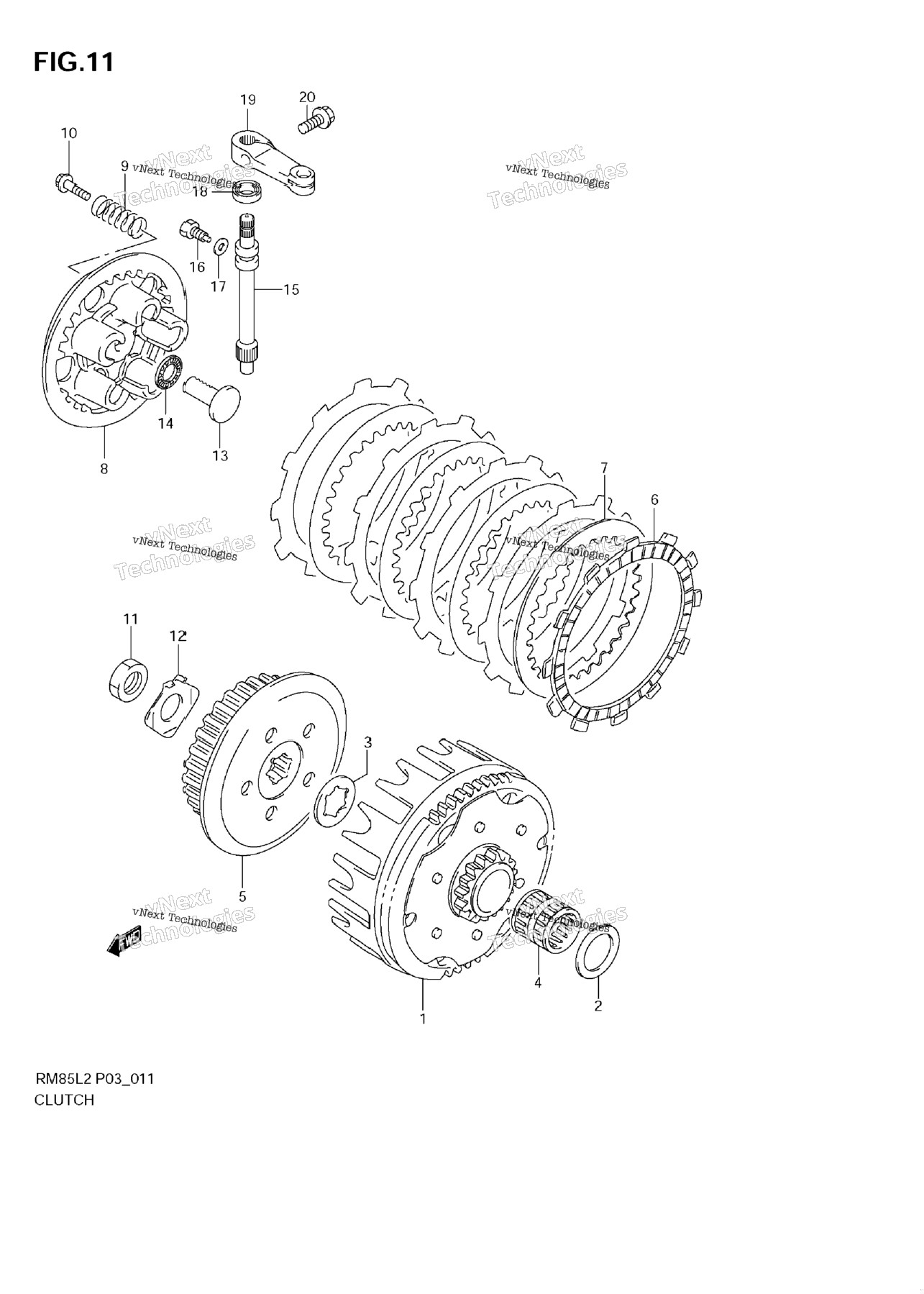

| 1 | 21200-02B41 | GEAR ASSY, PRIMARY DRIVEN NT:62/16 | 1 шт. | — | |
|
| 2 | 09181-20223 | SHIM (20X32X1) | 1 шт. | — | |
|
| 3 | 09167-20024 | LOCK WASHER | 1 шт. | — | |
|
| 4 | 09263-20023 | BEARING (20X25X26) | 1 шт. | — | |
|
| 5 | 21410-01B01 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 6 | 21441-13A01 | PLATE, CLUTCH DRIVE (T:3.0) | 5 шт. | — | |
|
| 7 | 21451-36200 | PLATE, CLUTCH DRIVEN (T:2.0) | 4 шт. | — | |
|
| 8 | 21462-02B41 | DISC, PRESSURE | 1 шт. | — | |
|
| 9 | 09440-16017 | SPRING | 5 шт. | — | |
|
| 10 | 09116-05021 | BOLT (5X20) | 5 шт. | — | |
|
| 11 | 09140-16027 | NUT | 1 шт. | — | |
|
| 12 | 09169-16005 | WASHER | 1 шт. | — | |
|
| 13 | 23165-44B01 | RACK,CLUTCH RELEASE | 1 шт. | — | |
|
| 14 | 09263-10002 | BEARING (10X22X2.8) | 1 шт. | — | |
|
| 15 | 23261-20A01 | PINION,CLUTCH RELEASE | 1 шт. | — | |
|
| 16 | 09135-06501 | BOLT (6X10) | 1 шт. | — | |
|
| 17 | 09168-06004 | GASKET (6.2X11X1.2) | 1 шт. | — | |
|
| 18 | 09285-10004 | OIL SEAL (10X17X5) | 1 шт. | — | |
|
| 19 | 23271-20902 | ARM CLUTCH RELEASE | 1 шт. | — | |
|
| 20 | 09103-06234 | BOLT (6X16) | 1 шт. | — | |
|
