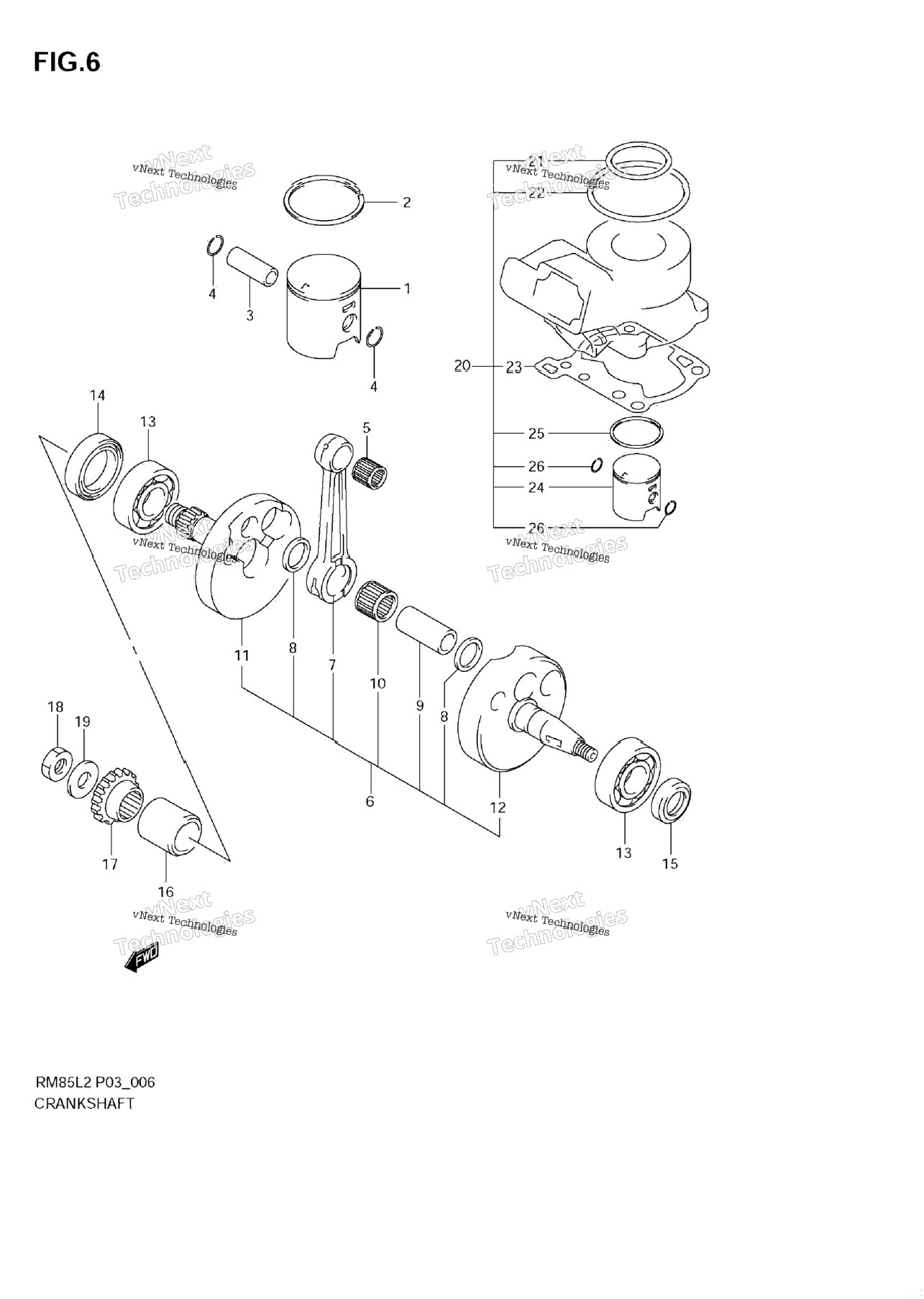

| 3 | 12151-20910 | PIN, PISTON | 1 шт. | — | |
|
| 5 | 09263-14016 | BEARING (14X18X16) | 1 шт. | — | |
|
| 6 | 12200-03B20 | CRANKSHAFT ASSY | 1 шт. | — | |
|
| 7 | 12161-03B02 | CONNROD | 1 шт. | — | |
|
| 8 | 09160-20082 | WASHER (20X34X1.5) | 2 шт. | — | |
|
| 9 | 12211-02B50 | PIN, CRANK | 1 шт. | — | |
|
| 10 | 09263-20088 | BEARING (20X26X14) | 1 шт. | — | |
|
| 11 | 12221-03B01 | CRANKSHAFT, RH | 1 шт. | — | |
|
| 12 | 12261-03B01 | CRANKSHAFT, LH | 1 шт. | — | |
|
| 13 | 09262-20082 | BEARING (20X52X15) | 2 шт. | — | |
|
| 14 | 09283-30061 | OIL SEAL (30X40X7) | 1 шт. | — | |
|
| 15 | 09283-18007 | OIL SEAL (18X30X7) | 1 шт. | — | |
|
| 16 | 12359-27C30 | SPACER, PRIMARY DRIVE GEAR | 1 шт. | — | |
|
| 17 | 21111-02B41 | GEAR, PRIMARY DRIVE (NT:18) | 1 шт. | — | |
|
| 18 | 09140-16019 | NUT | 1 шт. | — | |
|
| 19 | 09164-16002 | WASHER | 1 шт. | — | |
|
| 20 | 12100-03860 | TOP END KIT, ENGINE OPT | 1 шт. | — | |
|
| 21 | 11147-03B00 | O RING, CYLINDER HEAD NO.1 OPT | 2 шт. | — | |
|
| 22 | 11148-03B00 | O RING, CYLINDER HEAD NO.2 OPT | 2 шт. | — | |
|
| 23 | 11241-03B01 | GASKET, CYLINDER OPT | 2 шт. | — | |
|
| 24 | 12110-03B20-0F0 | PISTON | 1 шт. | — | |
|
| 24 | 12110-03B20-0F0 | PISTON OPT | 1 шт. | — | |
|
| 25 | 12141-03B00 | RING, PISTON | 1 шт. | — | |
|
| 25 | 12141-03B00 | RING, PISTON OPT | 2 шт. | — | |
|
| 26 | 09381-14001 | RING,SNAP | 2 шт. | — | |
|
| 26 | 09381-14001 | RING,SNAP OPT | 2 шт. | — | |
|
