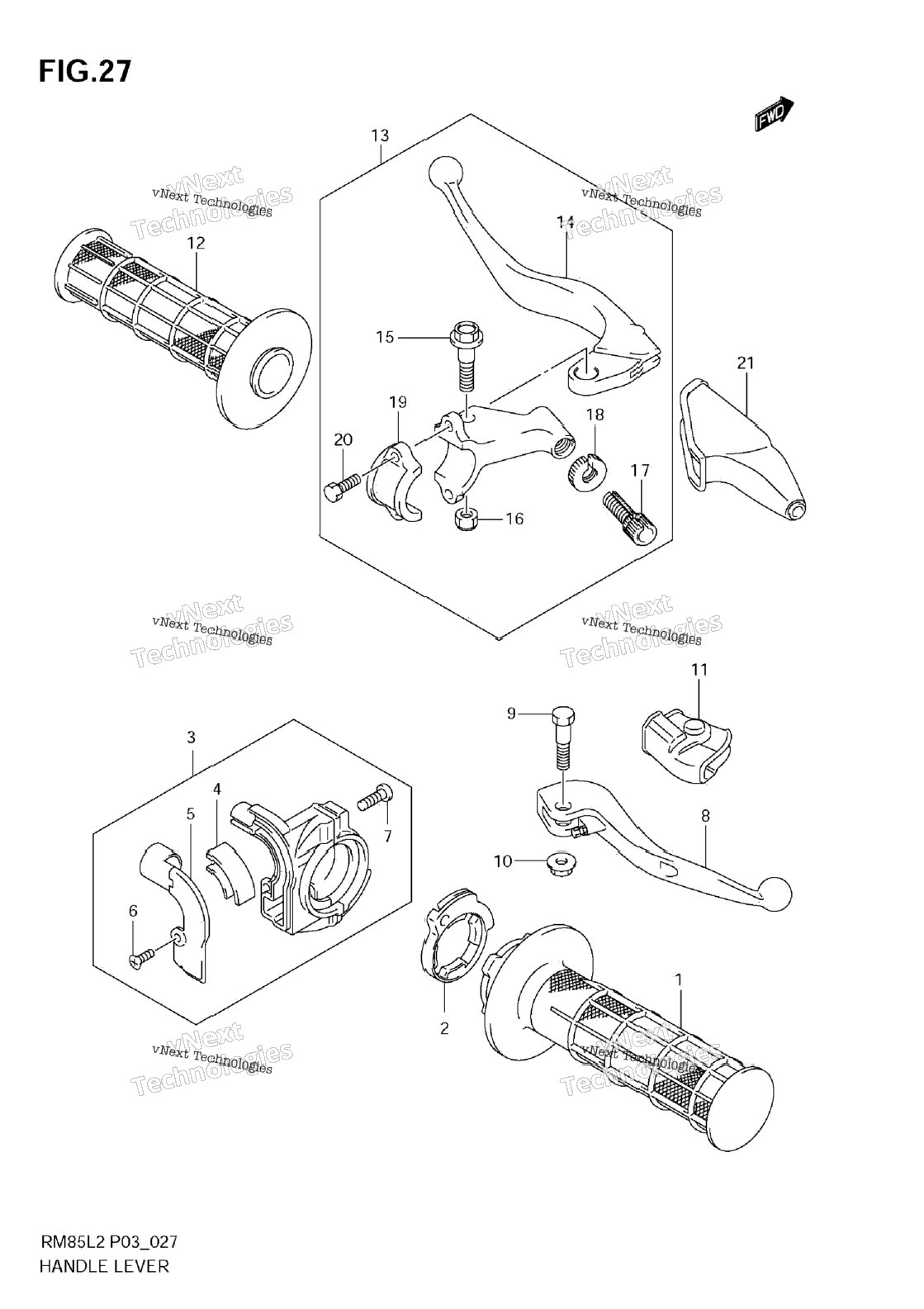

| 1 | 57110-27C00 | GRIP, THROTTLE | 1 шт. | — | |
|
| 2 | 57114-20430 | ROTER, THROTTLE | 1 шт. | — | |
|
| 3 | 57100-03D10 | CASE ASSY, THROTTLE | 1 шт. | — | |
|
| 4 | 57122-03D10 | GUIDE, PIECE | 1 шт. | — | |
|
| 5 | 57129-03D10 | COVER | 1 шт. | — | |
|
| 6 | 02132-0406B | SCREW | 1 шт. | — | |
|
| 7 | 02112-0516A | SCREW | 2 шт. | — | |
|
| 8 | 57310-37F00 | LEVER ASSY, BRAKE | 1 шт. | — | |
|
| 9 | 57431-14500 | BOLT, BRAKE LEVER | 1 шт. | — | |
|
| 10 | 08316-1006B | NUT | 1 шт. | — | |
|
| 11 | 57343-35G00 | COVER, BRAKE LEVER | 1 шт. | — | |
|
| 12 | 57211-27C00 | GRIP LH | 1 шт. | — | |
|
| 13 | 57500-28C12 | LEVER ASSY, CLUTCH | 1 шт. | — | |
|
| 14 | 57621-28C00 | LEVER, CLUTCH | 1 шт. | — | |
|
| 15 | 57431-28C01 | BOLT | 1 шт. | — | |
|
| 16 | 08319-2106A | .NUT | 1 шт. | — | |
|
| 17 | 57441-28C10 | ADJUSTER, CABLE | 1 шт. | — | |
|
| 18 | 57442-28C00 | NUT | 1 шт. | — | |
|
| 19 | 57512-28C00 | .BRACKET, CLUTCH LEVER HOLDER | 1 шт. | — | |
|
| 20 | 01500-0516B | BOLT | 2 шт. | — | |
|
| 21 | 57341-40002 | COVER, CLUTCH LEVER | 1 шт. | — | |
|
