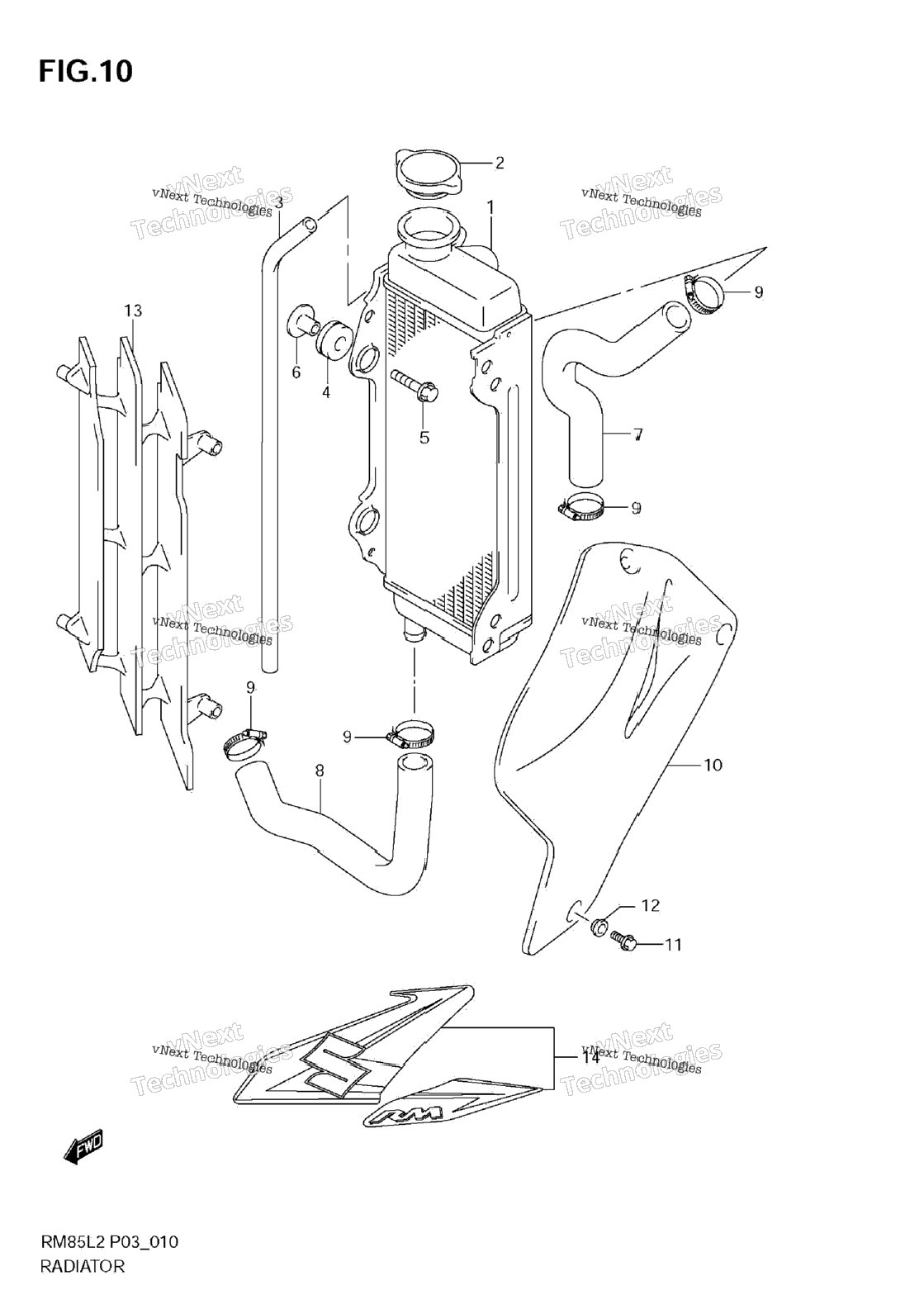

| 1 | 17710-03B00 | RADIATOR, WATER | 1 шт. | — | |
|
| 2 | 17730-12C20 | CAP, RADIATOR | 1 шт. | — | |
|
| 3 | 09351-50803-00A | HOSE (5X8X1000) L:1000->480 | 1 шт. | — | |
|
| 4 | 17787-19A00 | CUSHION RADIATOR LWR | 2 шт. | — | |
|
| 5 | 09116-06186 | BOLT (6X25) | 2 шт. | — | |
|
| 6 | 09180-06243 | SPACER (6.5X10.5X14.1) | 2 шт. | — | |
|
| 7 | 17851-03B00 | HOSE, RADIATOR INLET | 1 шт. | — | |
|
| 8 | 17852-03B00 | HOSE, RADIATOR OUTLET | 1 шт. | — | |
|
| 9 | 09402-28513 | CLAMP | 4 шт. | — | |
|
| 10 | 17762-37F10-YU1 | COVER, RADIATOR (YELLOW) | 1 шт. | — | |
|
| 11 | 09103-06233 | BOLT (6X12) | 3 шт. | — | |
|
| 12 | 09169-06053 | WASHER | 3 шт. | — | |
|
| 13 | 17831-36E00 | LOUVER, RADIATOR | 1 шт. | — | |
|
| 14 | 68670-03BK0-HBP | TAPE, RADIATOR COVER LH | 0 шт. | — | |
|
