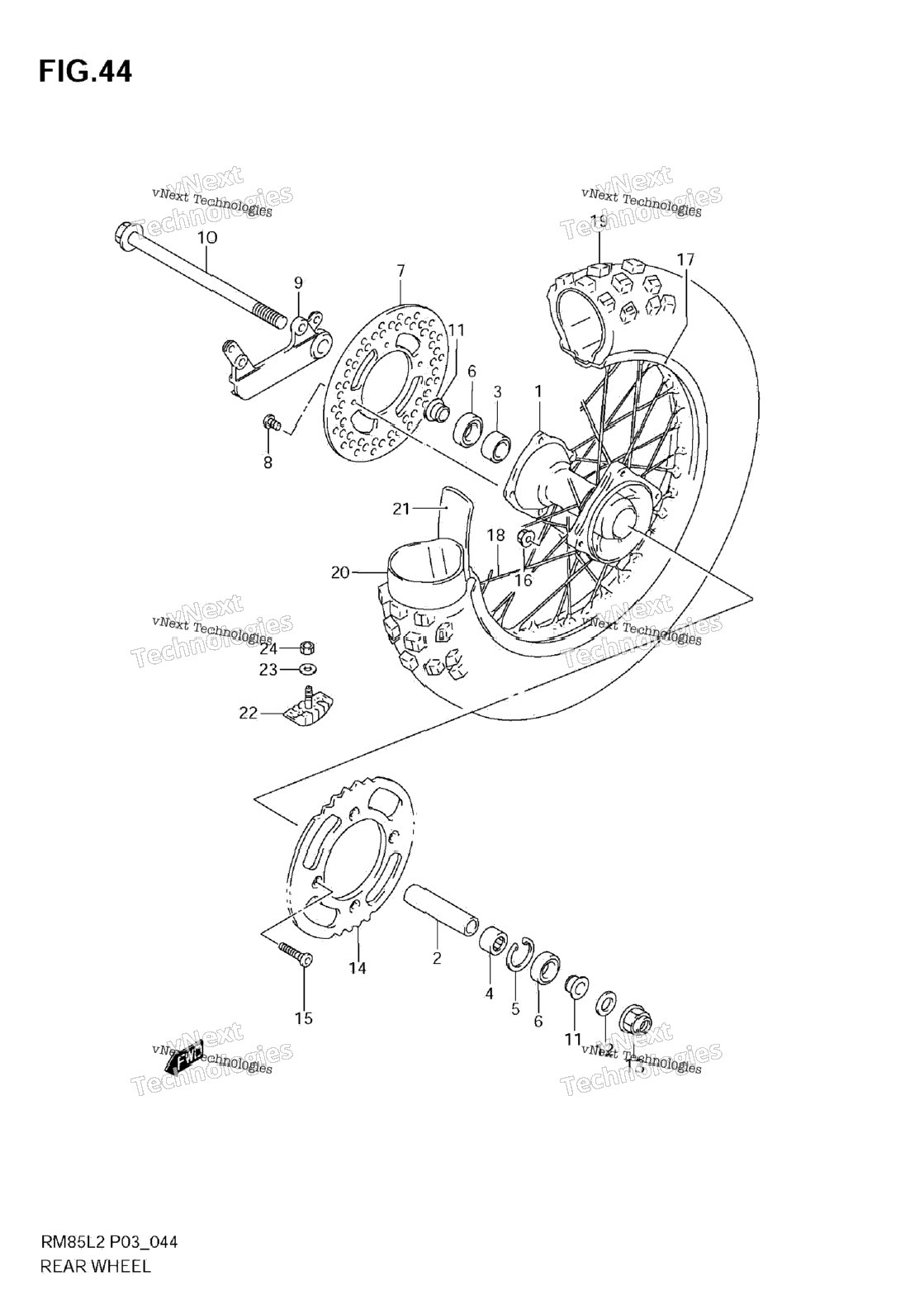

| 1 | 64111-02B43 | HUB, REAR WHEEL | 1 шт. | — | |
|
| 2 | 64731-02B40 | SPACER, REAR HUB BEARING | 1 шт. | — | |
|
| 3 | 08123-60027 | BEARING | 1 шт. | — | |
|
| 4 | 09262-15021 | BEARING (15X35X11) | 1 шт. | — | |
|
| 5 | 08331-41359 | CIRCLIP | 1 шт. | — | |
|
| 6 | 09283-20024 | OIL SEAL (20X35X7) | 2 шт. | — | |
|
| 7 | 69211-03B00 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 8 | 02122-0612B | SCREW | 4 шт. | — | |
|
| 9 | 69721-03B10 | BRACKET, REAR CALIPER | 1 шт. | — | |
|
| 10 | 64711-03B70 | AXLE, REAR | 1 шт. | — | |
|
| 11 | 64741-03B80 | SPACER, AXLE | 2 шт. | — | |
|
| 12 | 09160-14062 | WASHER (14.5X30X3.2) | 1 шт. | — | |
|
| 13 | 08319-3114A | NUT | 1 шт. | — | |
|
| 14 | 64511-03B00 | SPROCKET, REAR (NT:47) | 1 шт. | — | |
|
| 15 | 64511-03B10 | SPROCKET, REAR (NT:46) OPT | 1 шт. | — | |
|
| 16 | 64511-03B20 | SPROCKET, REAR (NT:48) OPT | 1 шт. | — | |
|
| 17 | 64511-03B30 | SPROCKET, REAR (NT:49) OPT | 1 шт. | — | |
|
| 18 | 09120-08010 | BOLT (8X30.5) | 4 шт. | — | |
|
| 19 | 09159-08067 | NUT | 4 шт. | — | |
|
| 20 | 65311-02B50 | RIM, WHEEL (1.60X14 AL WHT) | 1 шт. | — | |
|
| 21 | 65320-02B60 | SPOKE ASSY, REAR WHEEL | 1 шт. | — | |
|
| 22 | 65110-02B70 | TIRE, REAR (90/100-14 49M D737)(DUNLOP) | 0 шт. | — | |
|
| 23 | 65200-02B70 | TUBE ASSY, INNER | 1 шт. | — | |
|
| 24 | 65261-02B40 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 25 | 65270-43D00 | STOPPER, BEAD | 1 шт. | — | |
|
| 26 | 08322-0108B | WASHER | 1 шт. | — | |
|
| 27 | 08310-0008B | NUT | 1 шт. | — | |
|
