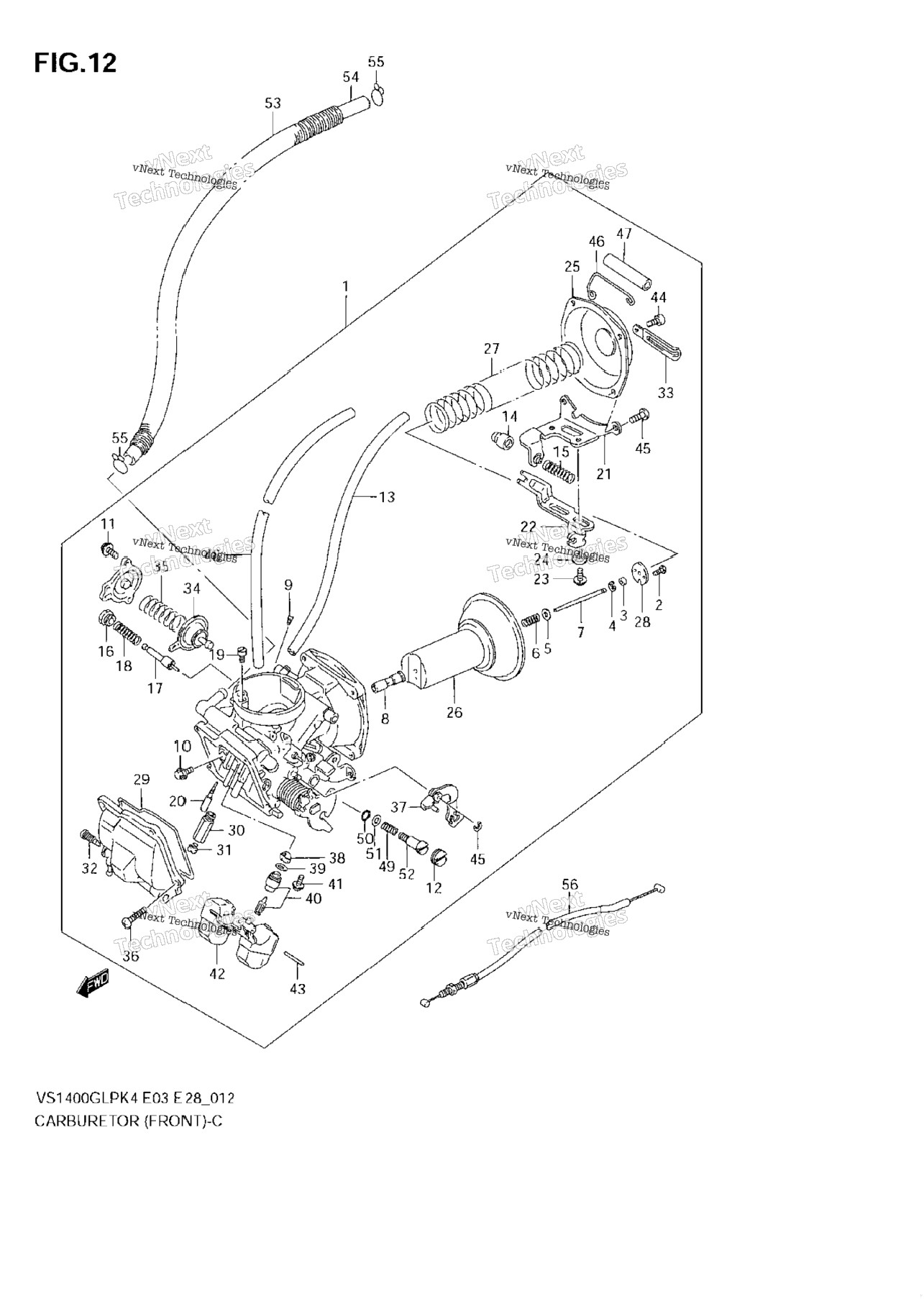

| 1 | 13210-38BF0 | CARBURETOR ASSY, FRONT MODEL K4/K5 E33 | 0 шт. | — | |
|
| 1 | 13210-38BE0 | CARBURETOR ASSY, FRONT MODEL K4/K5/K6 E3,E28 | 1 шт. | — | |
|
| 1 | 13210-38BG1 | CARBURETOR ASSY, FRONT MODEL K6/K7/K8 E33; Includes Item(s) 2 - 52 | 0 шт. | — | |
|
| 1 | 13210-38BE1 | CARBURETOR ASSY, FRONT MODEL K7/K8 E3,E28 | 1 шт. | — | |
|
| 2 | 02112-33073 | SCREW | 2 шт. | — | |
|
| 3 | 13387-47010 | RING | 1 шт. | — | |
|
| 4 | 13394-10010 | E RING | 1 шт. | — | |
|
| 5 | 13382-44030 | WASHER | 1 шт. | — | |
|
| 6 | 13388-44030 | SPRING | 1 шт. | — | |
|
| 7 | 13383-38B40 | NEEDLE, JET (5D51-1) | 1 шт. | — | |
|
| 8 | 09494-00894 | JET, NEEDLE (O-9M) | 1 шт. | — | |
|
| 9 | 09493-28006 | JET, PILOT AIR (1.4) | 1 шт. | — | |
|
| 10 | 13605-38B00 | SCREW | 1 шт. | — | |
|
| 11 | 02112-04107 | SCREW | 3 шт. | — | |
|
| 12 | 13281-05A00 | PLUG | 1 шт. | — | |
|
| 13 | 09352-50823-600 | HOSE (5X8.2X600) E3,E28 MODEL K4/K5 E33 L:600!185 | 1 шт. | — | |
|
| 13 | 13683-38BG1 | HOSE MODEL K6/K7/K8 E33 | 0 шт. | — | |
|
| 14 | 13681-04010 | CAP | 1 шт. | — | |
|
| 15 | 13417-37100 | SPRING | 1 шт. | — | |
|
| 16 | 13418-05A10 | HOLDER, GUIDE | 1 шт. | — | |
|
| 17 | 13411-05300 | PLUNGER ASSY | 1 шт. | — | |
|
| 18 | 13417-43010 | .SPRING STARTER VALVE | 1 шт. | — | |
|
| 19 | 09492-70004 | JET, PILOT AIR (70) | 1 шт. | — | |
|
| 20 | 09492-50018 | JET, PILOT (50) | 1 шт. | — | |
|
| 21 | 13628-38B00 | BRACKET | 0 шт. | — | |
|
| 22 | 13422-38B00 | LEVER | 1 шт. | — | |
|
| 23 | 13602-05A30 | SCREW | 2 шт. | — | |
|
| 24 | 13332-05A20 | WASHER | 2 шт. | — | |
|
| 25 | 13502-38A00 | COVER | 1 шт. | — | |
|
| 26 | 13500-05A10 | DIAPHRAGM ASSY | 1 шт. | — | |
|
| 27 | 13503-38B00 | SPRING | 1 шт. | — | |
|
| 28 | 13389-37400 | PLATE | 1 шт. | — | |
|
| 29 | 13251-38A00 | O RING | 1 шт. | — | |
|
| 30 | 13385-05A11 | HOLDER | 1 шт. | — | |
|
| 31 | 09491-25014 | JET, MAIN (125) | 1 шт. | — | |
|
| 32 | 13247-13A00 | .SCREW,DRAIN | 1 шт. | — | |
|
| 33 | 09404-06429 | CLAMP | 1 шт. | — | |
|
| 34 | 13480-05A10 | DIAPHRAGM ASSY | 1 шт. | — | |
|
| 35 | 13481-38B40 | SPRING | 1 шт. | — | |
|
| 36 | 13602-48B10 | SCREW | 4 шт. | — | |
|
| 37 | 13554-45C20 | LEVER ASSY | 1 шт. | — | |
|
| 38 | 13376-19F00 | FILTER | 1 шт. | — | |
|
| 39 | 13374-35C00 | O RING | 1 шт. | — | |
|
| 40 | 13370-39A00 | VALVE ASSY, NEEDLE | 1 шт. | — | |
|
| 41 | 13602-05A10 | SCREW | 1 шт. | — | |
|
| 42 | 13250-38B00 | FLOAT | 1 шт. | — | |
|
| 43 | 13254-20010 | PIN, FLOAT | 1 шт. | — | |
|
| 44 | 02112-05127 | SCREW | 4 шт. | — | |
|
| 45 | 13415-38300 | E RING | 1 шт. | — | |
|
| 46 | 13671-38A00 | CLIP | 0 шт. | — | |
|
| 47 | 09352-60103-600 | PROTECTOR (6X10X600) L:600!50 | 1 шт. | — | |
|
| 48 | 13683-38B01 | HOSE ASSY E33 | 1 шт. | — | |
|
| 49 | 13268-47070 | .SPRING | 1 шт. | — | |
|
| 50 | 13295-29900 | O RING | 1 шт. | — | |
|
| 51 | 13291-29900 | WASHER | 1 шт. | — | |
|
| 52 | 13279-47070 | SCREW | 1 шт. | — | |
|
| 53 | 44423-21F00 | SHIELD, FUEL HOSE HEAT E33 | 1 шт. | — | |
|
| 53 | 13684-38B10 | SHIELD, FUEL HOSE HEAT E3,E28 | 1 шт. | — | |
|
| 54 | 09354-65113-600 | HOSE, FUEL (6.5X11.5X600) MODEL K4/K5 L:600!550 | 1 шт. | — | |
|
| 54 | 13683-38BE0 | HOSE, FUEL MODEL K6/K7/K8 | 1 шт. | — | |
|
| 55 | 09401-11403 | CLIP (ID:11) MODEL K4/K5 MODEL K6/K7/K8 E3,E28 | 2 шт. | — | |
|
| 56 | 13641-38B02 | CABLE, ID SYNCRO MODEL K4 | 1 шт. | — | |
|
| 56 | 13641-38B03 | CABLE, ID SYNCRO MODEL K5/K6/K7/K8 | 1 шт. | — | |
|
