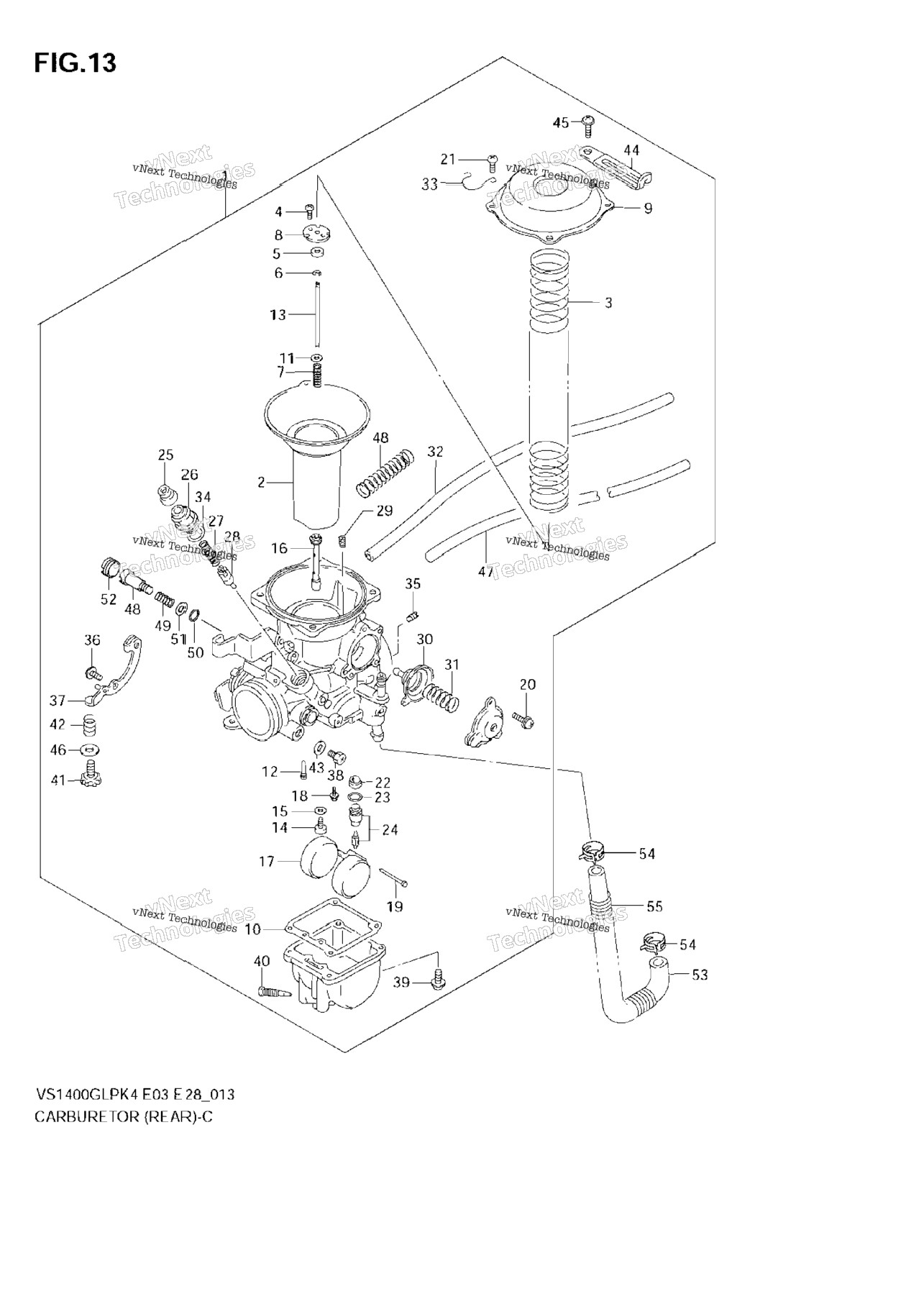

| 1 | 13220-38BF0 | CARBURETOR ASSY, REAR MODEL K4/K5 E33 | 0 шт. | — | |
|
| 1 | 13220-38BE0 | CARBURETOR ASSY, REAR MODEL K4/K5/K6 E3,E28 | 1 шт. | — | |
|
| 1 | 13220-38BG1 | CARBURETOR ASSY, REAR MODEL K6/K7/K8 E33; Includes Item(s) 2 - 52 | 0 шт. | — | |
|
| 1 | 13220-38BE1 | CARBURETOR ASSY, REAR MODEL K7/K8 E3,E28 | 1 шт. | — | |
|
| 2 | 13500-38A10 | DIAPHRAGM ASSY | 1 шт. | — | |
|
| 3 | 13503-05A10 | SPRING | 1 шт. | — | |
|
| 4 | 02112-33073 | SCREW | 2 шт. | — | |
|
| 5 | 13387-47010 | RING | 1 шт. | — | |
|
| 6 | 13394-10010 | E RING | 1 шт. | — | |
|
| 7 | 13388-44030 | SPRING | 1 шт. | — | |
|
| 8 | 13389-37400 | PLATE | 1 шт. | — | |
|
| 9 | 13502-45CE0 | COVER | 1 шт. | — | |
|
| 10 | 13251-38A10 | GASKET | 1 шт. | — | |
|
| 11 | 13382-44030 | WASHER | 1 шт. | — | |
|
| 12 | 09492-55014 | JET, PILOT (55) | 1 шт. | — | |
|
| 13 | 13383-38B00 | NEEDLE, JET (5D35-1) | 1 шт. | — | |
|
| 14 | 09491-28010 | JET, MAIN (140) | 1 шт. | — | |
|
| 15 | 13382-03110 | WASHER | 1 шт. | — | |
|
| 16 | 09494-00895 | JET, NEEDLE (P-2M) | 1 шт. | — | |
|
| 17 | 13252-23010 | FLOAT | 1 шт. | — | |
|
| 18 | 13602-05A10 | SCREW | 1 шт. | — | |
|
| 19 | 13254-92311 | PIN | 1 шт. | — | |
|
| 20 | 13602-19B50 | SCREW | 2 шт. | — | |
|
| 21 | 02112-04083 | SCREW | 3 шт. | — | |
|
| 22 | 13376-19F00 | FILTER | 1 шт. | — | |
|
| 23 | 13374-35C00 | O RING | 1 шт. | — | |
|
| 24 | 13370-39A00 | VALVE ASSY, NEEDLE | 1 шт. | — | |
|
| 25 | 13681-04010 | CAP | 1 шт. | — | |
|
| 26 | 13418-43410 | HOLDER, GUIDE | 1 шт. | — | |
|
| 27 | 13417-22010 | SPRING | 1 шт. | — | |
|
| 28 | 13411-01400 | PLUNGER ASSY | 1 шт. | — | |
|
| 29 | 09493-31001 | JET, PILOT AIR (1.55) | 1 шт. | — | |
|
| 30 | 13480-05A10 | DIAPHRAGM ASSY | 1 шт. | — | |
|
| 31 | 13481-38B40 | SPRING | 1 шт. | — | |
|
| 32 | 09352-50823-600 | HOSE L:600!175 | 1 шт. | — | |
|
| 33 | 13692-02500 | CLIP | 1 шт. | — | |
|
| 34 | 13278-47090 | O RING | 1 шт. | — | |
|
| 35 | 09492-40018 | JET, PILOT AIR (40) | 1 шт. | — | |
|
| 36 | 13602-05A30 | SCREW | 1 шт. | — | |
|
| 37 | 13554-45C20 | LEVER ASSY | 1 шт. | — | |
|
| 38 | 13605-73000 | SCREW | 1 шт. | — | |
|
| 39 | 13601-04148 | SCREW | 4 шт. | — | |
|
| 40 | 13247-13A00 | .SCREW,DRAIN | 1 шт. | — | |
|
| 41 | 13267-39E50 | ADJUSTER | 1 шт. | — | |
|
| 42 | 13271-93011 | SPRING | 1 шт. | — | |
|
| 43 | 13249-78100 | WASHER | 1 шт. | — | |
|
| 44 | 09404-06433 | CLAMP | 1 шт. | — | — |
|
| 45 | 02142-04083 | SCREW | 1 шт. | — | |
|
| 46 | 13277-37100 | WASHER | 1 шт. | — | |
|
| 47 | 13683-38B01 | HOSE ASSY E33 L:430!150 | 1 шт. | — | |
|
| 48 | 13279-47070 | PILOT (1,1/16) | 1 шт. | — | |
|
| 49 | 13268-47070 | .SPRING | 1 шт. | — | |
|
| 50 | 13295-29900 | O RING | 1 шт. | — | |
|
| 51 | 13291-29900 | WASHER | 1 шт. | — | |
|
| 52 | 13281-05A00 | PLUG | 1 шт. | — | |
|
| 53 | 15801-38B01 | HOSE, FUEL (PUMP & CARB) | 1 шт. | — | |
|
| 54 | 09401-11415 | CLIP | 2 шт. | — | |
|
| 55 | 09440-14030 | SPRING | 1 шт. | — | |
|
