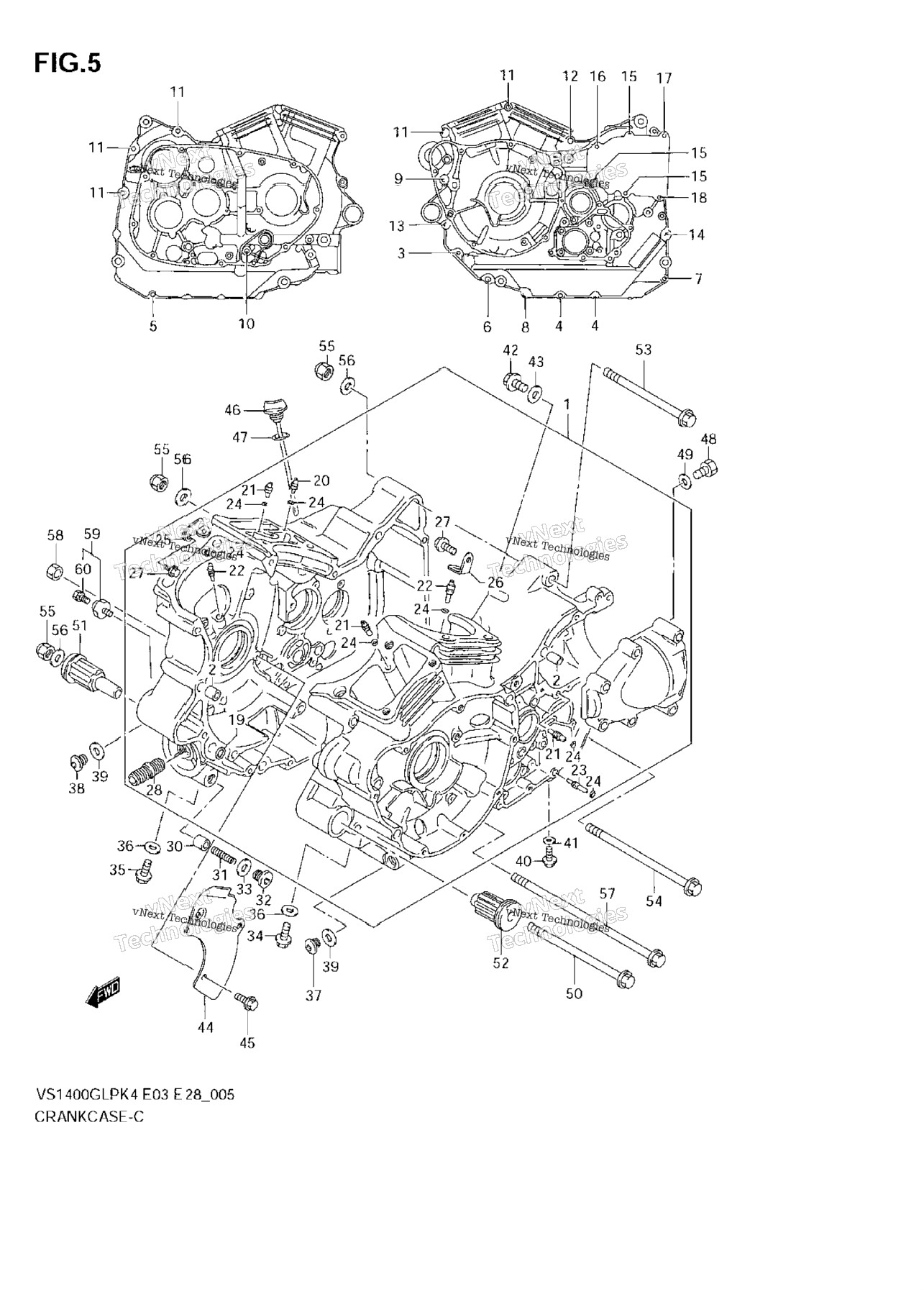

| 1 | 11301-38840 | CRANKCASE SET Includes Item(s) 2 - 29 | 0 шт. | — | |
|
| 2 | 09206-11007 | PIN | 4 шт. | — | |
|
| 3 | 01550-06557 | BOLT | 1 шт. | — | |
|
| 4 | 01550-06657 | BOLT | 2 шт. | — | |
|
| 5 | 01550-06857 | BOLT | 1 шт. | — | |
|
| 9 | 01550-08907 | BOLT | 1 шт. | — | |
|
| 10 | 09103-08098 | BOLT (8X115) | 1 шт. | — | |
|
| 11 | 09103-08164 | BOLT (8X95) | 5 шт. | — | |
|
| 12 | 09103-08214 | BOLT (8X50) | 0 шт. | — | |
|
| 13 | 09103-08215 | BOLT | 0 шт. | — | |
|
| 13 | 09103-08215 | BOLT (8X70) | 0 шт. | — | |
|
| 14 | 09103-08216 | BOLT (8X80) | 0 шт. | — | |
|
| 15 | 01550-08407 | BOLT | 3 шт. | — | |
|
| 16 | 01550-08507 | BOLT | 1 шт. | — | |
|
| 17 | 01550-08557 | BOLT | 1 шт. | — | |
|
| 17 | 01550-08557 | BOLT | 1 шт. | — | |
|
| 18 | 01550-08657 | BOLT | 1 шт. | — | |
|
| 18 | 01550-08657 | BOLT | 1 шт. | — | |
|
| 19 | 09280-12009 | O RING (D:1.9,ID:12.6) | 1 шт. | — | |
|
| 20 | 09493-44002 | JET, HEAD COOLING | 0 шт. | — | |
|
| 21 | 09493-28010 | JET AIR (#14) | 3 шт. | — | |
|
| 22 | 09493-80009 | JET, PISTON COOLING | 2 шт. | — | |
|
| 23 | 09493-24011 | JET, MISSION | 0 шт. | — | |
|
| 24 | 09280-04004 | O RING (D:1.2,ID:4) | 7 шт. | — | |
|
| 25 | 16438-38B00 | PLATE, PISTON JET, FRONT | 0 шт. | — | |
|
| 26 | 16439-38B00 | PLATE, PISTON JET, REAR | 1 шт. | — | |
|
| 27 | 09106-06075 | BOLT (6X12) | 2 шт. | — | |
|
| 28 | 16591-06B00 | UNION, OIL FILTER STAND | 1 шт. | — | |
|
| 29 | 12228-38B00-0A0 | BEARING, CRANK THRUST (T:1.925) SEE ILLUSTRATION ON FIG.7 (B-14) | 0 шт. | — | |
|
| 29 | 12228-38B00-0B0 | BEARING, CRANK THRUST (T:1.950) | 0 шт. | — | |
|
| 29 | 12228-38B00-0C0 | BEARING, CRANK THRUST (T:1.975) | 0 шт. | — | |
|
| 29 | 12228-38B00-0D0 | BEARING, CRANK THRUST (T:2.000) | 0 шт. | — | |
|
| 29 | 12228-38B00-0E0 | BEARING, CRANK THRUST (T:2.025) | 0 шт. | — | |
|
| 29 | 12228-38B00-0F0 | BEARING, CRANK THRUST (T:2.050) | 0 шт. | — | |
|
| 29 | 12228-38B00-0G0 | BEARING, CRANK THRUST (T:2.075) | 0 шт. | — | |
|
| 29 | 12228-38B00-0H0 | BEARING, CRANK THRUST (T:2.100) | 0 шт. | — | |
|
| 29 | 12228-38B00-0I0 | BEARING, CRANK THRUST (T:2.125) | 0 шт. | — | |
|
| 29 | 12228-38B00-0J0 | BEARING, CRANK THRUST (T:2.150) | 0 шт. | — | |
|
| 30 | 16442-34301 | PLUNGER, OIL CONTROL | 1 шт. | — | |
|
| 31 | 09440-09030 | SPRING | 0 шт. | — | |
|
| 32 | 09248-16012 | PLUG, CONTROL PLUNGER | 1 шт. | — | |
|
| 33 | 09168-16002 | GASKET | 1 шт. | — | |
|
| 35 | 01550-0812A | PLUG | 1 шт. | — | |
|
| 35 | 01550-0812A | PLUG, OIL GALLERY | 3 шт. | — | |
|
| 36 | 09168-08029 | GASKET MODEL K4 | 3 шт. | — | |
|
| 36 | 09168-08016 | GASKET MODEL K5/K6/K7/K8 | 4 шт. | — | |
|
| 37 | 09248-14005 | PLUG, MAIN GALLERY | 1 шт. | — | |
|
| 38 | 09247-14027 | PLUG, MAIN GALLERY NO.2 | 1 шт. | — | |
|
| 39 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 2 шт. | — | |
|
| 40 | 01550-0610A | PLUG, MISSION GALLERY | 1 шт. | — | |
|
| 41 | 09168-06023 | GASKET (5.8X13X1.2) | 1 шт. | — | |
|
| 42 | 09247-12006 | PLUG, MAIN GALLERY END | 1 шт. | — | |
|
| 44 | 11521-38B01 | PLATE, OIL SEPARATOR | 0 шт. | — | |
|
| 45 | 01547-06123 | BOLT MODEL K4 | 3 шт. | — | |
|
| 45 | 09103-06236 | BOLT MODEL K5/K6/K7/K8 | 3 шт. | — | |
|
| 46 | 11970-38B10 | GAUGE, OIL LEVEL | 1 шт. | — | |
|
| 47 | 09280-17003 | O-RING (D:3.1,ID:16.8) | 1 шт. | — | |
|
| 48 | 09247-12106 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 49 | 09168-12002 | GASKET | 1 шт. | — | |
|
| 49 | 09168-12002 | GASKET | 1 шт. | — | |
|
| 50 | 09103-10169 | BOLT (10X155) | 1 шт. | — | |
|
| 51 | 11660-38B00 | BUSH, RH | 1 шт. | — | |
|
| 52 | 11660-38A00 | BUSH, LH | 1 шт. | — | |
|
| 53 | 09103-10168 | BOLT (10X135) | 0 шт. | — | |
|
| 54 | 09103-10170 | BOLT (10X180) | 0 шт. | — | |
|
| 55 | 09159-10064 | NUT | 3 шт. | — | |
|
| 56 | 08322-0110B | WASHER | 3 шт. | — | |
|
| 57 | 09103-10205 | BOLT (10X225) | 1 шт. | — | |
|
| 58 | 09159-10047 | NUT | 1 шт. | — | |
|
| 59 | 37820-33D10 | SWITCH, OIL PRESSURE Includes Item(s) 60 | 1 шт. | — | |
|
| 60 | 37822-33D00 | .BOLT,OIL PRESSURE SWITCH | 1 шт. | — | |
|
