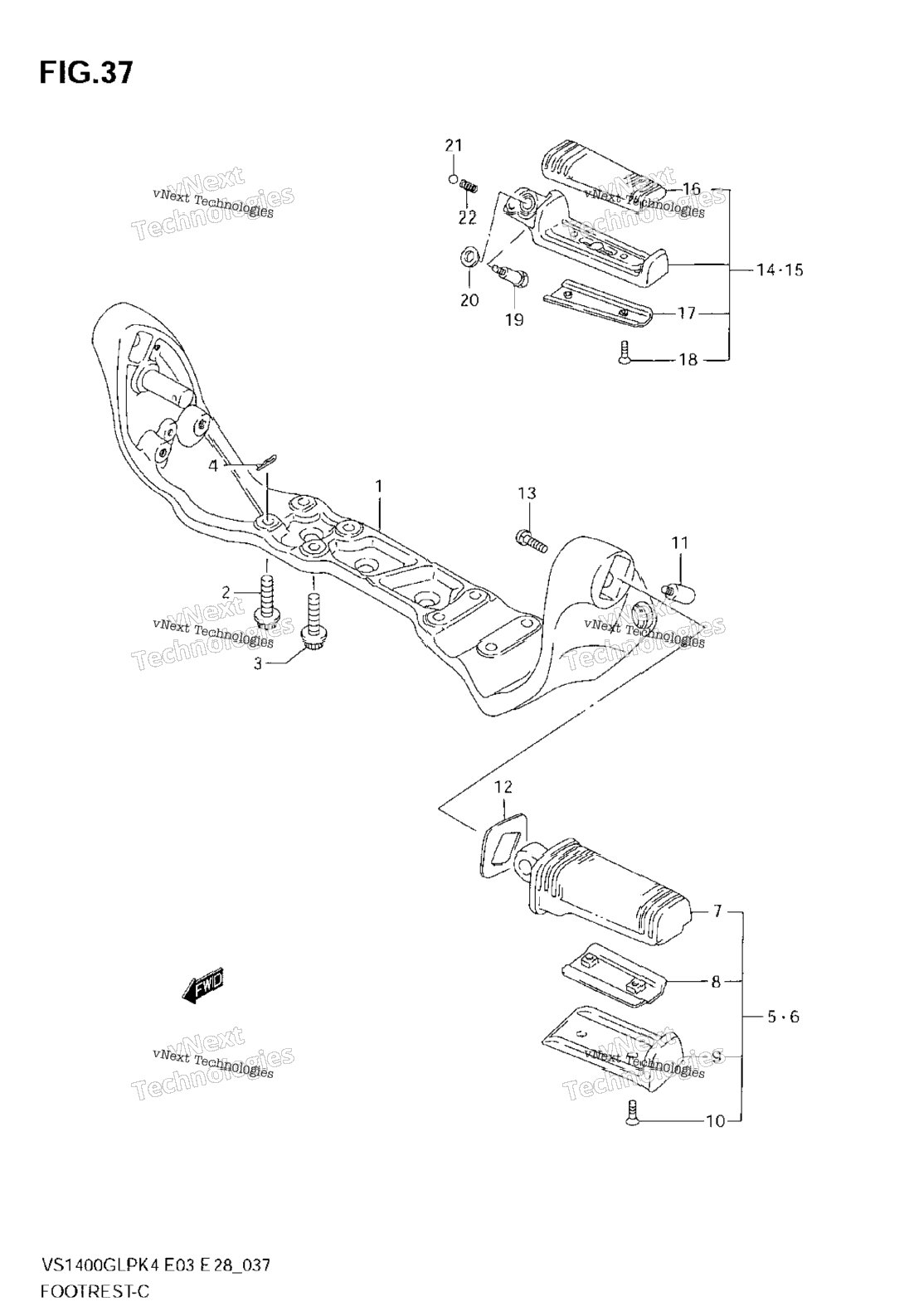

| 1 | 43510-39B20 | BRACKET, FRONT FOOTREST | 0 шт. | — | |
|
| 2 | 09106-08064 | BOLT, OUTER | 4 шт. | — | |
|
| 3 | 07120-0820B | BOLT | 4 шт. | — | |
|
| 4 | 09385-08005 | PIN | 4 шт. | — | |
|
| 5 | 43501-38B11 | FOOTREST ASSY, FRONT RH | 1 шт. | — | |
|
| 6 | 43502-38B11 | FOOTREST ASSY, FRONT LH Includes Item(s) 7 - 10 | 1 шт. | — | |
|
| 7 | 43551-38B00 | RUBBER | 2 шт. | — | |
|
| 8 | 43580-38B10 | PLATE, RUBBER | 2 шт. | — | |
|
| 9 | 43585-38B11 | COVER, FRONT FOOTREST | 2 шт. | — | |
|
| 10 | 09127-05018 | SCREW | 4 шт. | — | |
|
| 11 | 09106-06101 | BOLT, RUBBER | 2 шт. | — | |
|
| 12 | 43546-38B01 | WASHER, FRONT FOOTREST | 2 шт. | — | |
|
| 13 | 02112-3512B | SCREW, RUBBER STOPPER | 2 шт. | — | |
|
| 14 | 43600-38E00 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 15 | 43700-38E00 | FOOTREST ASSY, PILLION LH Includes Item(s) 16 - 18 | 1 шт. | — | |
|
| 16 | 43612-38A00 | RUBBER, PILLION FOOTREST | 2 шт. | — | |
|
| 17 | 43632-38A00 | PLATE, RUBBER STOPPER | 2 шт. | — | |
|
| 18 | 09127-05017 | SCREW | 4 шт. | — | |
|
| 19 | 09111-06050 | BOLT | 2 шт. | — | |
|
| 20 | 08221-08164 | SHIM | 4 шт. | — | |
|
| 21 | 06111-07004 | BALL | 2 шт. | — | |
|
| 22 | 09440-05005 | SPRING | 2 шт. | — | |
|
