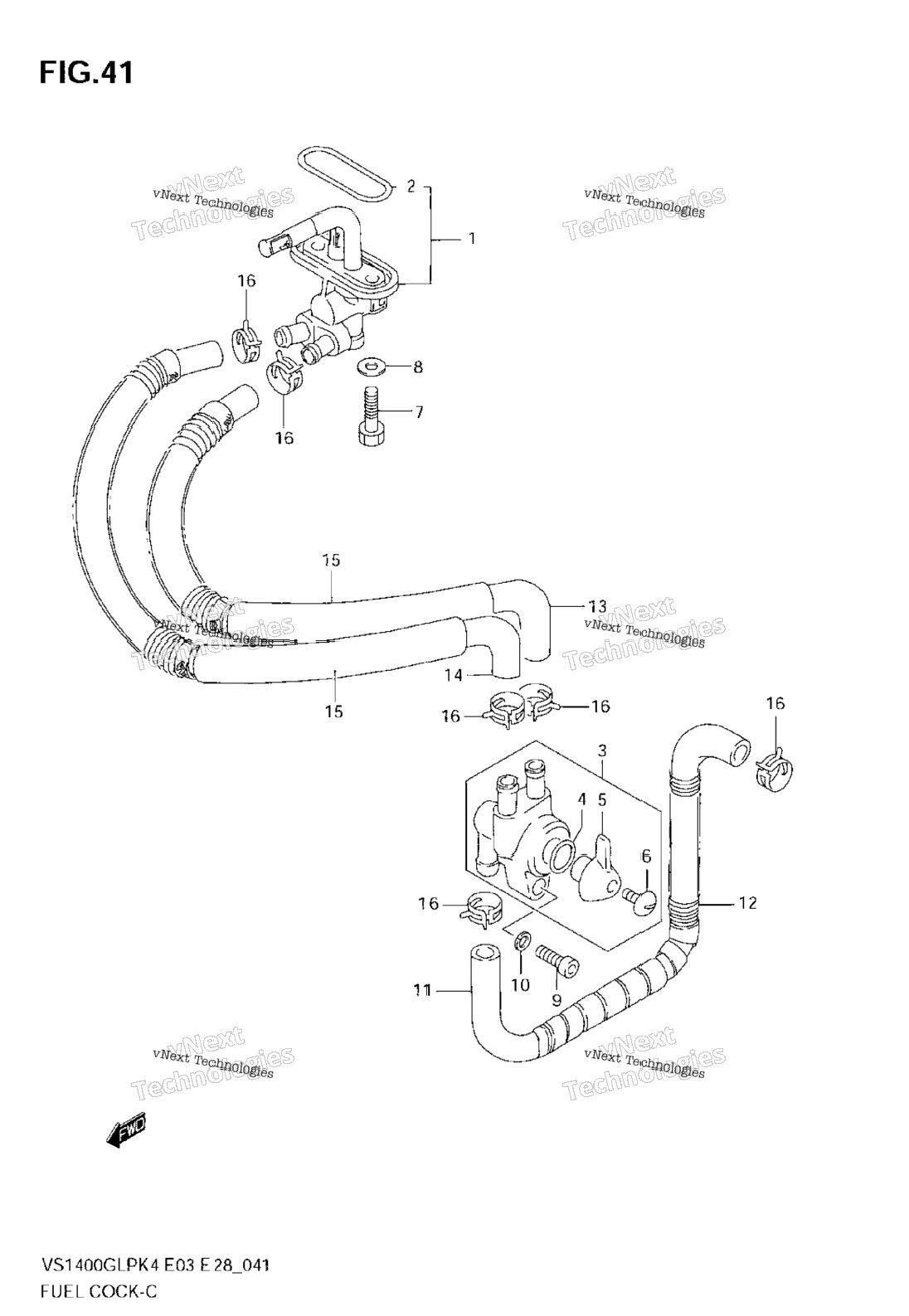

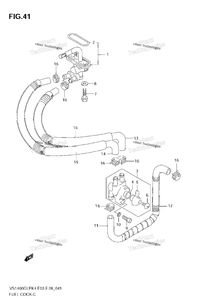

| 1 | 44300-38B02 | COCK ASSY, FUEL NO.1 Includes Item(s) 2 | 1 шт. | — | |
|
| 2 | 44348-28070 | O RING, JOINT | 1 шт. | — | |
|
| 3 | 44300-38B13 | COCK ASSY, FUEL NO.2 Includes Item(s) 4 - 6 | 1 шт. | — | |
|
| 4 | 44353-12C01 | O RING, LEVER | 1 шт. | — | |
|
| 5 | 44306-38A00 | LEVER | 1 шт. | — | |
|
| 6 | 44307-38A00 | SCREW | 1 шт. | — | |
|
| 7 | 09128-06006 | BOLT | 2 шт. | — | |
|
| 8 | 09168-06026 | GASKET | 2 шт. | — | |
|
| 9 | 07130-0512B | BOLT, FUEL COCK NO.2 | 1 шт. | — | |
|
| 10 | 08321-0105B | LOCK WASHER | 1 шт. | — | |
|
| 11 | 44420-38B01 | HOSE, FUEL PUMP & COCK MODEL K4/K5/K6/K7 | 1 шт. | — | |
|
| 11 | 44420-38BA0 | HOSE, FUEL PUMP & COCK MODEL K8 | 1 шт. | — | |
|
| 12 | 09440-14026 | SPRING | 1 шт. | — | |
|
| 13 | 44430-38B03 | HOSE, FUEL NO.1 MODEL K4/K5/K6/K7 | 1 шт. | — | |
|
| 13 | 44430-38BA0 | HOSE, FUEL NO.1 MODEL K8 | 0 шт. | — | |
|
| 14 | 44430-38B12 | HOSE, FUEL NO.2 MODEL K4/K5/K6/K7 | 1 шт. | — | |
|
| 14 | 44430-38BB0 | HOSE, FUEL NO.2 MODEL K8 | 0 шт. | — | |
|
| 15 | 44311-17E01 | TUBE, FUEL HOSE E28 | 2 шт. | — | |
|
| 15 | 44423-44B00 | TUBE, FUEL HOSE E3,E33 | 2 шт. | — | |
|
| 16 | 09401-11415 | CLIP, FUEL HOSE | 6 шт. | — | |
|
