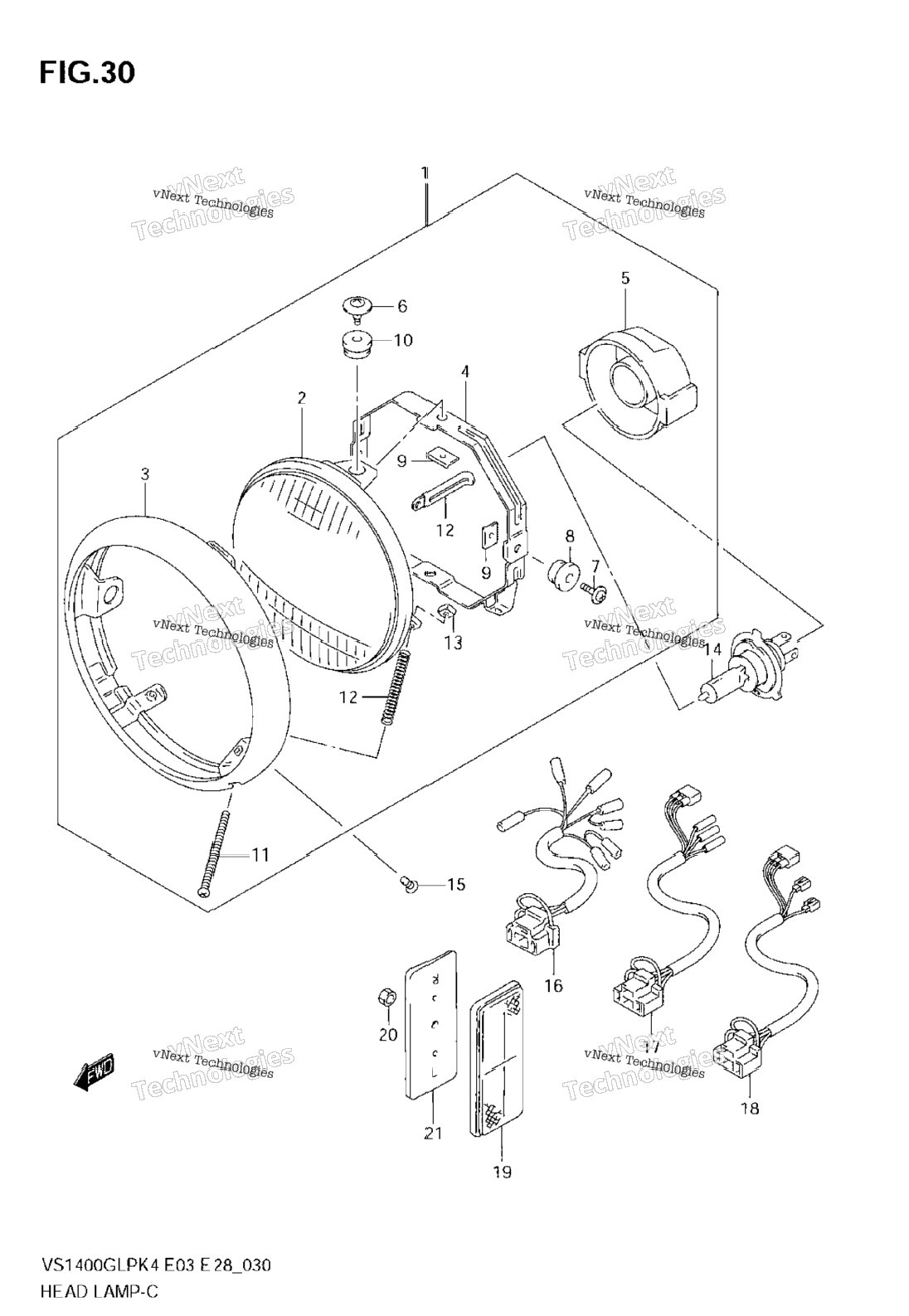

| 1 | 35100-38B60-999 | HEADLAMP ASSY Includes Item(s) 2 - 13 | 0 шт. | — | |
|
| 2 | 35121-38A60 | UNIT, LAMP | 1 шт. | — | |
|
| 3 | 35111-38A60 | RIM | 1 шт. | — | |
|
| 4 | 35130-38A00 | RING, MOUNTING | 1 шт. | — | |
|
| 5 | 35173-13E10 | COVER, SOCKET | 1 шт. | — | |
|
| 6 | 35136-38A60 | SCREW | 0 шт. | — | |
|
| 7 | 35136-38A00 | .SCREW MOUNTING | 2 шт. | — | |
|
| 8 | 35139-45230 | CUSHION | 2 шт. | — | |
|
| 9 | 35155-38A60 | NUT | 4 шт. | — | |
|
| 10 | 35139-38A60 | ...CUSHION | 2 шт. | — | |
|
| 11 | 35151-38A00 | SCREW, ADJUST | 2 шт. | — | |
|
| 12 | 35154-31300 | SPRING | 2 шт. | — | |
|
| 13 | 35152-45600 | NUT | 2 шт. | — | |
|
| 14 | 09471-12185 | BULB (12V60/55W H4) | 1 шт. | — | |
|
| 15 | 09126-05003 | SCREW, HEADLAMP (5X12) | 2 шт. | — | |
|
| 16 | 36853-38B10 | WIRE, HEADLAMP LEAD MODEL K4/K5 | 1 шт. | — | |
|
| 17 | 36853-38B20 | WIRE, HEADLAMP LEAD MODEL K6 | 0 шт. | — | |
|
| 18 | 36853-38B30 | WIRE, HEADLAMP LEAD MODEL K7/K8 | 0 шт. | — | |
|
| 19 | 35950-43431 | REFLEX REFLECTOR, FRONT SIDE | 2 шт. | — | |
|
| 20 | 08310-0005B | NUT | 2 шт. | — | |
|
| 21 | 35954-38B00 | SPACER | 0 шт. | — | |
|
