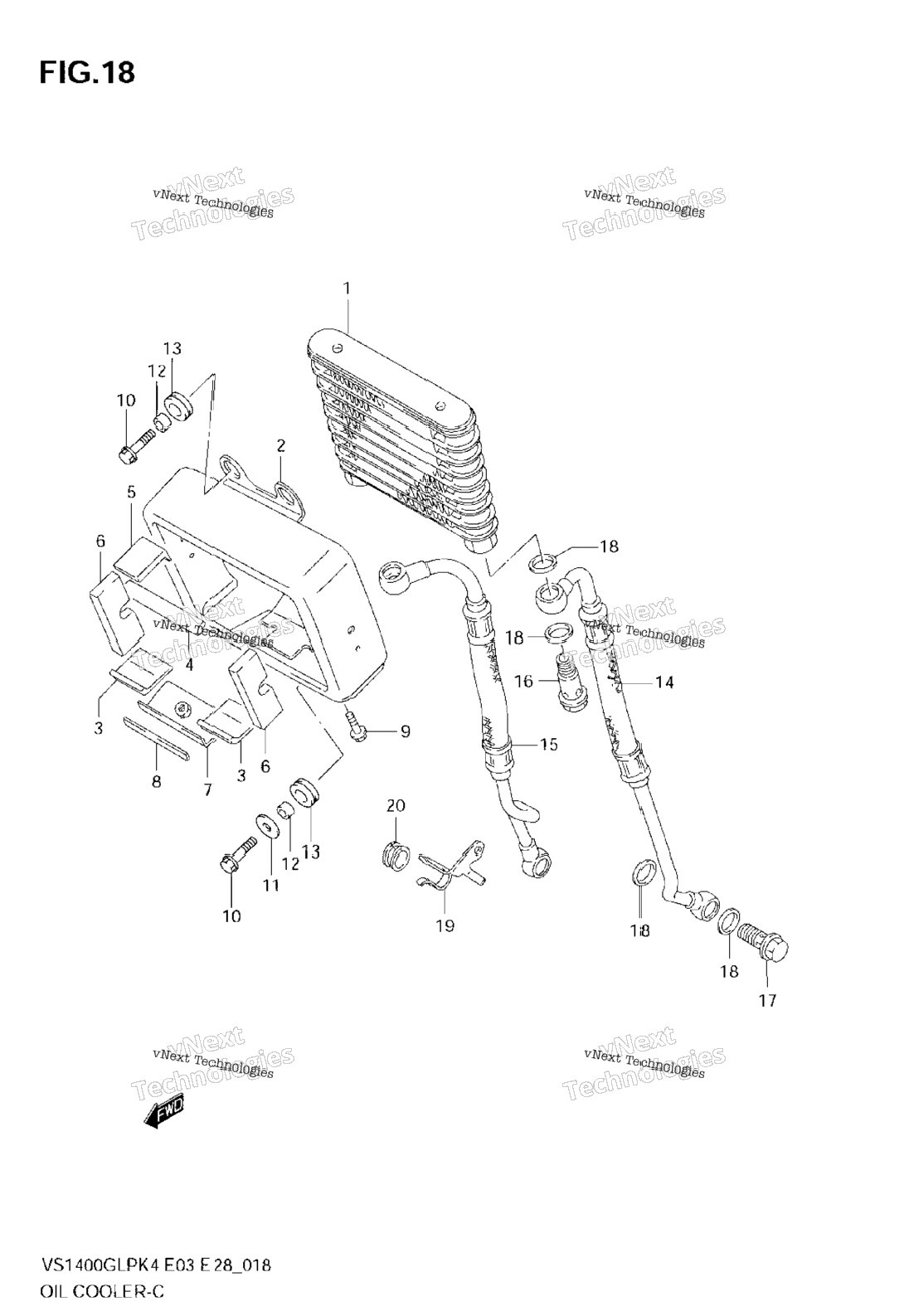

| 1 | 16600-38B00 | COOLER ASSY, OIL | 1 шт. | — | |
|
| 2 | 16620-38B01 | COVER, OIL COOLER | 0 шт. | — | |
|
| 3 | 16626-38B01 | CUSHION, LOWER | 0 шт. | — | |
|
| 4 | 16627-38B01 | CUSHION, UPPER | 0 шт. | — | |
|
| 5 | 16628-38B00 | CUSHION, UPPER | 0 шт. | — | |
|
| 6 | 16629-38B01 | CUSHION, SIDE | 2 шт. | — | |
|
| 7 | 16630-38B00 | BRACKET | 0 шт. | — | |
|
| 8 | 16639-38B00 | CUSHION | 0 шт. | — | |
|
| 9 | 01547-0610B | BOLT (GREEN) | 1 шт. | — | |
|
| 10 | 01547-0625B | BOLT (GREEN) | 4 шт. | — | |
|
| 11 | 09160-06066 | WASHER (6.5X20X1.6) | 2 шт. | — | |
|
| 12 | 09180-06310 | SPACER (6.5X10X10) | 4 шт. | — | |
|
| 13 | 09320-10015 | CUSHION | 4 шт. | — | |
|
| 14 | 16460-38B01 | HOSE, OIL COOLER LH | 1 шт. | — | |
|
| 15 | 16470-38B01 | HOSE, OIL COOLER RH | 1 шт. | — | |
|
| 16 | 09360-12006 | UNION BOLT (12X28.5) MODEL K4 | 2 шт. | — | |
|
| 16 | 09360-12014 | UNION BOLT (12X28.5) MODEL K5/K6/K7/K8 | 0 шт. | — | |
|
| 17 | 09360-14009 | UNION BOLT (14X27) | 2 шт. | — | |
|
| 18 | 09168-14011 | GASKET (14X20X1.5) MODEL K4 | 8 шт. | — | |
|
| 18 | 09168-14015 | GASKET MODEL K5/K6/K7/K8 | 8 шт. | — | |
|
| 19 | 16479-38B00 | CLAMP, OIL COOLER HOSE RH | 0 шт. | — | |
|
| 20 | 09320-10008 | CUSHION | 1 шт. | — | |
|
