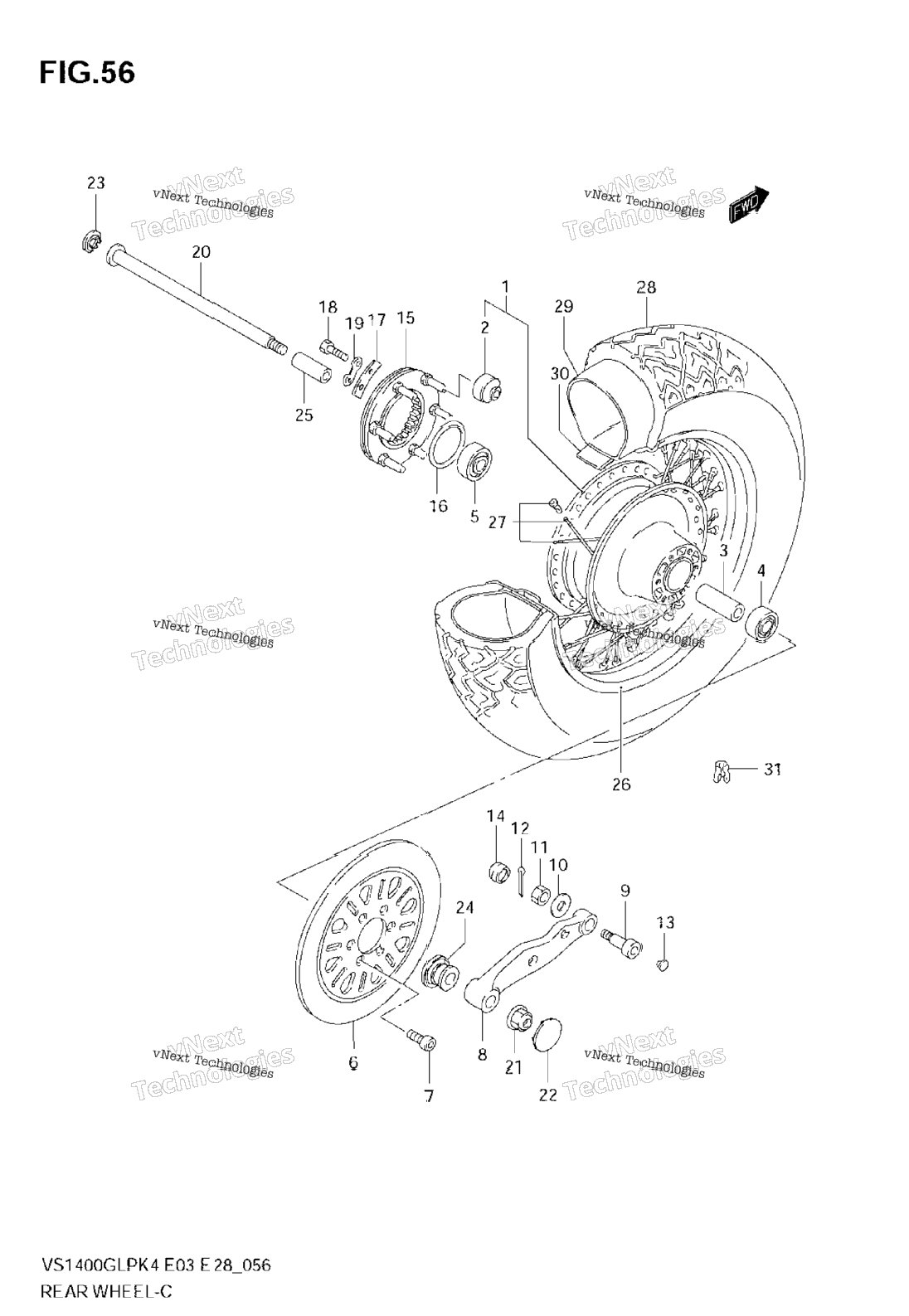

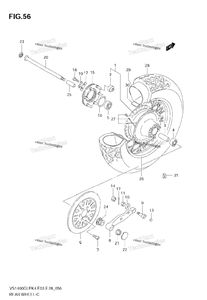

| 1 | 64100-38850 | HUB SET, REAR Includes Item(s) 2 | 0 шт. | — | |
|
| 2 | 09319-12029 | BUSHING (12X41X30) | 0 шт. | — | |
|
| 3 | 09180-17092 | SPACER, REAR HUB BEARING (17.5X25X113) | 1 шт. | — | |
|
| 4 | 08123-63037 | BEARING, RH | 1 шт. | — | |
|
| 5 | 08143-63037 | BEARING, LH | 1 шт. | — | |
|
| 6 | 69211-38B00 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 7 | 09106-08125 | BOLT (8X33) | 6 шт. | — | |
|
| 8 | 69721-38B00 | BRACKET, CALIPER | 1 шт. | — | |
|
| 9 | 64241-38B01 | PIN BRACKET | 1 шт. | — | |
|
| 10 | 09160-12061 | WASHER | 1 шт. | — | |
|
| 11 | 09159-12026 | NUT | 1 шт. | — | |
|
| 12 | 04111-20208 | COTTER PIN | 1 шт. | — | |
|
| 13 | 09250-08012 | CAP, PIN | 1 шт. | — | |
|
| 14 | 09251-16001 | CAP, NUT | 1 шт. | — | |
|
| 15 | 64680-24A00 | JOINT, HUB DRIVEN | 1 шт. | — | |
|
| 16 | 09280-65003 | O RING (ID:65,D:2.10) | 1 шт. | — | |
|
| 17 | 64677-45110 | WASHER, THRUST | 3 шт. | — | |
|
| 18 | 09119-06049 | BOLT (6X16) | 6 шт. | — | |
|
| 19 | 09169-06030 | WASHER | 3 шт. | — | |
|
| 20 | 64711-38B01 | AXLE, REAR | 0 шт. | — | |
|
| 21 | 08319-3114A | NUT | 1 шт. | — | |
|
| 22 | 64791-38B00 | CAP, RH RH | 1 шт. | — | |
|
| 23 | 64792-38B00 | CAP, LH LH | 1 шт. | — | |
|
| 24 | 64740-38B00 | SPACER, RH | 1 шт. | — | |
|
| 25 | 09180-17088 | SPACER, LH (17.3X25X79.50) | 1 шт. | — | |
|
| 26 | 65311-38B04 | RIM, WHEEL (MT4.00X15) | 1 шт. | — | |
|
| 27 | 65320-38B00 | SPOKE SET, REAR WHEEL | 1 шт. | — | |
|
| 28 | 65110-38B20 | TIRE, RR (170/80-15M/C 77H) | 0 шт. | — | |
|
| 29 | 65200-38B20 | TUBE ASSY, WHEEL INNER | 0 шт. | — | |
|
| 30 | 65261-38B20 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 31 | 55412-38A00 | BALANCER (20G) MODEL K4 | 1 шт. | — | |
|
| 32 | 55413-38A00 | BALANCER (30G) MODEL K4 | 1 шт. | — | |
|
| 33 | 55412-41F00 | BALANCER, NO.2 MODEL K5 | 1 шт. | — | |
|
| 34 | 55413-41F00 | BALANCER WHEEL (30G) MODEL K5/K6/K7/K8 | 1 шт. | — | |
|
| 35 | 55411-26G00 | BALANCER WHEEL (15G) MODEL K6/K7/K8 | 1 шт. | — | |
|
