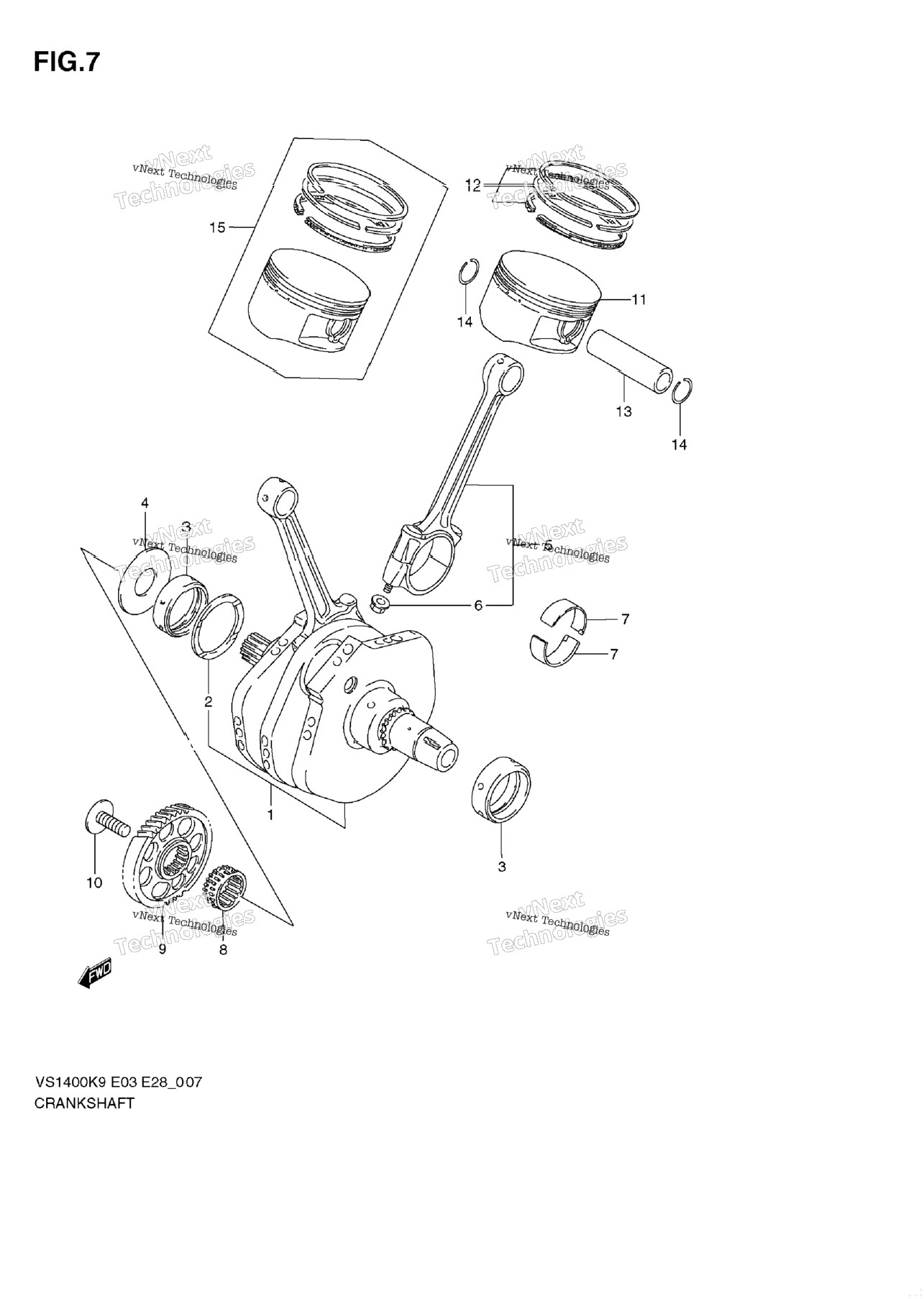

| 1 | 12000-38840 | CRANKSHAFT SET Includes Item(s) 2 - 2 | 0 шт. | — | |
|
| 2 | 12228-38B00-0A0 | BEARING, CRANK THRUST (T:1.925) | 0 шт. | — | |
|
| 2 | 12228-38B00-0B0 | BEARING, CRANK THRUST (T:1.950) | 0 шт. | — | |
|
| 2 | 12228-38B00-0C0 | BEARING, CRANK THRUST (T:1.975) | 0 шт. | — | |
|
| 2 | 12228-38B00-0D0 | BEARING, CRANK THRUST (T:2000) | 0 шт. | — | |
|
| 2 | 12228-38B00-0E0 | BEARING, CRANK THRUST (T:2.025) | 0 шт. | — | |
|
| 2 | 12228-38B00-0F0 | BEARING, CRANK THRUST (T:2.050) | 0 шт. | — | |
|
| 2 | 12228-38B00-0G0 | BEARING, CRANK THRUST (T:2.075) | 0 шт. | — | |
|
| 2 | 12228-38B00-0H0 | BEARING, CRANK THRUST (T:2.100) | 0 шт. | — | |
|
| 2 | 12228-38B00-0I0 | BEARING, CRANK THRUST (T:2.125) | 0 шт. | — | |
|
| 2 | 12228-38B00-0J0 | BEARING, CRANK THRUST (T:2.150) | 0 шт. | — | |
|
| 3 | 12229-38B00 | BEARING, CRANKSHAFT INC CRANKCASE SET | 2 шт. | — | |
|
| 4 | 12652-38B00 | WASHER,CRANK THRUST | 0 шт. | — | |
|
| 5 | 12160-38B00 | ROD ASSY, CONNECTING Includes Item(s) 6 | 0 шт. | — | |
|
| 6 | 09159-09001 | NUT | 4 шт. | — | |
|
| 7 | 12164-38B01-0B0 | BEARING, CRANK PIN (BLACK) | 4 шт. | — | |
|
| 7 | 12164-38B01-0E0 | BEARING, CRANK PIN (BLUE) | 0 шт. | — | |
|
| 7 | 12164-38B01-0C0 | BEARING, CRANK PIN (BROWN) | 4 шт. | — | |
|
| 7 | 12164-38B01-0A0 | BEARING, CRANK PIN (GREEN) | 0 шт. | — | |
|
| 7 | 12164-38B01-0D0 | BEARING, CRANK PIN (YELLOW) | 4 шт. | — | |
|
| 8 | 12731-38B00 | SPROCKET, CAM CHAIN DRIVE RH | 0 шт. | — | |
|
| 9 | 21111-38B00 | GEAR, PRIMARY DRIVE | 0 шт. | — | |
|
| 10 | 09103-14010 | BOLT (14X28) | 1 шт. | — | |
|
| 11 | 12111-38B03-0F0 | PISTON | 2 шт. | — | |
|
| 12 | 12140-38B30 | RING SET, PISTON | 2 шт. | — | |
|
| 13 | 12151-14A01 | PIN, PISTON | 2 шт. | — | |
|
| 14 | 09381-23003 | CIRCLIP | 4 шт. | — | |
|
| 15 | 12100-38B00-050 | PISTON SET (OS:0.5) OPT | 2 шт. | — | |
|
