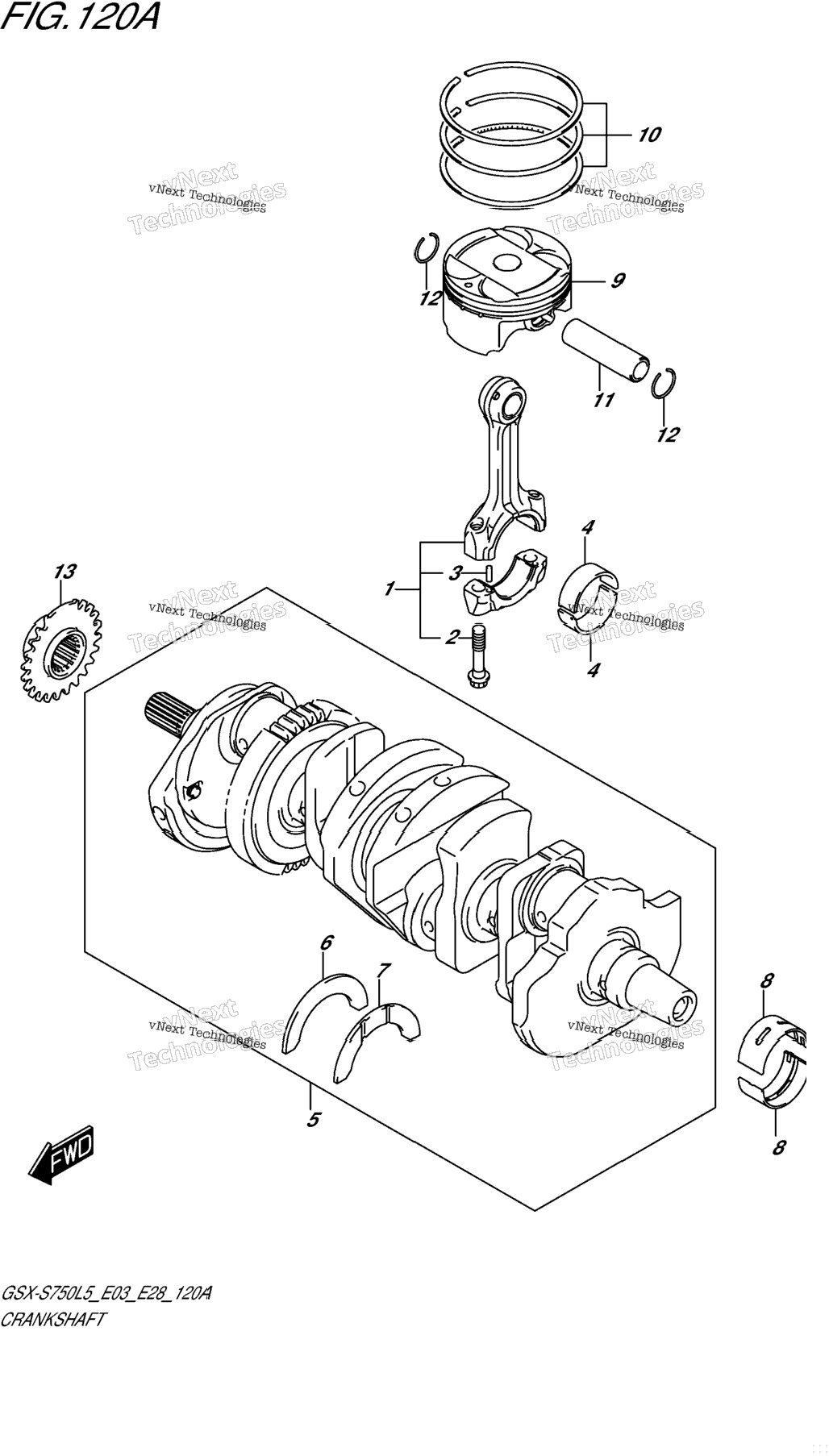

| 1 | 12160-08J00 | ROD ASSY, CONNECTING | 0 шт. | — | |
|
| 2 | 12163-35F00 | BOLT | 8 шт. | — | |
|
| 3 | 04221-04089 | .PIN | 8 шт. | — | |
|
| 4 | 12164-35F00-0B0 | BEARING, CRANK PIN (BLACK) | 8 шт. | — | |
|
| 4 | 12164-35F00-0C0 | BEARING, CRANK PIN (BROWN) | 8 шт. | — | |
|
| 4 | 12164-35F00-0A0 | BEARING, CRANK PIN (GREEN) | 8 шт. | — | |
|
| 4 | 12164-35F00-0D0 | BEARING, CRANK PIN (YELLOW) | 8 шт. | — | |
|
| 5 | 12000-30810 | CRANKSHAFT SET | 1 шт. | — | |
|
| 7 | 12228-17E00-0B0 | BEARING, THRUST LH (BLACK) | 1 шт. | — | |
|
| 7 | 12228-17E00-0C0 | BEARING, THRUST LH (BLUE) | 1 шт. | — | |
|
| 7 | 12228-17E00-0D0 | BEARING, THRUST LH (GREEN) | 1 шт. | — | |
|
| 7 | 12228-17E00-0A0 | BEARING, THRUST LH (RED) | 1 шт. | — | |
|
| 7 | 12228-17E00-0F0 | BEARING, THRUST LH (WHITE) | 1 шт. | — | |
|
| 7 | 12228-17E00-0E0 | BEARING, THRUST LH (YELLOW) | 1 шт. | — | |
|
| 7 | 12228-17E00-0D0 | BEARING, THRUST RH (GREEN) | 1 шт. | — | |
|
| 8 | 12229-35F00-0B0 | BEARING, CRANKSHAFT (BLACK) | 10 шт. | — | |
|
| 8 | 12229-35F00-0C0 | BEARING, CRANKSHAFT (BROWN) | 10 шт. | — | |
|
| 8 | 12229-35F00-0A0 | BEARING, CRANKSHAFT (GREEN) | 10 шт. | — | |
|
| 8 | 12229-35F00-0D0 | BEARING, CRANKSHAFT (YELLOW) | 10 шт. | — | |
|
| 9 | 12111-08J00-0F0 | PISTON (YELLOW) | 4 шт. | — | |
|
| 10 | 12140-08J00 | RING SET, PISTON | 0 шт. | — | |
|
| 11 | 12151-10G00 | PIN,PISTON | 4 шт. | — | |
|
| 12 | 09381-16001 | SNAP RING | 8 шт. | — | |
|
| 13 | 12731-08J00 | SPROCKET,CAM CHAIN DRIVE (NT: | 0 шт. | — | |
|
