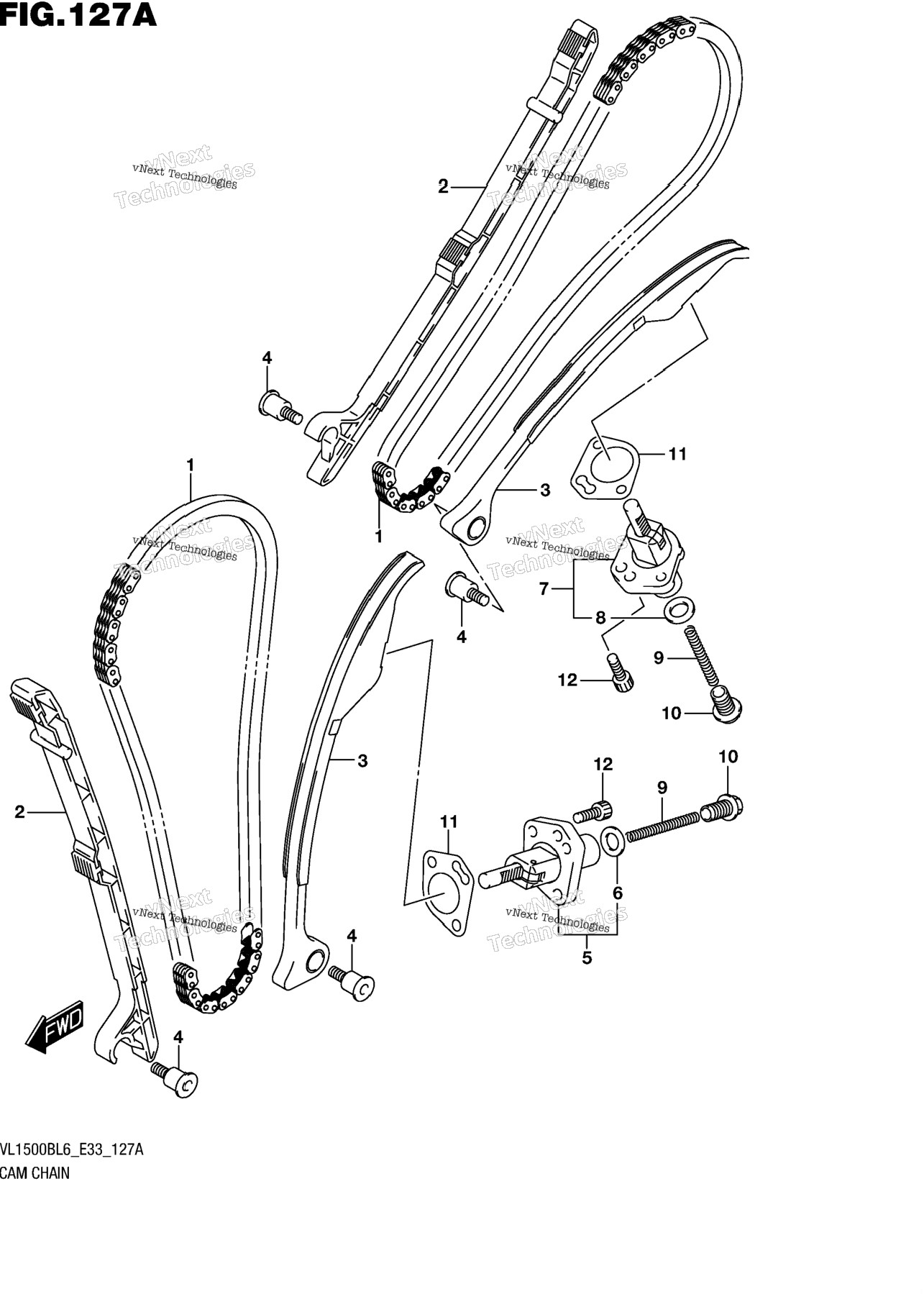

| 1 | 12760-40H00 | CHAIN, CAMSHAFT DRIVE | 0 шт. | — | |
|
| 2 | 12771-40H00 | GUIDE, CAM CHAIN | 2 шт. | — | |
|
| 3 | 12811-40H00 | TENSIONER, CAM CHAIN | 0 шт. | — | |
|
| 4 | 12812-31G00 | BOLT,CAM CHAIN TENSIONER | 4 шт. | — | |
|
| 5 | 12830-40H00 | ADJUSTER ASSY, TENSIONER FRON | 0 шт. | — | |
|
| 7 | 12830-40H10 | ADJUSTER ASSY, TENSIONER REAR | 0 шт. | — | |
|
| 8 | 12837-24F10 | .GASKET | 1 шт. | — | |
|
| 8 | 12837-24F10 | .GASKET | 1 шт. | — | |
|
| 9 | 12831-41G00 | SPRING | 2 шт. | — | |
|
| 10 | 12833-17G00 | PLUG,TENSIONER ADJUSTER | 2 шт. | — | |
|
| 11 | 12837-27G00 | GASKET | 2 шт. | — | |
|
| 12 | 07130-0625A | BOLT | 4 шт. | — | |
|
