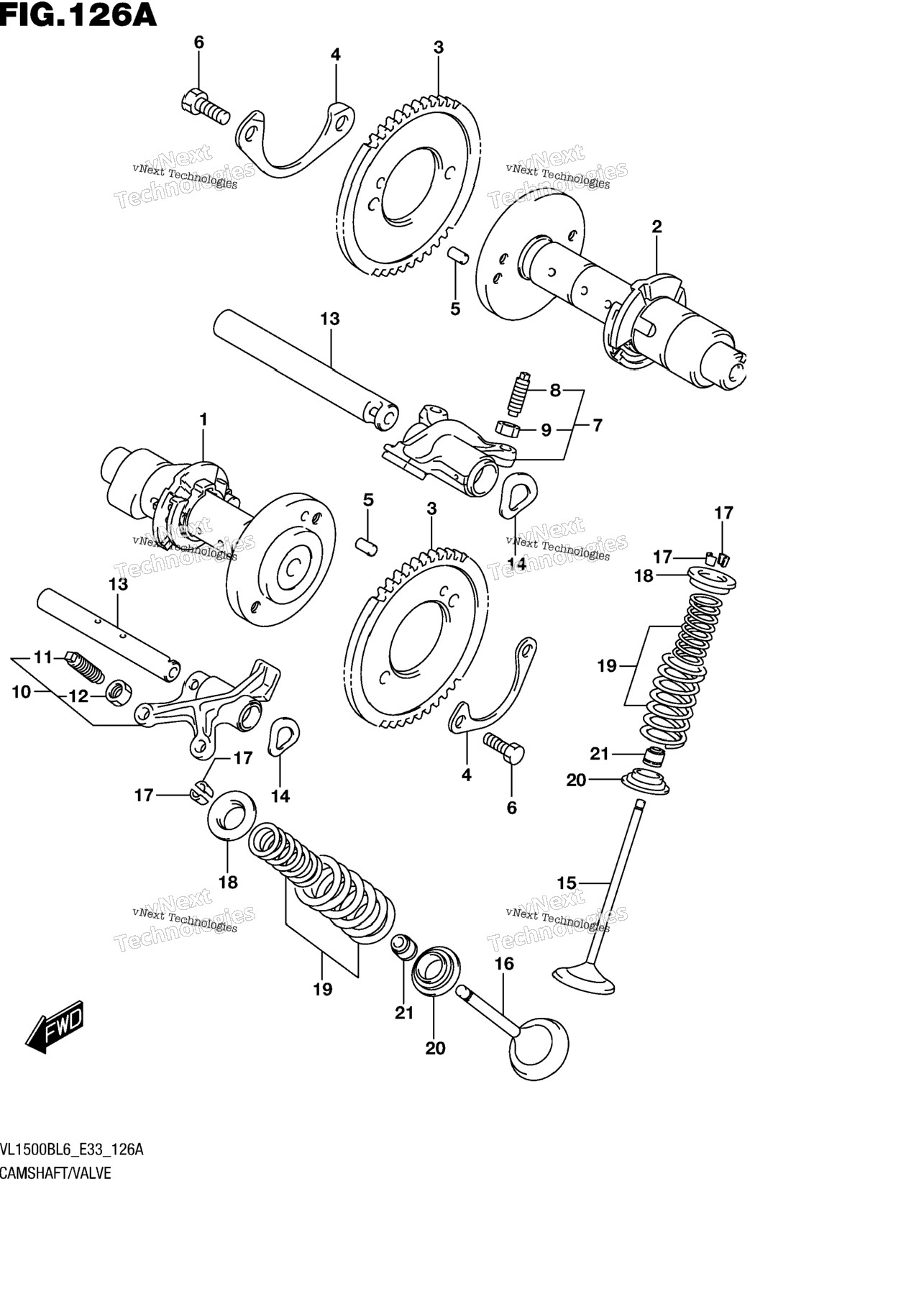

| 1 | 12710-40H20 | CAMSHAFT, FRONT | 0 шт. | — | |
|
| 2 | 12730-40H10 | CAMSHAFT, REAR | 0 шт. | — | |
|
| 3 | 12741-41F00 | SPROCKET, CAMSHAFT (NT:46) | 2 шт. | — | |
|
| 4 | 12747-44001 | WASHER | 2 шт. | — | |
|
| 5 | 04221-05109 | PIN | 2 шт. | — | |
|
| 6 | 09100-06169 | BOLT (6X12.5) | 0 шт. | — | |
|
| 7 | 12840-40H00 | ARM, VALVE ROCKER INTAKE | 0 шт. | — | |
|
| 10 | 12850-40H00 | ARM, VALVE ROCKER EXHAUST | 0 шт. | — | |
|
| 11 | 12842-38A00 | .SCREW | 4 шт. | — | |
|
| 11 | 12842-38A00 | .SCREW | 4 шт. | — | |
|
| 12 | 12843-32400 | .NUT, ADJUSTING SCREW | 4 шт. | — | |
|
| 12 | 12843-32400 | .NUT, ADJUSTING SCREW | 4 шт. | — | |
|
| 13 | 12861-40H00 | SHAFT, VALVE ROCKER ARM | 0 шт. | — | |
|
| 14 | 09164-12018 | WASHER | 4 шт. | — | |
|
| 15 | 12911-40H00 | VALVE, INTAKE | 0 шт. | — | |
|
| 16 | 12912-40H00 | VALVE, EXHAUST | 0 шт. | — | |
|
| 17 | 12932-24400 | COTTER,VALVE | 16 шт. | — | |
|
| 18 | 12931-33201 | RETAINER, SPRING | 8 шт. | — | |
|
| 19 | 12920-32E00 | SPRING SET, VALVE | 8 шт. | — | |
|
| 20 | 12933-81400 | SEAT, SPRING | 8 шт. | — | |
|
| 21 | 09289-05015 | OIL SEAL (5.5X11X8.2) | 8 шт. | — | |
|
