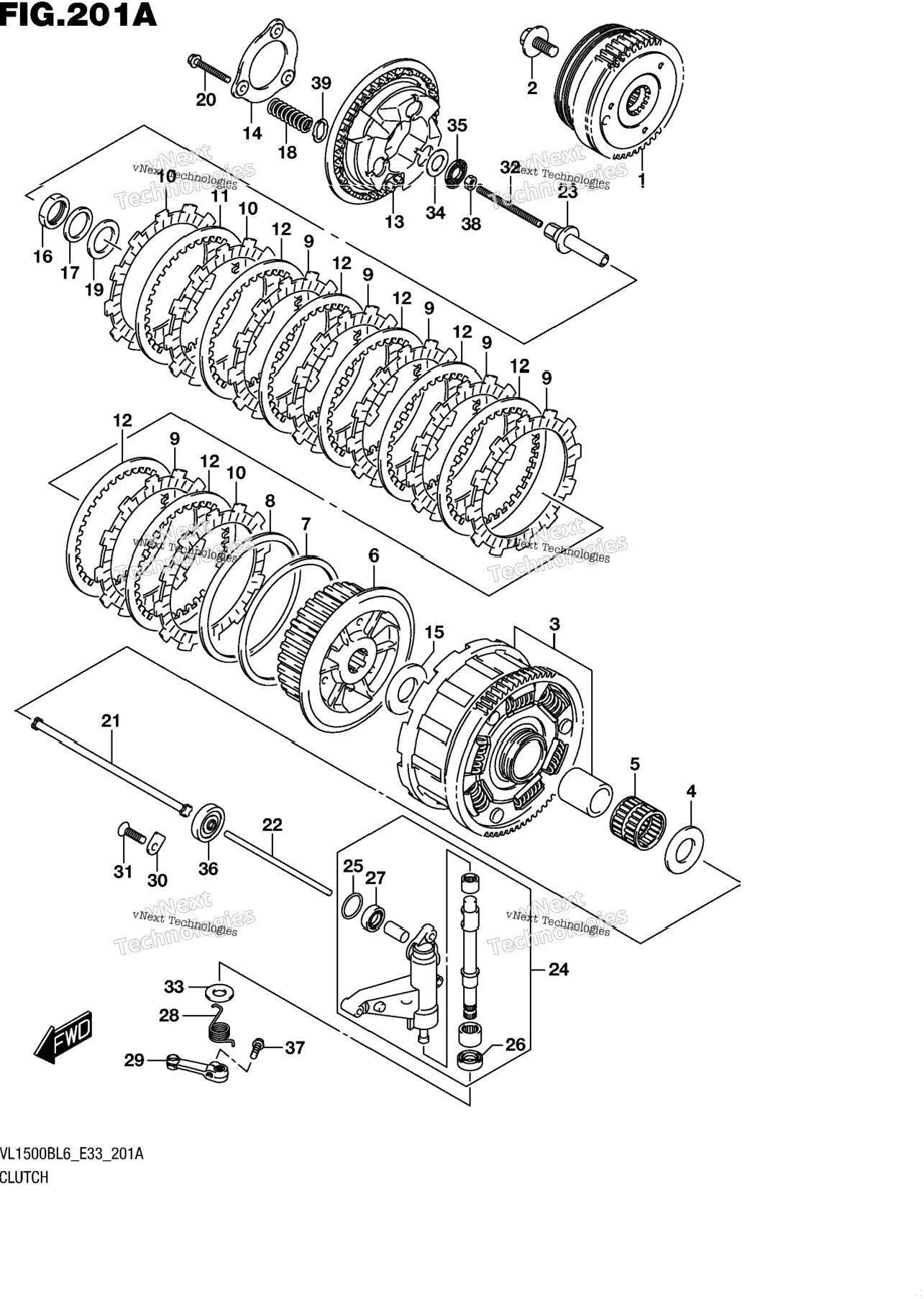

| 1 | 21100-40821 | GEAR, PRIMARY DRIVE (NT:54) | 0 шт. | — | |
|
| 2 | 09103-14010 | BOLT (14X28) | 1 шт. | — | |
|
| 3 | 21200-40890 | GEAR, PRIMARY DRIVEN (NT:76) | 1 шт. | — | |
|
| 4 | 09160-25074 | WASHER (25X52X2.5) | 1 шт. | — | |
|
| 5 | 09263-35013 | BEARING (35X40X39.8) | 1 шт. | — | |
|
| 6 | 21411-06J10 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 7 | 21471-24F00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 8 | 21472-24F00 | WASHER, CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 9 | 21441-31J00 | PLATE, CLUTCH DRIVE (T:3.8) | 6 шт. | — | |
|
| 10 | 21442-31J00 | PLATE, CLUTCH DRIVE (T:3.8) | 3 шт. | — | |
|
| 11 | 21452-31J00 | PLATE, CLUTCH DRIVEN (T:2.0) | 1 шт. | — | |
|
| 12 | 21451-24F00 | PLATE,CLUTCH DRIVEN NO.1 (T:2 | 7 шт. | — | |
|
| 13 | 21462-31J10 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 14 | 21414-31J00 | PLATE, STOPPER | 1 шт. | — | |
|
| 15 | 09160-25056 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 16 | 09159-24010 | NUT | 1 шт. | — | |
|
| 17 | 09164-24008 | WASHER | 1 шт. | — | |
|
| 18 | 21413-06J10 | SPRING, CLUTCH | 3 шт. | — | |
|
| 19 | 09181-25223 | SHIM (25X38X1) | 1 шт. | — | |
|
| 20 | 21412-31J00 | BOLT, CLUTCH SPRING | 3 шт. | — | |
|
| 21 | 23110-24F00 | ROD, CLUTCH | 1 шт. | — | |
|
| 22 | 23111-40H00 | ROD, CLUTCH PUSH LH | 0 шт. | — | |
|
| 23 | 23121-41G00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 24 | 23120-41810 | CAMSHAFT SET, CLUTCH RELEASE | 1 шт. | — | |
|
| 25 | 09280-21008 | .O RING (D:2.5,ID:21) | 1 шт. | — | |
|
| 26 | 09282-10012 | .OIL SEAL (10X20X6) | 1 шт. | — | |
|
| 27 | 09285-10004 | .OIL SEAL (10X17X5) | 1 шт. | — | |
|
| 28 | 23125-48G00 | SPRING, CLUTCH RELEASE RETURN | 1 шт. | — | |
|
| 29 | 23271-48G10 | ARM, CLUTCH RELEASE | 1 шт. | — | |
|
| 30 | 24741-20A00 | RETAINER | 1 шт. | — | |
|
| 31 | 09126-06011 | SCREW (6X12) | 1 шт. | — | |
|
| 32 | 09134-06015 | SCREW (6X73) | 1 шт. | — | |
|
| 33 | 09160-10020 | WASHER (10.5X24X1) | 1 шт. | — | |
|
| 34 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 35 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 36 | 09283-06005 | OIL SEAL (6X18X5) | 1 шт. | — | |
|
| 37 | 01547-0620A | BOLT | 1 шт. | — | |
|
| 38 | 08310-0006A | NUT | 1 шт. | — | |
|
| 39 | 21415-31J00 | SEAT, CLUTCH SPRING | 3 шт. | — | |
|
