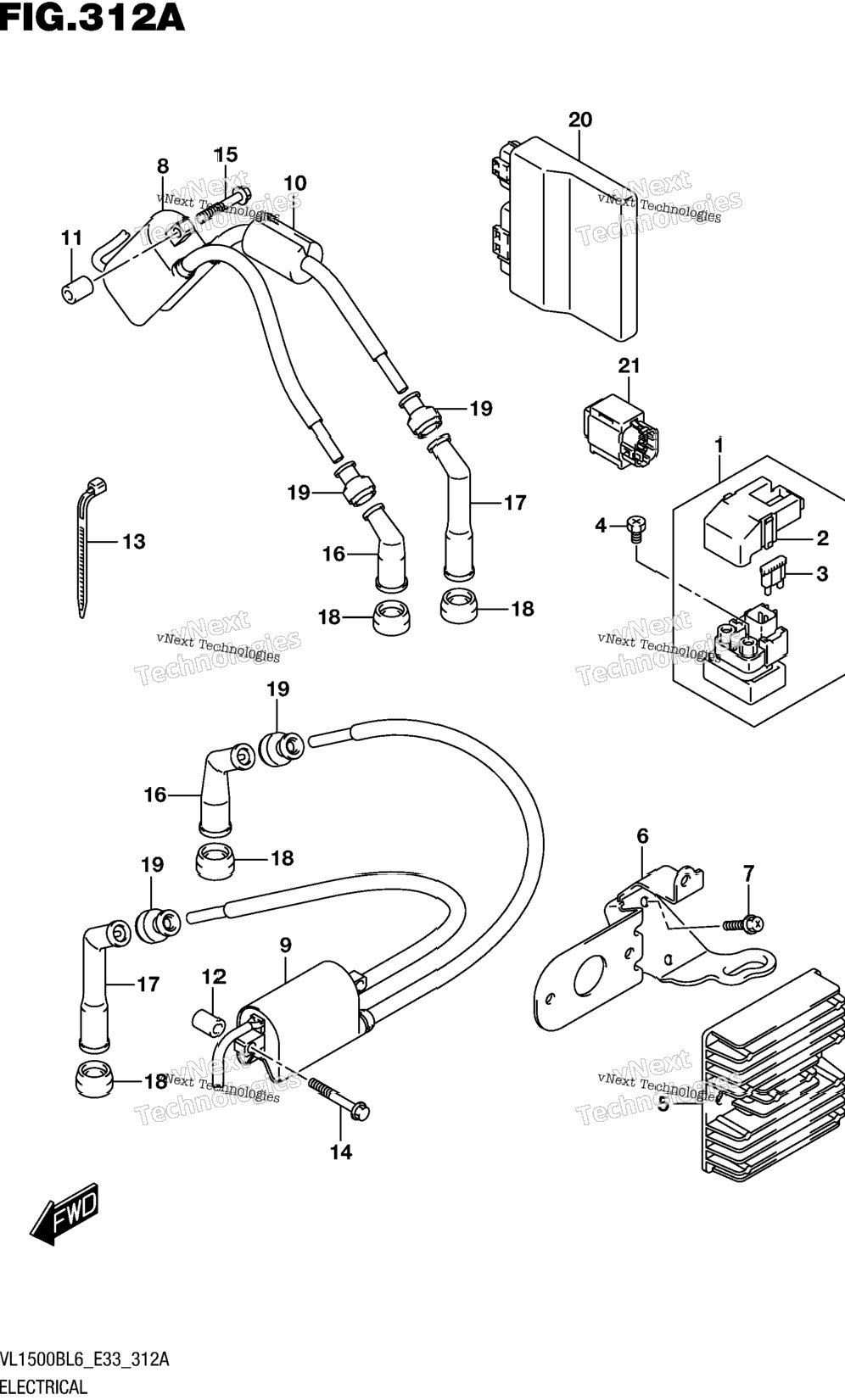

| 1 | 31800-06G00 | RELAY ASSY, STARTING MOTOR | 1 шт. | — | |
|
| 2 | 31861-47E00 | .COVER | 1 шт. | — | |
|
| 3 | 09481-30101 | .FUSE (30A) | 2 шт. | — | |
|
| 4 | 09128-06013 | SCREW (6X8) | 2 шт. | — | |
|
| 5 | 32800-10G30 | RECTIFIER ASSY | 1 шт. | — | |
|
| 6 | 32830-40H10 | BRACKET | 0 шт. | — | |
|
| 7 | 02162-0616A | SCREW | 2 шт. | — | |
|
| 8 | 33410-40H00 | COIL ASSY, IGNITION REAR | 1 шт. | — | |
|
| 9 | 33420-40H11 | COIL ASSY, IGNITION FRONT | 1 шт. | — | |
|
| 10 | 33442-41F00 | CUSHION, HIGH TENSION CORD | 0 шт. | — | |
|
| 11 | 09180-06178 | SPACER (6.4X10X22) REAR | 2 шт. | — | |
|
| 12 | 09180-06198 | SPACER (6.2X12X16) FRONT | 2 шт. | — | |
|
| 13 | 09407-18402 | CLAMP (L:165) | 1 шт. | — | |
|
| 14 | 01547-0635A | BOLT FRONT | 2 шт. | — | |
|
| 15 | 01547-0640A | BOLT REAR | 2 шт. | — | |
|
| 16 | 33510-38B00 | CAP ASSY, SPARK PLUG (SIDE) | 2 шт. | — | |
|
| 17 | 33510-45010 | CAP ASSY, SPARK PLUG (CENTER) | 2 шт. | — | |
|
| 18 | 33541-47D00 | SEAL,SPARK PLUG | 4 шт. | — | |
|
| 19 | 33542-38B00 | SEAL, HIGH TENSION CORD | 4 шт. | — | |
|
| 20 | 32920-06J70 | CONTROL UNIT, FI | 0 шт. | — | |
|
| 21 | 33960-06G10 | SENSOR ASSY,FUEL CUT | 1 шт. | — | |
|
