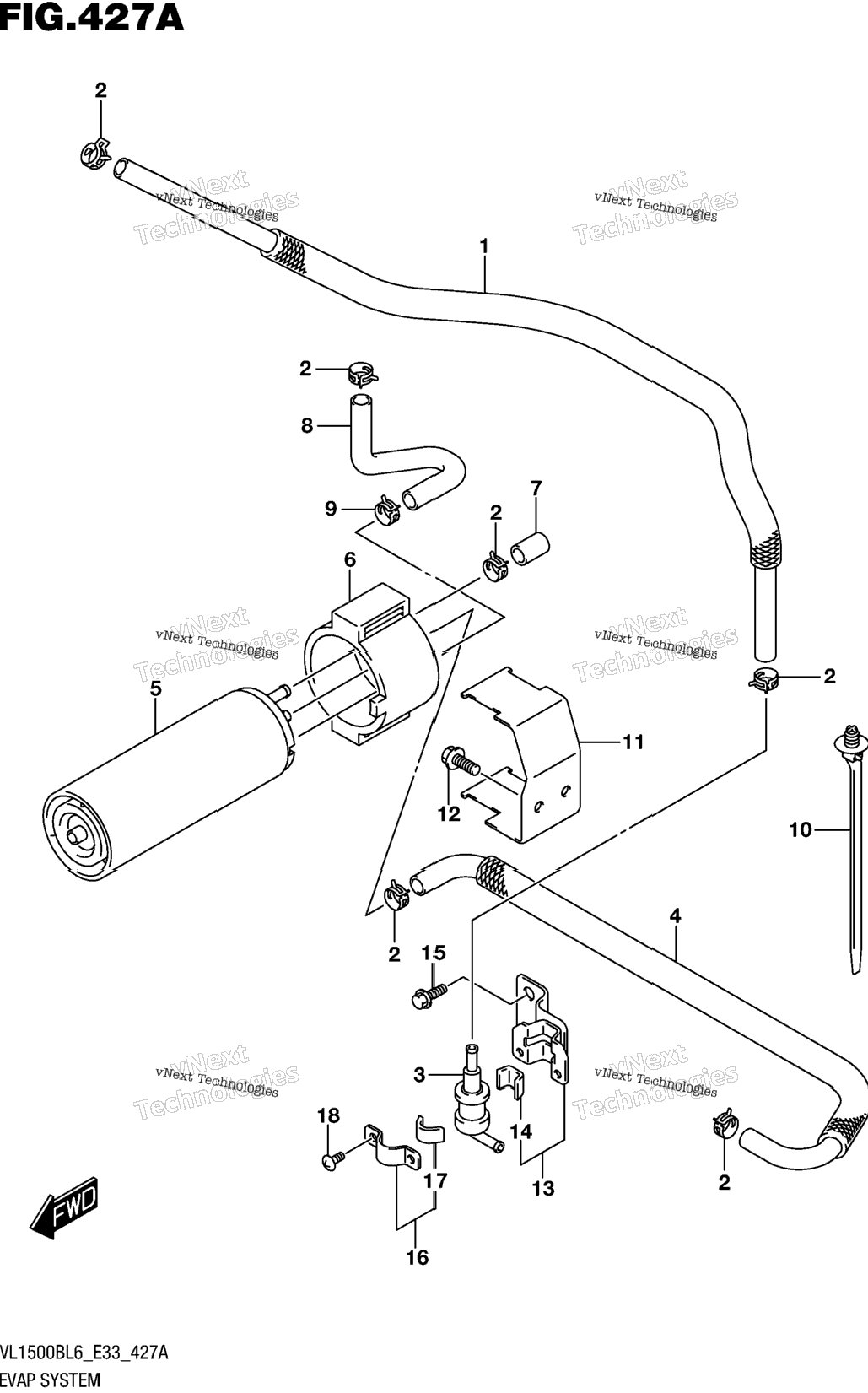

| 1 | 44434-40H00 | HOSE, TANK & VALVE | 0 шт. | — | |
|
| 2 | 09401-11413 | CLIP | 6 шт. | — | |
|
| 3 | 44240-17C00 | VALVE FUEL TANK BREATHER | 1 шт. | — | |
|
| 4 | 13681-06J00 | HOSE, VALVE & CANISTER | 0 шт. | — | |
|
| 5 | 17210-15H00 | CANISTER ASSY | 1 шт. | — | |
|
| 6 | 17211-06J00 | CUSHION | 0 шт. | — | |
|
| 7 | 09251-07003 | CAP (OD:11.5) | 1 шт. | — | |
|
| 8 | 13682-06J00 | HOSE, CANISTER PURGE | 0 шт. | — | |
|
| 9 | 09401-12404 | CLIP | 1 шт. | — | |
|
| 10 | 09407-17403 | CLAMP (L:154) | 1 шт. | — | |
|
| 11 | 17221-06J00 | BRACKET, CANISTER | 0 шт. | — | |
|
| 12 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 13 | 44880-40H00 | BRACKET, BREATHER VALVE | 0 шт. | — | |
|
| 14 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
| 15 | 01547-0610A | BOLT | 1 шт. | — | |
|
| 16 | 44892-24A00 | PLATE FUEL TANK BREATHER NO.2 | 1 шт. | — | |
|
| 17 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
| 18 | 02142-0408A | SCREW | 2 шт. | — | |
|
