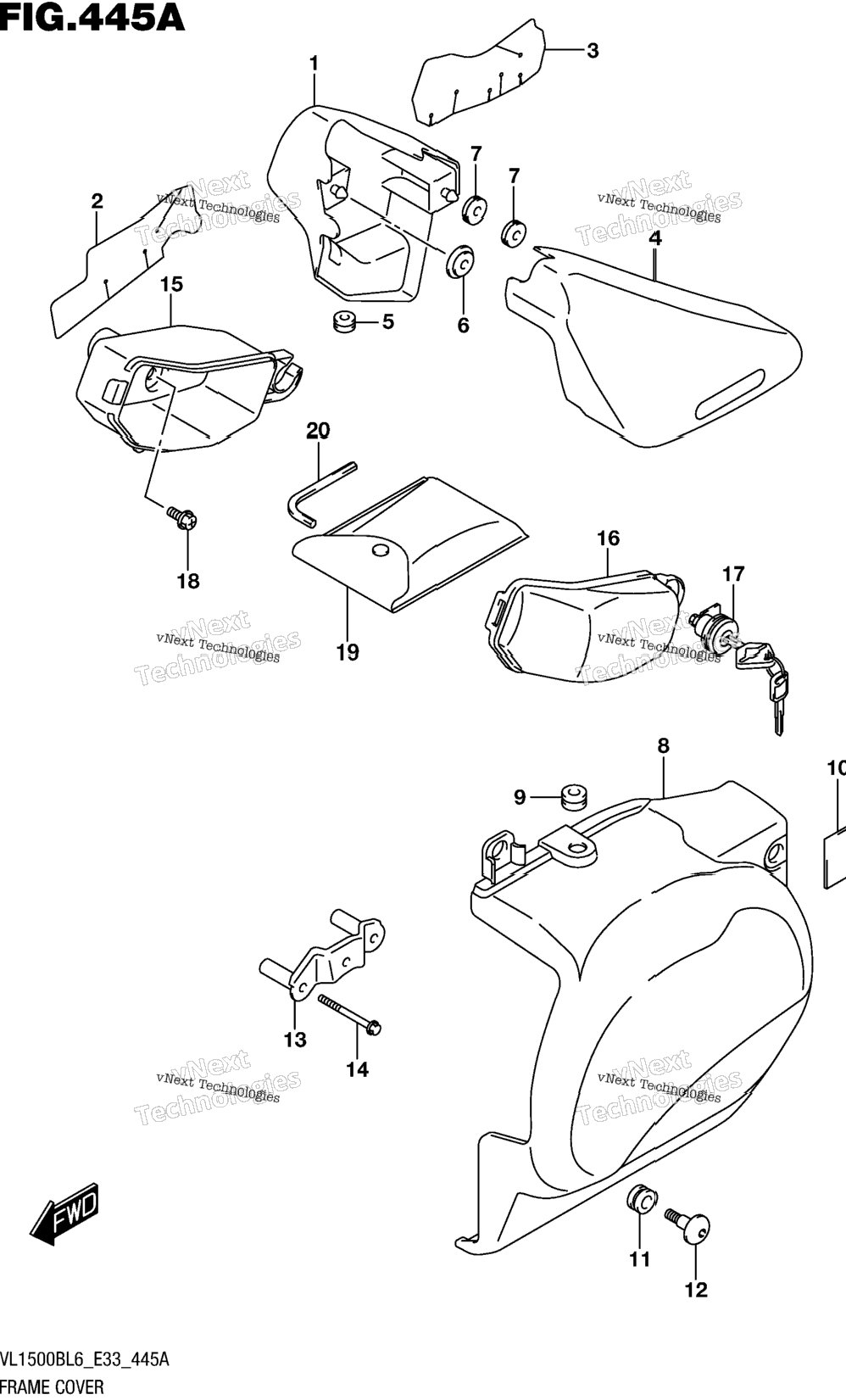

| 1 | 47111-06J00-YUK | COVER, SIDE RH (ORANGE) | 1 шт. | — | |
|
| 2 | 47166-06J10 | SHIELD, SIDE COVER RH | 0 шт. | — | |
|
| 3 | 47166-06J20 | SHIELD, SIDE COVER RH | 1 шт. | — | |
|
| 4 | 47211-40H00-YUK | COVER, SIDE LH (ORANGE) | 1 шт. | — | |
|
| 5 | 47167-06J00 | CUSHION, SIDE COVER LOWER RH | 1 шт. | — | |
|
| 6 | 47191-06J00 | CUSHION, SIDE COVER FRONT | 2 шт. | — | |
|
| 7 | 09320-08018 | CUSHION REAR | 2 шт. | — | |
|
| 8 | 47231-40H20 | COVER, LOWER LH | 1 шт. | — | |
|
| 9 | 09320-06504 | CUSHION LH | 1 шт. | — | |
|
| 10 | 51827-01A00 | CUSHION LH | 1 шт. | — | |
|
| 11 | 09320-09016 | CUSHION (9X18X9.5) LH | 3 шт. | — | |
|
| 12 | 09139-06190 | SCREW (6X20) LH | 3 шт. | — | |
|
| 13 | 47250-06J00 | BRACKET, LOWER COVER LH | 1 шт. | — | |
|
| 14 | 01547-0650A | BOLT | 2 шт. | — | |
|
| 15 | 92211-06J00 | BODY, LUGGAGE BOX | 0 шт. | — | |
|
| 16 | 92212-06J00 | LID | 0 шт. | — | |
|
| 17 | 95700-07860 | LOCK SET, LUGGAGE BOX | 1 шт. | — | |
|
| 18 | 09111-06107 | BOLT (6X12) | 3 шт. | — | |
|
| 19 | 09800-21056 | TOOL ASSY | 1 шт. | — | |
|
| 20 | 09816-00050 | SPANNER, 6 HEXAGON | 1 шт. | — | |
|
