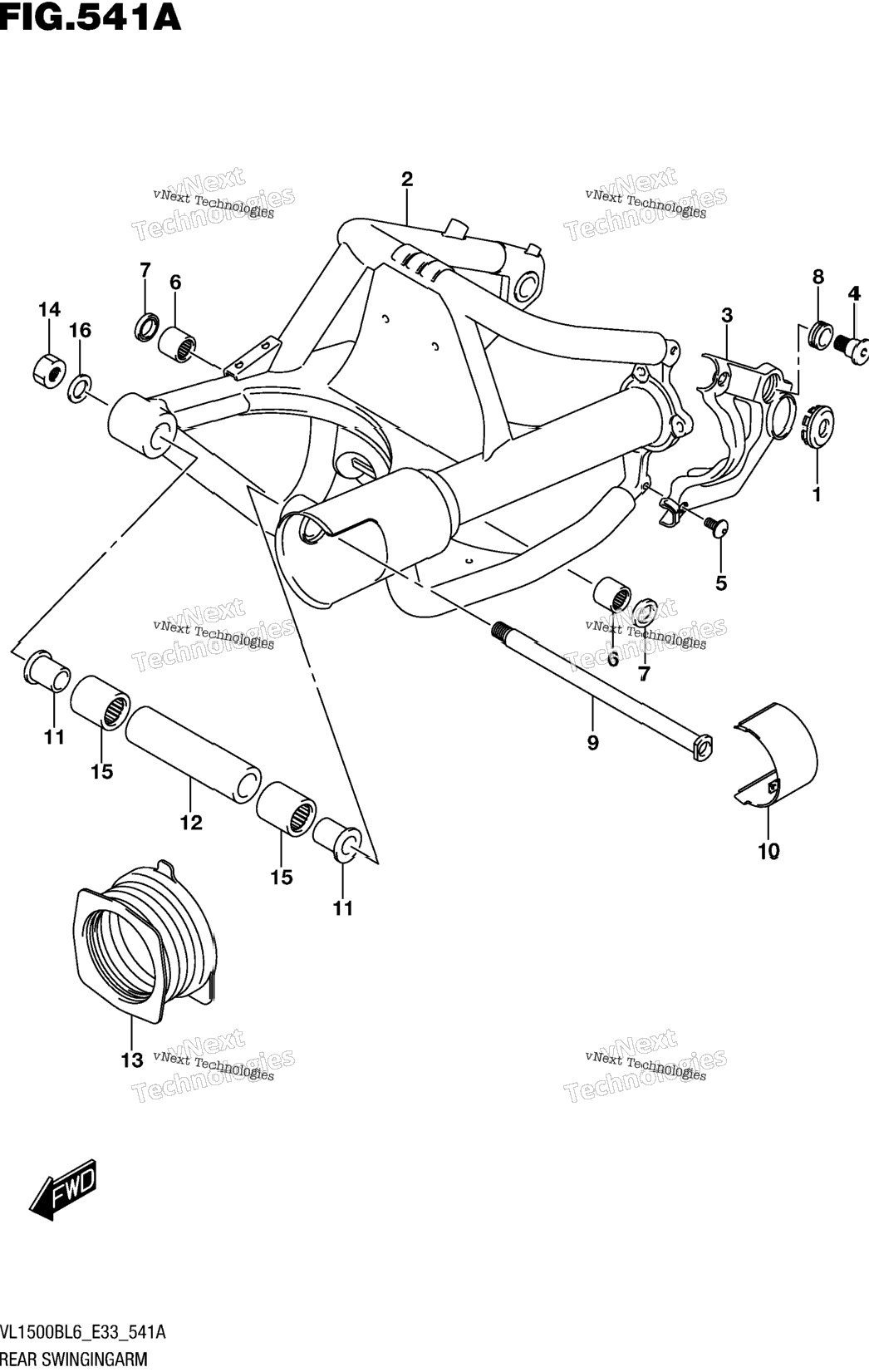

| 1 | 41899-42F10 | CAP, REAR SWINGINGARM COVER | 1 шт. | — | |
|
| 2 | 61100-06J00-019 | SWINGINGARM, REAR (BLACK) | 0 шт. | — | |
|
| 3 | 61126-40H00-019 | COVER, LH (BLACK) | 0 шт. | — | |
|
| 4 | 61127-41F20 | BOLT, COVER REAR | 1 шт. | — | |
|
| 5 | 09139-08007 | SCREW (8X16) | 2 шт. | — | |
|
| 6 | 09263-22071 | BEARING (22X29X25) | 2 шт. | — | |
|
| 7 | 09285-22001 | OIL SEAL (22X29X4) | 2 шт. | — | |
|
| 8 | 09320-22003 | CUSHION | 1 шт. | — | |
|
| 9 | 61211-22D00 | SHAFT, PIVOT | 0 шт. | — | |
|
| 10 | 61230-40H00 | COVER, PIVOT LH | 1 шт. | — | |
|
| 11 | 61251-31E00 | SPACER, PIVOT BEARING | 2 шт. | — | |
|
| 12 | 61280-48G01 | SPACER, PIVOT CENTER | 0 шт. | — | |
|
| 13 | 61372-40H10 | BOOT, PROPELLER SHAFT | 0 шт. | — | |
|
| 14 | 09159-18007 | NUT | 1 шт. | — | |
|
| 15 | 09263-25059 | BEARING (25X33X35) | 2 шт. | — | |
|
| 16 | 08322-0118B | WASHER | 1 шт. | — | |
|
