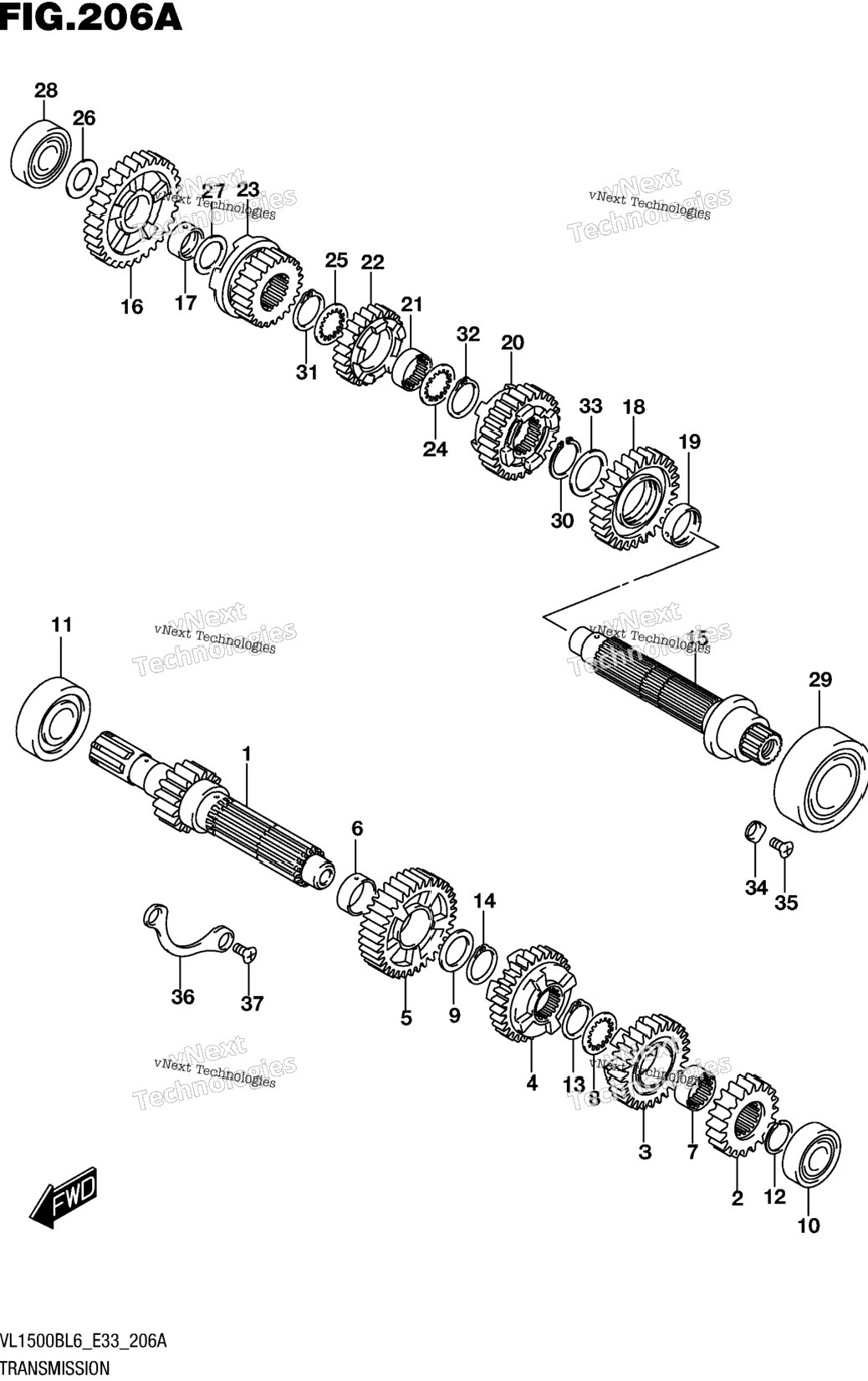

| 1 | 24120-40H00 | SHAFT, COUNTER (NT:16) | 1 шт. | — | |
|
| 2 | 24221-48G00 | GEAR, 2ND DRIVE (NT:20) | 1 шт. | — | |
|
| 3 | 24231-48G10 | GEAR, 3RD DRIVE (NT:26) | 1 шт. | — | |
|
| 4 | 24241-06J00 | GEAR, 4TH DRIVE (NT:32) | 1 шт. | — | |
|
| 5 | 24251-40H00 | GEAR, 5TH DRIVE (NT:33) | 1 шт. | — | |
|
| 6 | 24252-24F10 | BUSH, 5TH DRIVE GEAR | 1 шт. | — | |
|
| 7 | 24262-24F10 | BUSH, 3RD DRIVE GEAR | 1 шт. | — | |
|
| 8 | 09167-27003 | LOCK WASHER (27X36X2.5) | 1 шт. | — | |
|
| 9 | 09181-27014 | SHIM (27X36X2.5) | 1 шт. | — | |
|
| 10 | 09262-20080 | BEARING (20X52X15) LH | 1 шт. | — | |
|
| 11 | 09262-25153 | BEARING (25X62X17) RH | 1 шт. | — | |
|
| 12 | 09380-27004 | CIRCLIP | 1 шт. | — | |
|
| 13 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 14 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 15 | 24130-40H10 | SHAFT, DRIVE | 1 шт. | — | |
|
| 16 | 24311-48G00 | GEAR, 1ST DRIVEN (NT:35) | 1 шт. | — | |
|
| 17 | 24312-24F10 | BUSH, 1ST DRIVEN GEAR | 1 шт. | — | |
|
| 18 | 24321-48G10 | GEAR, 2ND DRIVEN (NT:28) | 1 шт. | — | |
|
| 19 | 24322-48G00 | BUSH, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 20 | 24331-06J00 | GEAR, 3RD DRIVEN (NT:27) | 1 шт. | — | |
|
| 21 | 24332-24F10 | BUSH, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 22 | 24341-40H00 | GEAR, 4TH DRIVEN (NT:28) | 1 шт. | — | |
|
| 23 | 24351-40H00 | GEAR, 5TH DRIVEN (NT:26) | 1 шт. | — | |
|
| 24 | 09167-30008 | LOCK WASHER LH | 1 шт. | — | |
|
| 25 | 09167-30008 | LOCK WASHER RH | 1 шт. | — | |
|
| 26 | 09181-22223 | SHIM (22X34X1) RH | 1 шт. | — | |
|
| 27 | 09181-24005 | SHIM (24X34X1) LH | 1 шт. | — | |
|
| 28 | 09262-22024 | BEARING (22X56X16) RH | 1 шт. | — | |
|
| 29 | 09267-35004 | BEARING (35X72X27) LH | 1 шт. | — | |
|
| 30 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 31 | 09380-30009 | CIRCLIP RH | 1 шт. | — | |
|
| 32 | 09380-30009 | CIRCLIP LH | 1 шт. | — | |
|
| 33 | 08211-30403 | WASHER | 1 шт. | — | |
|
| 34 | 24741-20A00 | RETAINER | 2 шт. | — | |
|
| 35 | 09126-06011 | SCREW (6X12) | 2 шт. | — | |
|
| 36 | 24741-27A00 | RETAINER, COUNTER SHAFT RH | 1 шт. | — | |
|
| 37 | 09126-06011 | SCREW (6X12) | 2 шт. | — | |
|
