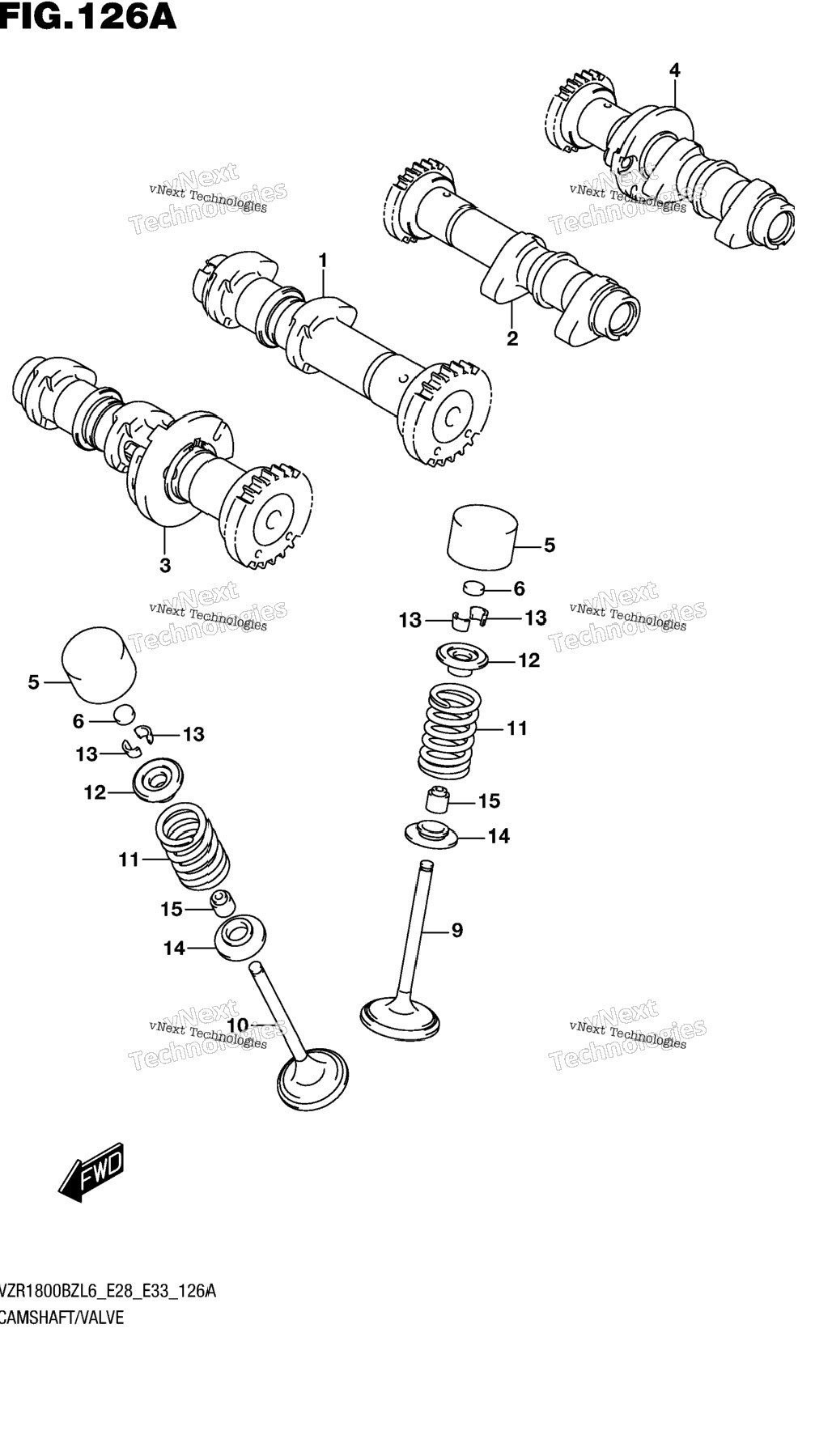

| 1 | 12710-48G00 | CAMSHAFT, INTAKE FRONT (NT:24 | 0 шт. | — | |
|
| 2 | 12730-48G00 | CAMSHAFT, INTAKE REAR (NT:24) | 1 шт. | — | |
|
| 3 | 12720-22H00 | CAMSHAFT, EXHAUST FRONT | 0 шт. | — | |
|
| 3 | 12720-22H00 | (NT:24) | 0 шт. | — | |
|
| 4 | 12740-22H00 | CAMSHAFT, EXHAUST REAR (NT:24 | 1 шт. | — | |
|
| 5 | 12891-48G00 | TAPPET | 8 шт. | — | |
|
| 6-1 | 12892-41C00-230 | SHIM, TAPPET (T:2.30) | 8 шт. | — | |
|
| 6-10 | 12892-41C00-275 | SHIM, TAPPET (T:2.75) | 8 шт. | — | |
|
| 6-11 | 12892-41C00-280 | SHIM, TAPPET (T:2.80) | 8 шт. | — | |
|
| 6-12 | 12892-41C00-285 | SHIM, TAPPET (T:2.85) | 8 шт. | — | |
|
| 6-13 | 12892-41C00-290 | SHIM, TAPPET (T:2.90) | 8 шт. | — | |
|
| 6-14 | 12892-41C00-295 | SHIM, TAPPET (T:2.95) | 8 шт. | — | |
|
| 6-15 | 12892-41C00-300 | SHIM, TAPPET (T:3.00) | 8 шт. | — | |
|
| 6-16 | 12892-41C00-305 | SHIM, TAPPET (T:3.05) | 8 шт. | — | |
|
| 6-17 | 12892-41C00-310 | SHIM, TAPPET (T:3.10) | 8 шт. | — | |
|
| 6-18 | 12892-41C00-315 | SHIM, TAPPET (T:3.15) | 8 шт. | — | |
|
| 6-19 | 12892-41C00-320 | SHIM, TAPPET (T:3.20) | 8 шт. | — | |
|
| 6-2 | 12892-41C00-235 | SHIM, TAPPET (T:2.35) | 8 шт. | — | |
|
| 6-20 | 12892-41C00-325 | SHIM, TAPPET (T:3.25) | 8 шт. | — | |
|
| 6-21 | 12892-41C00-330 | SHIM, TAPPET (T:3.30) | 8 шт. | — | |
|
| 6-22 | 12892-41C00-335 | SHIM, TAPPET (T:3.35) | 8 шт. | — | |
|
| 6-23 | 12892-41C00-340 | SHIM, TAPPET (T:3.40) | 8 шт. | — | |
|
| 6-24 | 12892-41C00-345 | SHIM, TAPPET (T:3.45) | 0 шт. | — | |
|
| 6-25 | 12892-41C00-350 | SHIM, TAPPET (T:3.50) | 8 шт. | — | |
|
| 6-3 | 12892-41C00-240 | SHIM, TAPPET (T:2.40) | 8 шт. | — | |
|
| 6-4 | 12892-41C00-245 | SHIM, TAPPET (T:2.45) | 8 шт. | — | |
|
| 6-5 | 12892-41C00-250 | SHIM, TAPPET (T:2.50) | 8 шт. | — | |
|
| 6-6 | 12892-41C00-255 | SHIM, TAPPET (T:2.55) | 8 шт. | — | |
|
| 6-7 | 12892-41C00-260 | SHIM, TAPPET (T:2.60) | 8 шт. | — | |
|
| 6-8 | 12892-41C00-265 | SHIM, TAPPET (T:2.65) | 8 шт. | — | |
|
| 6-9 | 12892-41C00-270 | SHIM, TAPPET (T:2.70) | 8 шт. | — | |
|
| 7 | 12800-41810 | (5PCS.EACH) & CASE | 0 шт. | — | |
|
| 7 | 12800-41810 | SHIM SET, TAPPET OPT | 1 шт. | — | |
|
| 7 | 12800-41810 | T:2.30, 2.35...3.45, 3.50 NOT ILLUSTRATED | 0 шт. | — | |
|
| 8 | 99000-69471 | .CASE,TAPPET SHIM NOT ILLUSTRATED | 0 шт. | — | |
|
| 8 | 99000-69471 | .CASE, TAPPET SHIM OPT | 1 шт. | — | |
|
| 9 | 12911-48G10 | VALVE, INTAKE | 4 шт. | — | |
|
| 10 | 12912-48G00 | VALVE, EXHAUST | 4 шт. | — | |
|
| 11 | 12921-48G10 | SPRING, VALVE | 8 шт. | — | |
|
| 12 | 12931-48G00 | RETAINER, VALVE SPRING | 8 шт. | — | |
|
| 13 | 12932-85FA0 | COTTER, VALVE | 16 шт. | — | |
|
| 14 | 12933-19B00 | SEAT, VALVE SPRING | 8 шт. | — | |
|
| 15 | 09289-06003 | OIL SEAL (6X12.8X10.2) | 8 шт. | — | |
|
