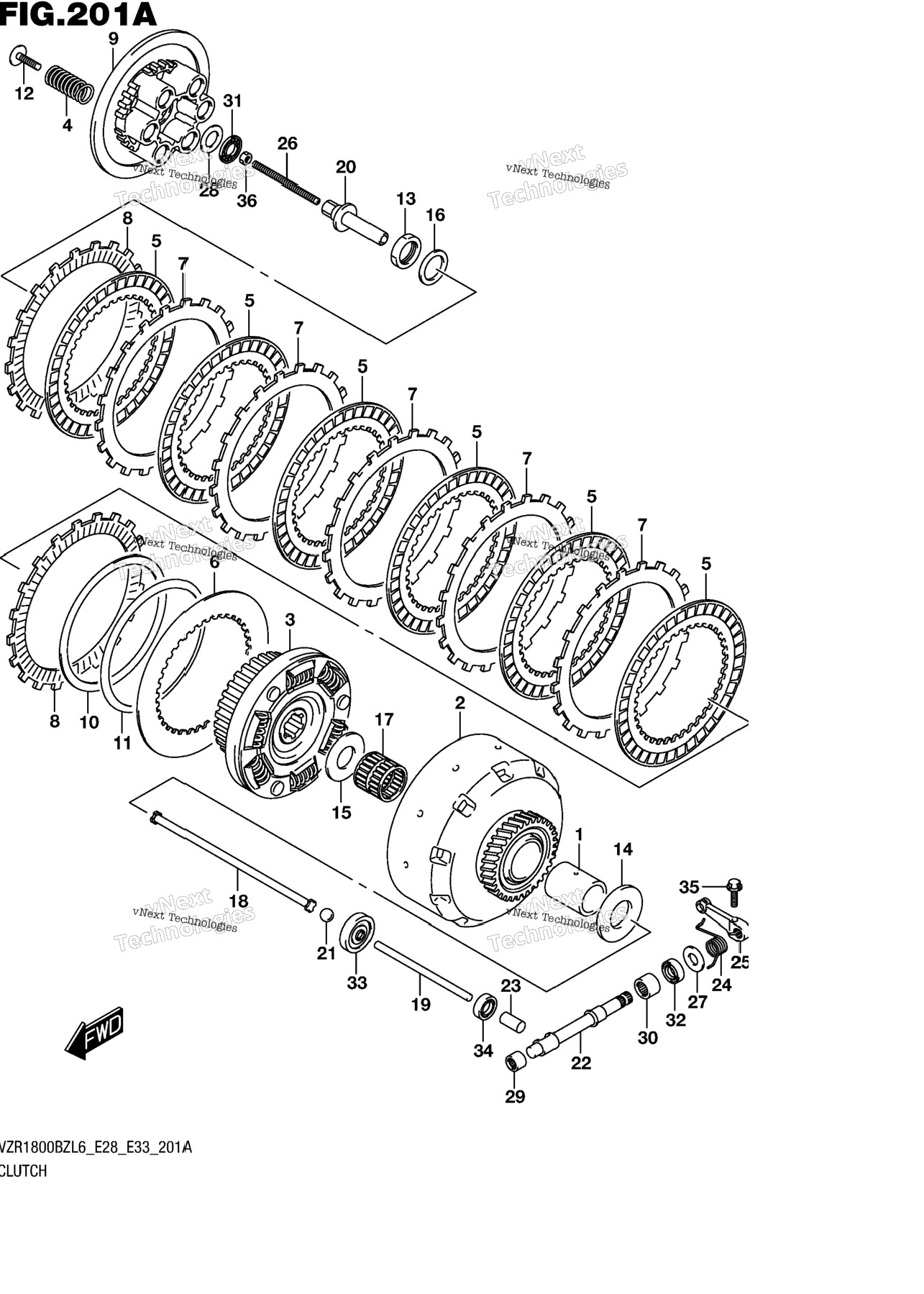

| 1 | 21151-48G00 | SPACER, PRIMARY DRIVE GEAR | 1 шт. | — | |
|
| 2 | 21100-48G01 | GEAR ASSY,PRIMARY DRIVE (NT:3 | 1 шт. | — | |
|
| 2 | 21100-48G01 | GEAR ASSY,PRIMARY DRIVE (NT:3 | 0 шт. | — | |
|
| 3 | 21410-48G10 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 4 | 21413-35F10 | SPRING, CLUTCH | 6 шт. | — | |
|
| 5 | 21441-22H00 | PLATE, CLUTCH DRIVE NO.1 | 6 шт. | — | |
|
| 5 | 21441-22H00 | (T:3.0) | 0 шт. | — | |
|
| 6-1 | 21441-48G40 | PLATE, CLUTCH DRIVE NO.2 | 1 шт. | — | |
|
| 6-1 | 21441-48G40 | (T:2.0) | 0 шт. | — | |
|
| 6-2 | 21441-48G50 | PLATE, CLUTCH DRIVE NO.3 | 1 шт. | — | |
|
| 6-2 | 21441-48G50 | (T:2.3) | 0 шт. | — | |
|
| 6-3 | 21441-48G60 | PLATE, CLUTCH DRIVE NO.4 | 1 шт. | — | |
|
| 6-3 | 21441-48G60 | (T:1.6) | 0 шт. | — | |
|
| 7 | 21451-22H00 | PLATE,CLUTCH DRIVEN NO.1 (T:2 | 0 шт. | — | |
|
| 7 | 21451-22H00 | PLATE,CLUTCH DRIVEN NO.1 (T:2 | 5 шт. | — | |
|
| 8 | 21451-48G10 | PLATE,CLUTCH DRIVEN NO.2 (T:3 | 0 шт. | — | |
|
| 8 | 21451-48G10 | PLATE,CLUTCH DRIVEN NO.2 (T:3 | 2 шт. | — | |
|
| 9 | 21462-48G00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 10 | 21471-48G00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 11 | 21472-48G10 | WASHER, CLUTCH PLATE | 1 шт. | — | |
|
| 12 | 21482-41G00 | BOLT, CLUTCH SPRING | 6 шт. | — | |
|
| 13 | 09159-24010 | NUT | 1 шт. | — | |
|
| 15 | 09160-25056 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 15 | 09160-25056 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 16 | 09164-24008 | WASHER | 1 шт. | — | |
|
| 17 | 09263-32020 | BEARING (32X37X38.3) | 1 шт. | — | |
|
| 18 | 23110-24F00 | ROD, CLUTCH | 1 шт. | — | |
|
| 19 | 23111-48G00 | ROD, CLUTCH PUSH LH | 1 шт. | — | |
|
| 20 | 23121-41G00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 21 | 23122-02FR0 | BALL, CLUTCH PUSH | 1 шт. | — | |
|
| 22 | 23122-48G00 | CAMSHAFT, CLUTCH RELEASE | 1 шт. | — | |
|
| 23 | 23123-41G00 | CAP, CLUTCH PUSH ROD | 1 шт. | — | |
|
| 24 | 23125-48G00 | SPRING, CLUTCH RELEASE RETURN | 1 шт. | — | |
|
| 25 | 23271-48G00 | ARM, CLUTCH RELEASE | 1 шт. | — | |
|
| 26 | 09134-06015 | SCREW (6X73) | 1 шт. | — | |
|
| 27 | 09160-10020 | WASHER (10.5X24X1) | 1 шт. | — | |
|
| 28 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 29 | 09263-10014 | BEARING (10X14X10) | 1 шт. | — | |
|
| 30 | 09263-12027 | BEARING (12X18X12) | 1 шт. | — | |
|
| 31 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 32 | 09282-10012 | OIL SEAL (10X20X6) | 1 шт. | — | |
|
| 33 | 09283-06010 | OIL SEAL (6X34X10.5) | 1 шт. | — | |
|
| 34 | 09285-10004 | OIL SEAL (10X17X5) | 1 шт. | — | |
|
| 35 | 01547-0620A | BOLT | 1 шт. | — | |
|
| 36 | 08310-0006A | NUT | 1 шт. | — | |
|
