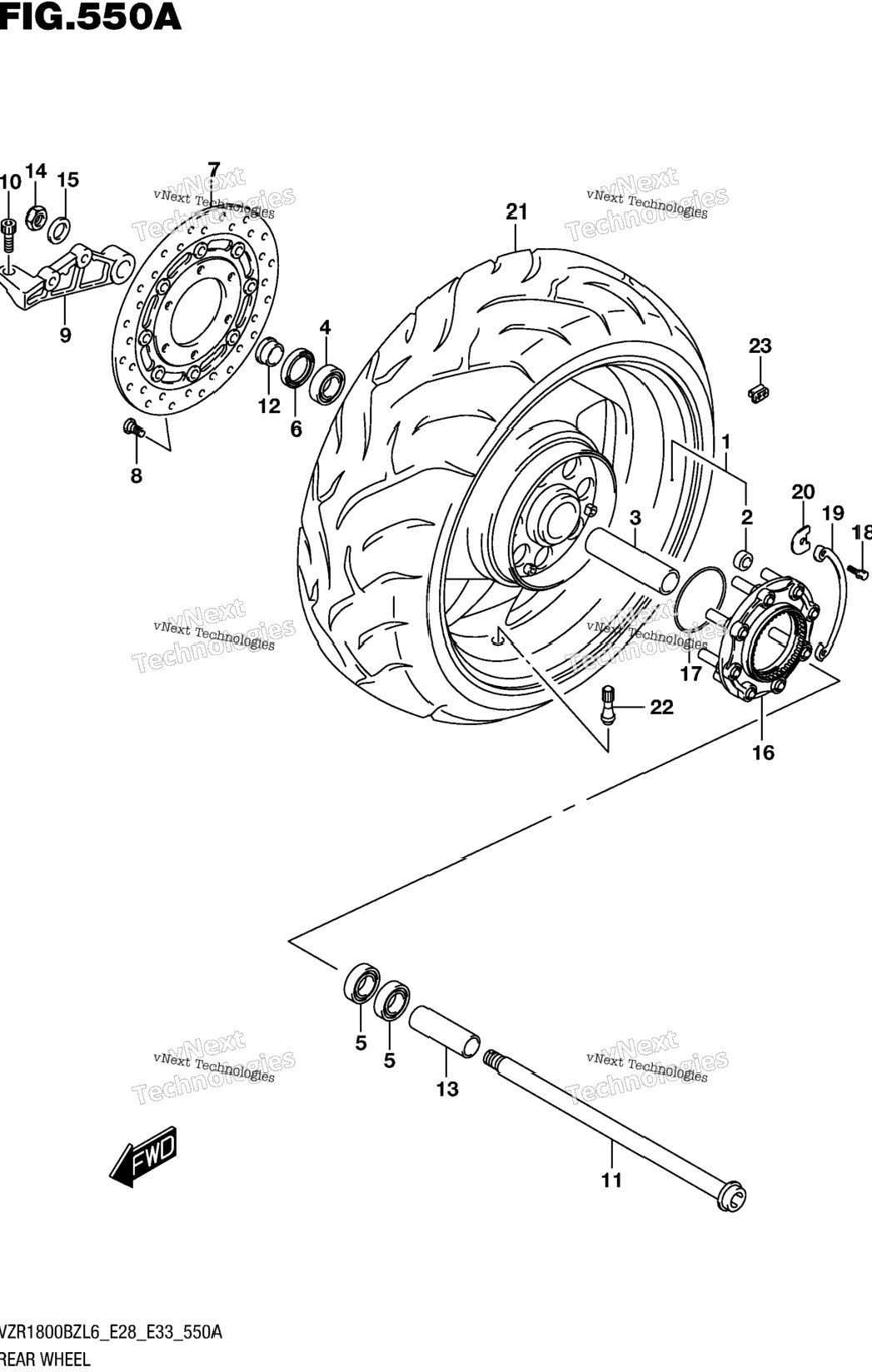

| 1 | 64100-48820-019 | WHEEL,REAR (18M/CXMT8.50,BLAC | 1 шт. | — | |
|
| 2 | 64100-48820-019 | WHEEL,REAR (18M/CXMT8.50,BLAC | 0 шт. | — | |
|
| 3 | 09319-12019 | .BUSH | 8 шт. | — | |
|
| 4 | 64731-48G00 | SPACER, REAR WHEEL BEARING | 1 шт. | — | |
|
| 5 | 09262-25072 | BEARING (25X52X15) RH | 1 шт. | — | |
|
| 6 | 08143-62057 | BEARING LH | 2 шт. | — | |
|
| 7 | 09285-32004 | .SEAL,OIL (32X52X7) | 1 шт. | — | |
|
| 8 | 69210-10F60 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 9 | 09106-08160 | BOLT (8X21) | 6 шт. | — | |
|
| 10 | 69721-48G10 | BRACKET, REAR CALIPER | 0 шт. | — | |
|
| 11 | 09103-12109 | BOLT (12X40) | 1 шт. | — | |
|
| 12 | 64711-48G00 | AXLE, REAR | 1 шт. | — | |
|
| 13 | 64741-48G00 | SPACER, REAR AXLE, RH | 1 шт. | — | |
|
| 14 | 64772-48G00 | SPACER, REAR AXLE, LH | 1 шт. | — | |
|
| 15 | 09159-22007 | NUT | 1 шт. | — | |
|
| 16 | 09160-22081 | WASHER (22X35X2) | 1 шт. | — | |
|
| 17 | 64680-48G00 | JOINT ASSY, REAR HUB DRIVEN | 1 шт. | — | |
|
| 18 | 09280-80001 | O-RING (D:2.4,ID:79.8) | 1 шт. | — | |
|
| 19 | 09119-06049 | BOLT (6X16) | 4 шт. | — | |
|
| 20 | 64679-48G00 | WASHER, REAR HUB DRIVEN JOINT | 2 шт. | — | |
|
| 21 | 64677-48G10 | WASHER, THRUST | 4 шт. | — | |
|
| 22 | 65110-48G01 | TIRE, REAR DUNLOP | 1 шт. | — | |
|
| 23 | 65110-48G01 | (240/40R18M/C 79V D221) | 0 шт. | — | |
|
| 24 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 25 | 55411-22H00 | BALANCER,WHEEL (10G) 10G | 1 шт. | — | |
|
| 26 | 55412-22H00 | BALANCER,WHEEL (20G) 20G | 1 шт. | — | |
|
| 27 | 55413-22H00 | BALANCER,WHEEL (30G) 30G | 1 шт. | — | |
|
