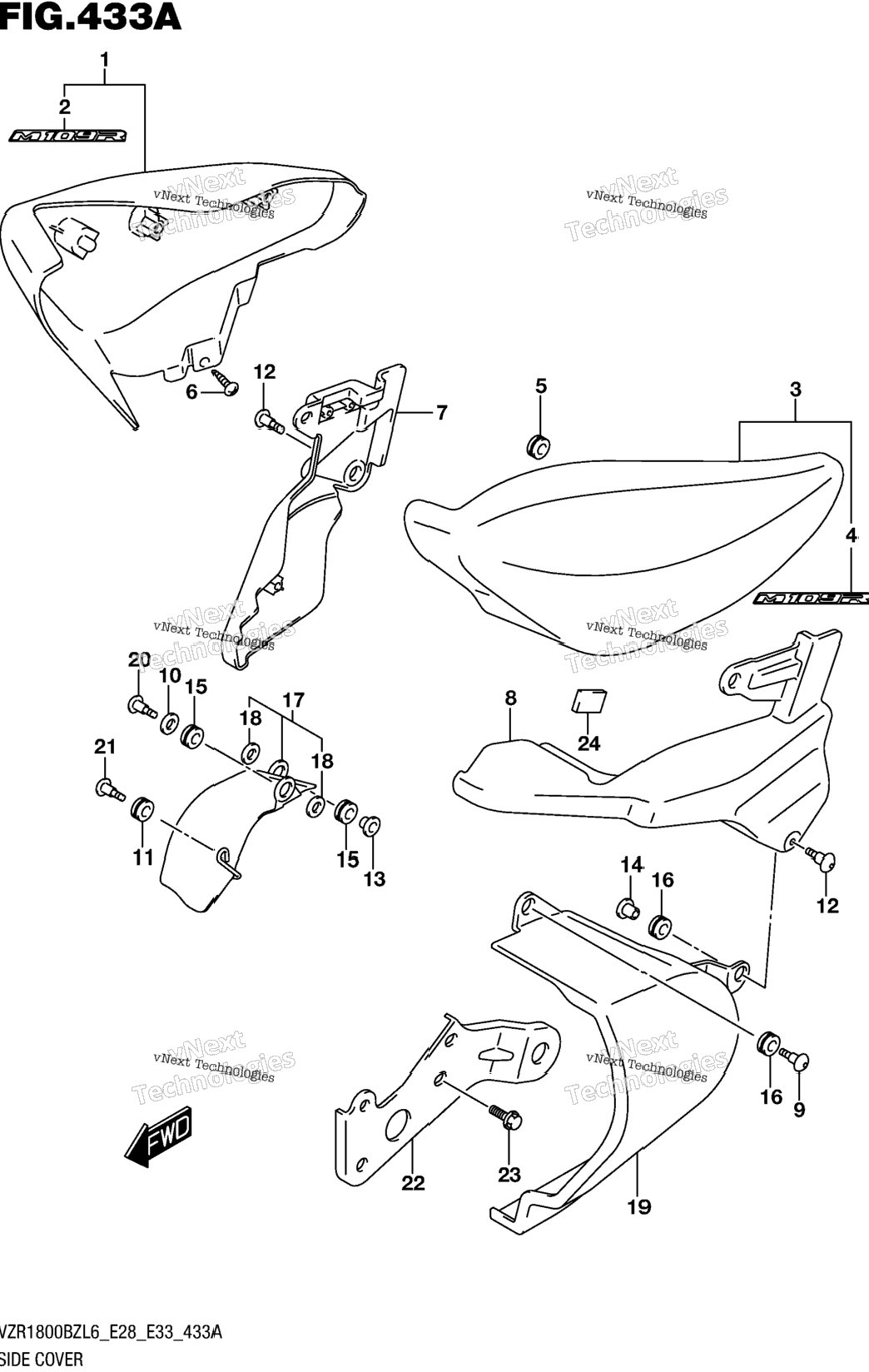

| 1 | 47110-48GA0-PGZ | COVER, FRAME RH (GRAY) FOR PGZ | 0 шт. | — | |
|
| 2 | 47110-48GB0-YKY | COVER, FRAME RH (BLUE) FOR BBD | 1 шт. | — | |
|
| 3 | 68131-48GA0-AHW | .EMBLEM "M109R" (GRAY/BLACK) FOR PGZ | 1 шт. | — | |
|
| 4 | 68131-48GA0-BBJ | .EMBLEM "M109R" (BLUE/GRAY) FOR YKY | 1 шт. | — | |
|
| 5 | 47210-48GA0-PGZ | COVER, FRAME LH (GRAY) FOR PGZ | 1 шт. | — | |
|
| 6 | 47210-48GB0-YKY | COVER, FRAME LH (BLUE) FOR BBD | 1 шт. | — | |
|
| 7 | 68131-48GA0-AHW | .EMBLEM "M109R" (GRAY/BLACK) FOR PGZ | 1 шт. | — | |
|
| 8 | 68131-48GA0-BBJ | .EMBLEM "M109R" (BLUE/GRAY) FOR YKY | 1 шт. | — | |
|
| 9 | 09320-08018 | CUSHION | 2 шт. | — | |
|
| 10 | 03541-0516A | SCREW | 3 шт. | — | |
|
| 11 | 47121-48G00 | COVER, SIDE LOWER RH | 1 шт. | — | |
|
| 12 | 47221-48G00 | COVER, SIDE LOWER LH | 1 шт. | — | |
|
| 13 | 09139-06126 | SCREW (6X20) LH | 2 шт. | — | |
|
| 14 | 09160-10123 | WASHER (10.5X20X2.3) RH | 1 шт. | — | |
|
| 15 | 09320-09501 | CUSHION RH | 1 шт. | — | |
|
| 16 | 09139-06029 | SCREW (6X25) | 2 шт. | — | |
|
| 17 | 09180-06319 | SPACER (6.5X10X11.6) RH | 1 шт. | — | |
|
| 18 | 09169-06075 | WASHER LH | 1 шт. | — | |
|
| 19 | 09320-08021 | CUSHION RH | 2 шт. | — | |
|
| 20 | 09320-08070 | CUSHION LH | 3 шт. | — | |
|
| 21 | 47130-48G50 | COVER, LOWER RH | 1 шт. | — | |
|
| 22 | 47523-41F00 | .WASHER, FRAME COVER | 0 шт. | — | |
|
| 23 | 47231-48G50 | COVER, LOWER LH | 1 шт. | — | |
|
| 24 | 09139-06126 | SCREW (6X20) RH | 1 шт. | — | |
|
| 25 | 09139-06126 | SCREW (6X20) RH | 1 шт. | — | |
|
| 26 | 47250-48G00 | BRACKET, LOWER COVER LH | 0 шт. | — | |
|
| 27 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 28 | 47161-19C00 | CUSHION, SIDE COVER LH | 1 шт. | — | |
|
| 29 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
|
| 30 | SPECIAL NOTE | BBD=YKY(BLUE),YVB(BLACK) | 0 шт. | — | |
|
