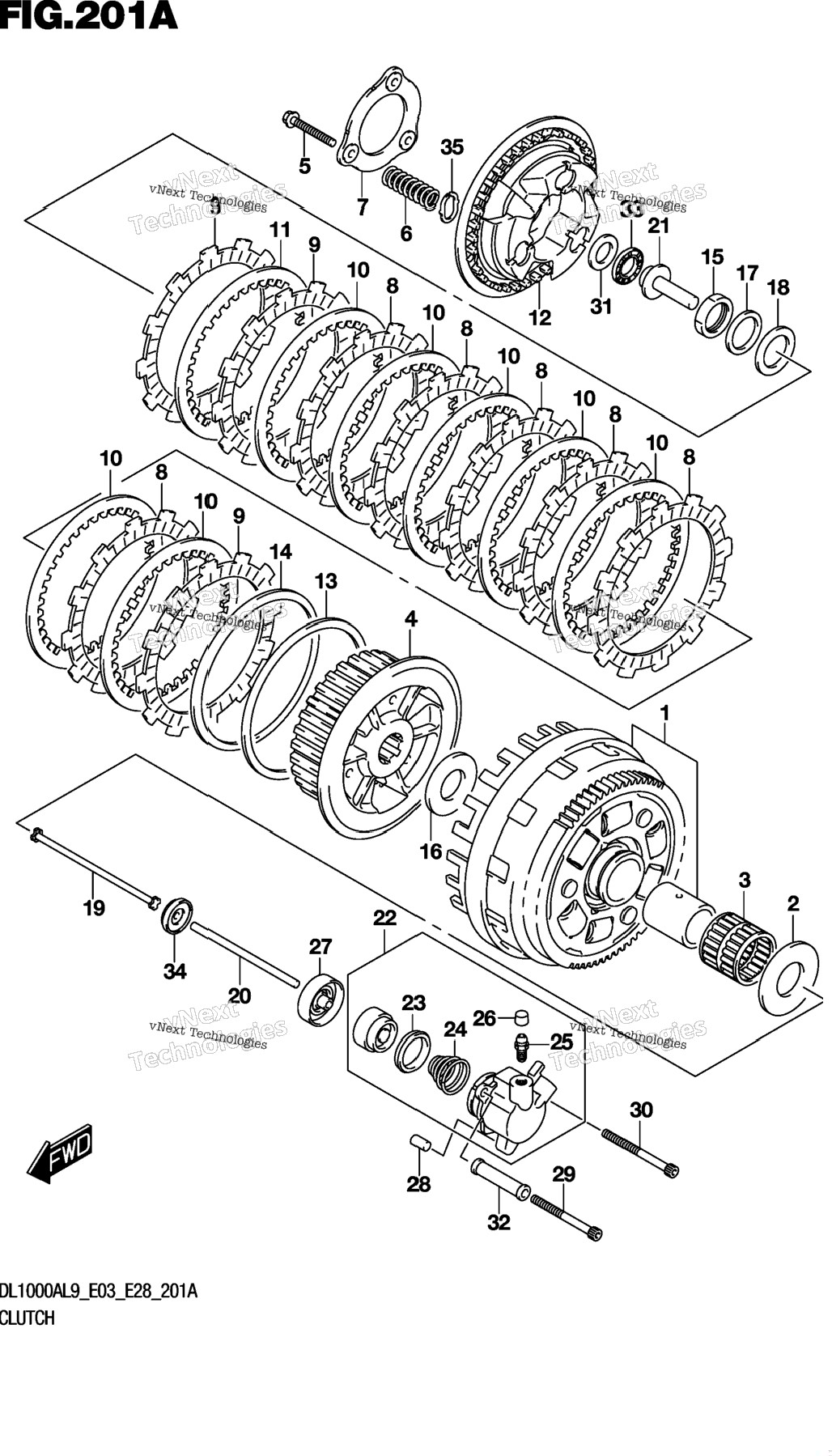

| 1 | 21200-31Y11 | GEAR ASSY, PRIMARY DRIVEN | 1 шт. | — | |
|
| 1 | 21200-31Y11 | GEAR ASSY, PRIMARY DRIVEN | 0 шт. | — | |
|
| 2 | 09160-25074 | WASHER (25X52X2.5) | 1 шт. | — | |
|
| 3 | 09263-35013 | BEARING (35X40X39.8) | 1 шт. | — | |
|
| 4 | 21411-31J10 | HUB,CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21412-31J00 | BOLT,CLUTCH SPRING | 3 шт. | — | |
|
| 6 | 21413-31J00 | SPRING,CLUTCH | 3 шт. | — | |
|
| 7 | 21414-31J00 | PLATE,STOPPER | 1 шт. | — | |
|
| 8 | 21441-31J00 | PLATE,CLUTCH DRIVE NO.1 (T:3. | 0 шт. | — | |
|
| 8 | 21441-31J00 | PLATE,CLUTCH DRIVE NO.1 (T:3. | 6 шт. | — | |
|
| 9 | 21442-31J00 | PLATE,CLUTCH DRIVE NO.2 (T:3. | 0 шт. | — | |
|
| 9 | 21442-31J00 | PLATE,CLUTCH DRIVE NO.2 (T:3. | 3 шт. | — | |
|
| 10 | 21451-24F00 | PLATE,CLUTCH DRIVEN NO.1 (T:2 | 7 шт. | — | |
|
| 11 | 21452-31J00 | PLATE,CLUTCH DRIVEN NO.2 (T:2 | 1 шт. | — | |
|
| 12 | 21462-31J10 | DISC,CLUTCH PRESSURE | 1 шт. | — | |
|
| 13 | 21471-24F00 | SEAT,WAVE WASHER | 1 шт. | — | |
|
| 14 | 21472-24F00 | WASHER,CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 15 | 09159-24010 | NUT | 1 шт. | — | |
|
| 16 | 09160-25056 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 17 | 09164-24008 | WASHER (24.2X35X2.7) | 1 шт. | — | |
|
| 18 | 09181-25223 | SHIM (25X38X1) | 1 шт. | — | |
|
| 19 | 23110-27A00 | ROD,CLUTCH (L:161) | 1 шт. | — | |
|
| 20 | 23111-26D00 | ROD,CLUTCH PUSH,L (L:132.5) | 1 шт. | — | |
|
| 21 | 23121-31E00 | PIECE,CLUTCH PUSH | 1 шт. | — | |
|
| 22 | 23160-06G20 | CYLINDER, CLUTCH RELEASE | 1 шт. | — | |
|
| 23 | 23163-06B00 | .CUP | 1 шт. | — | |
|
| 24 | 23164-05A00 | .SPRING | 1 шт. | — | |
|
| 25 | 59121-01A00 | .BLEEDER | 1 шт. | — | |
|
| 26 | 59122-46H00 | .CAP, BLEEDER | 1 шт. | — | |
|
| 27 | 23166-06G10 | COVER,DUST | 1 шт. | — | |
|
| 28 | 04221-08149 | PIN | 1 шт. | — | |
|
| 29 | 07130-0665A | BOLT | 1 шт. | — | |
|
| 30 | 07130-0670A | BOLT, CL RLSE CYL | 1 шт. | — | |
|
| 31 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 32 | 23171-06G00 | SPACER,CL RLSE CYL | 1 шт. | — | |
|
| 33 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 34 | 09283-06008 | OIL SEAL (6X34X10.5) | 1 шт. | — | |
|
| 35 | 21415-31J00 | SEAT,CLUTCH SPRING | 3 шт. | — | |
|
