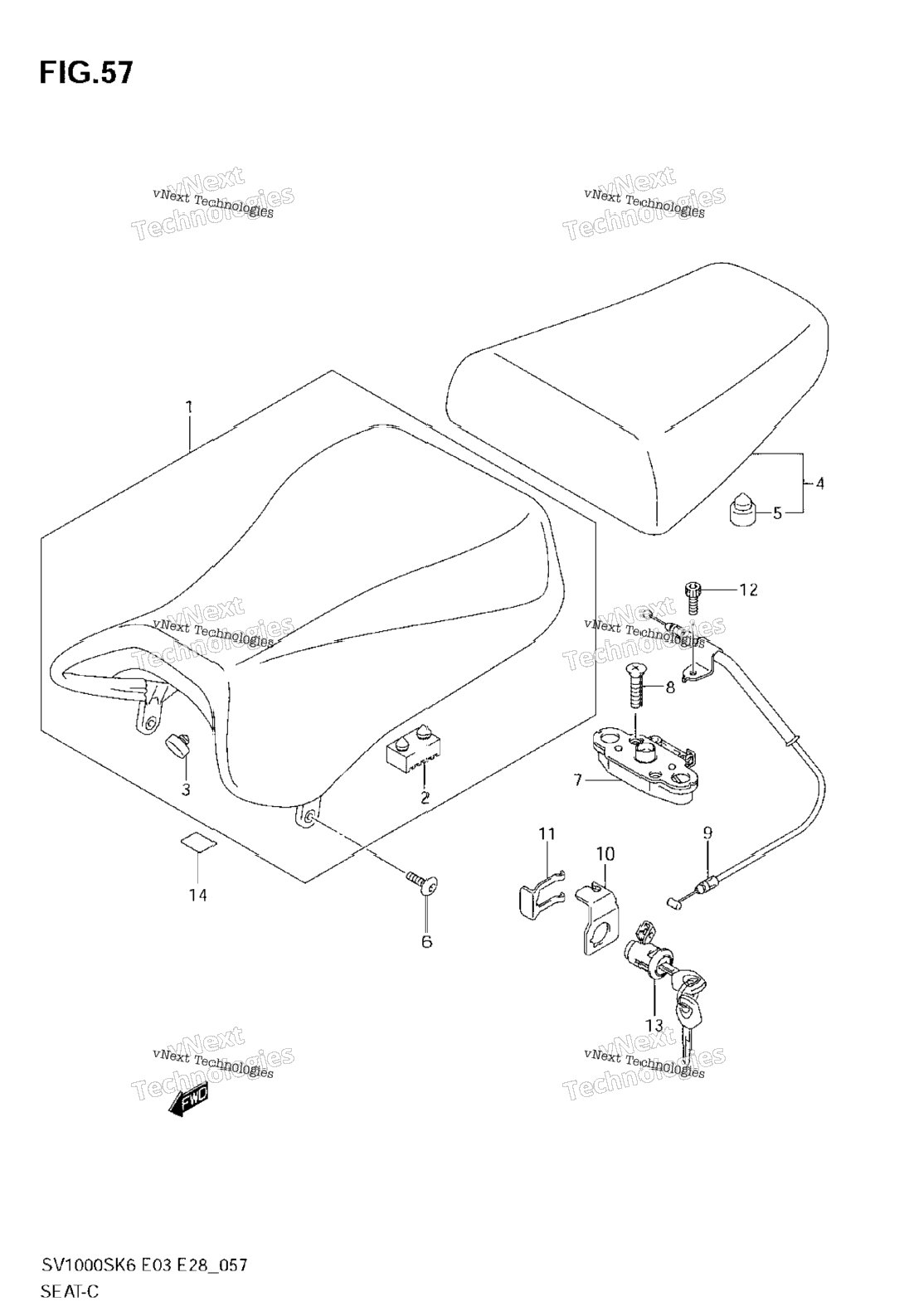

| 1 | 45100-16G31-W05 | SEAT ASSY Includes Item(s) 2 - 3 | 0 шт. | — | |
|
| 2 | 45149-42F00 | CUSHION | 2 шт. | — | |
|
| 3 | 45148-16700 | CUSHION | 1 шт. | — | |
|
| 4 | 45300-16G00-W05 | SEAT ASSY, PILLION Includes Item(s) 5 | 1 шт. | — | |
|
| 5 | 09321-10019 | CUSHION | 2 шт. | — | |
|
| 6 | 09106-06064 | BOLT, SEAT | 2 шт. | — | |
|
| 7 | 45220-20A01 | BRACKET, SEAT REAR | 1 шт. | — | |
|
| 8 | 02122-06353 | SCREW MODEL K6 | 2 шт. | — | |
|
| 9 | 02122-0635B | SCREW MODEL K7 | 2 шт. | — | |
|
| 10 | 45280-16G00 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 11 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 12 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 13 | 07130-06163 | BOLT, SEAT LOCK CABLE MODEL K6 | 1 шт. | — | |
|
| 14 | 07130-0616B | BOLT, SEAT LOCK CABLE MODEL K7 | 1 шт. | — | |
|
| 15 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 16 | 45517-16G20 | TAPE, FUEL TANK | 2 шт. | — | |
|
