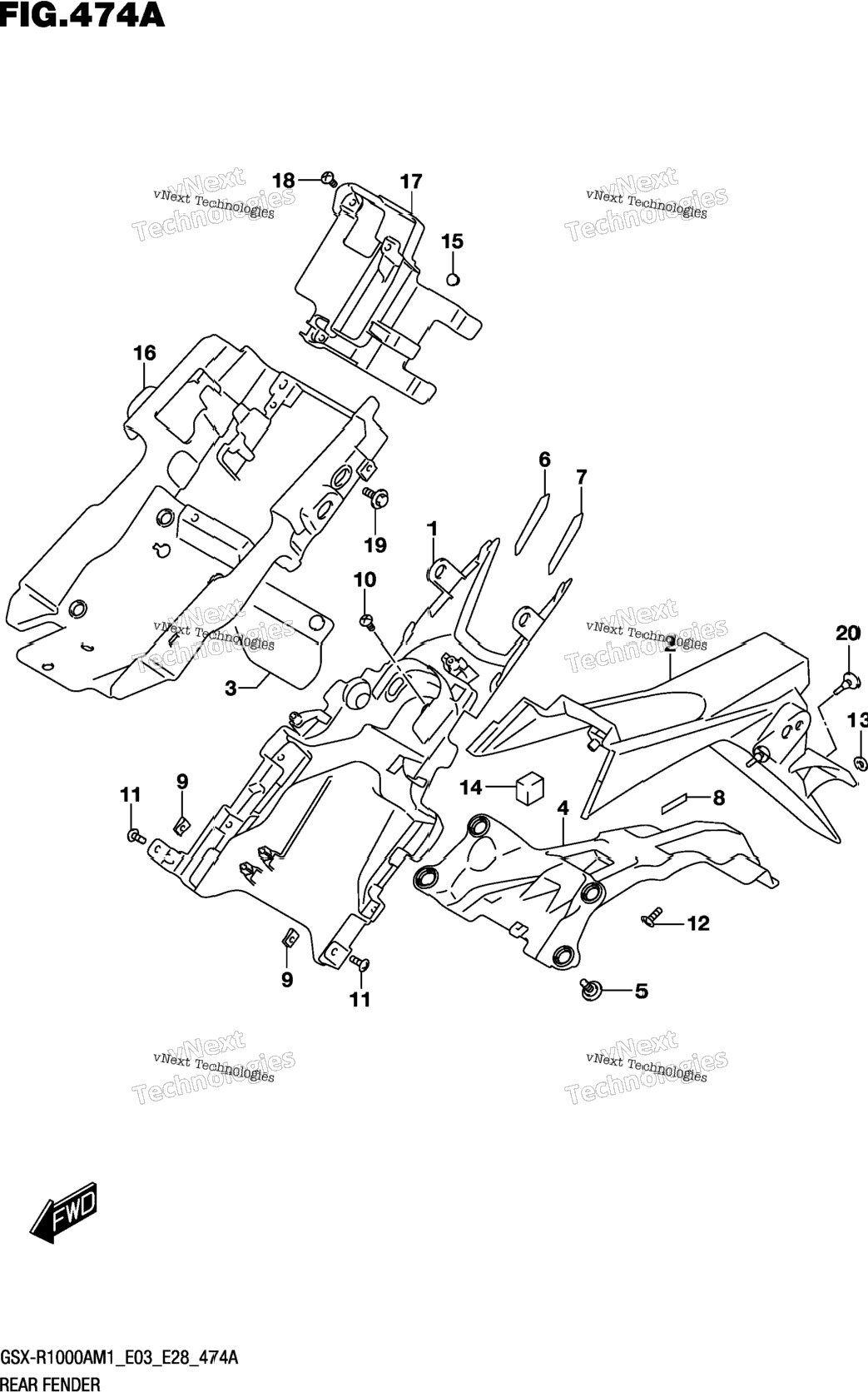

| 1 | 63111-17K00 | FENDER,REAR FRONT | 1 шт. | — | |
|
| 2 | 63113-17K00 | FENDER,REAR REAR | 1 шт. | — | |
|
| 3 | 63114-17K00 | MUDGUARD,REAR FENDER | 1 шт. | — | |
|
| 4 | 63116-17K00 | FENDER,REAR REAR INNER | 1 шт. | — | |
|
| 5 | 63117-17K00 | BOLT,REAR FENDER REAR | 4 шт. | — | |
|
| 6 | 63121-17K00 | TAPE,REAR COMB,R | 1 шт. | — | |
|
| 7 | 63122-17K00 | TAPE,REAR COMB,L | 1 шт. | — | |
|
| 8 | 94443-06G00 | TAPE (6X25X0.13) | 2 шт. | — | |
|
| 9 | 09148-05038 | NUT (M5) | 2 шт. | — | |
|
| 10 | 03541-0512A | SCREW | 1 шт. | — | |
|
| 11 | 03541-0516A | SCREW | 3 шт. | — | |
|
| 12 | 03541-0516B | SCREW | 5 шт. | — | |
|
| 13 | 08322-0106A | WASHER | 2 шт. | — | |
|
| 14 | 33652-05G20 | CUSHION,RR LAMP (17X17X12) | 2 шт. | — | |
|
| 15 | 45148-27J00 | CUSHION,SEAT MOUNT | 1 шт. | — | |
|
| 16 | 47431-17K00 | HOLDER,BATTERY | 1 шт. | — | |
|
| 17 | 47441-17K10 | HOLDER,ELECTRIC PARTS | 0 шт. | — | |
|
| 18 | 09111-06081 | BOLT (6X18) | 2 шт. | — | |
|
| 19 | 03541-0516A | SCREW | 2 шт. | — | |
|
| 20 | 09321-06026 | CUSHION | 1 шт. | — | |
|
