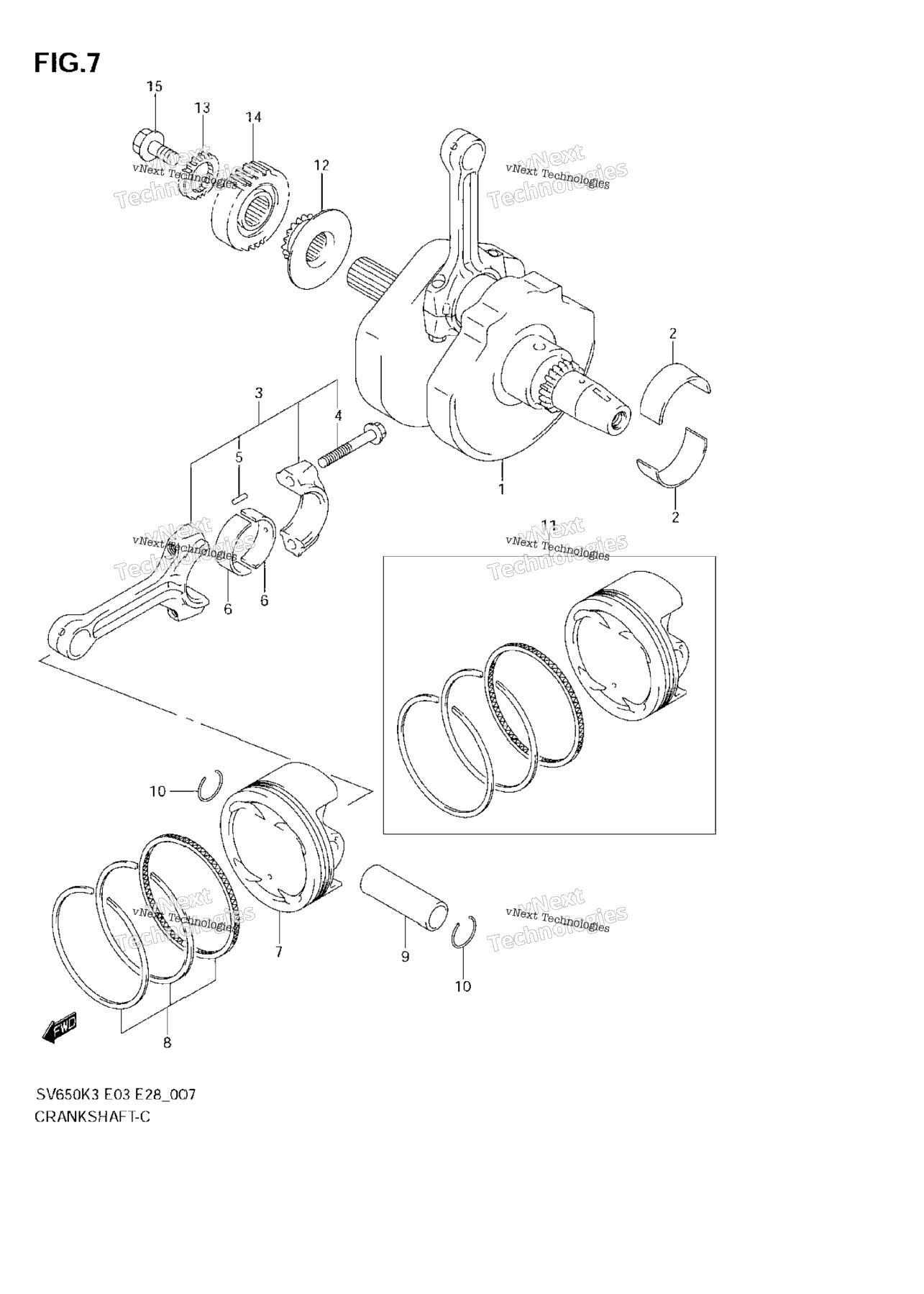

| 1 | 12220-17G00 | CRANKSHAFT SET | 1 шт. | — | |
|
| 2 | 12229-19F10-0B0 | BEARING, CRANKSHAFT (BLACK) MODEL K3 | 4 шт. | — | |
|
| 2 | 12229-27G00-0B0 | BEARING, CRANKSHAFT (BLACK) MODEL K4/K5/K6/K7 | 4 шт. | — | |
|
| 2 | 12229-19F10-0C0 | BEARING, CRANKSHAFT (BROWN) MODEL K3 | 4 шт. | — | |
|
| 2 | 12229-27G00-0C0 | BEARING, CRANKSHAFT (BROWN) MODEL K4/K5/K6/K7 | 4 шт. | — | |
|
| 2 | 12229-19F10-0A0 | BEARING, CRANKSHAFT (GREEN) MODEL K3 | 4 шт. | — | |
|
| 2 | 12229-27G00-0A0 | BEARING, CRANKSHAFT (GREEN) MODEL K4/K5/K6/K7 | 4 шт. | — | |
|
| 3 | 12160-17G00 | CONNECTING ROD ASSY MODEL K3/K4/K5/K6 | 2 шт. | — | |
|
| 3 | 12160-17G10 | CONNECTING ROD ASSY MODEL K7; Includes Item(s) 4 - 5 | 2 шт. | — | |
|
| 4 | 12163-24F00 | BOLT, CONNECTING ROD MODEL K3/K4/K5/K6 | 4 шт. | — | |
|
| 4 | 12163-24F10 | BOLT, CONNECTING ROD MODEL K7 | 4 шт. | — | |
|
| 5 | 12165-27A50 | PIN, CONNECTING ROD | 4 шт. | — | |
|
| 6 | 12164-46E01-0B0 | BEARING, CRANK PIN (BLACK) | 4 шт. | — | |
|
| 6 | 12164-46E01-0C0 | BEARING, CRANK PIN (BROWN) | 4 шт. | — | |
|
| 6 | 12164-46E01-0A0 | BEARING, CRANK PIN (GREEN) | 4 шт. | — | |
|
| 6 | 12164-46E01-0D0 | BEARING, CRANK PIN (YELLOW) | 4 шт. | — | |
|
| 7 | 12111-20F00-0F0 | PISTON MODEL K3/K4/K5/K6 | 2 шт. | — | |
|
| 7 | 12111-20F10-0F0 | PISTON MODEL K7 | 2 шт. | — | |
|
| 8 | 12140-17G00 | RING SET, PISTON MODEL K3/K4/K5/K6 | 2 шт. | — | |
|
| 8 | 12140-17G20 | RING SET, PISTON MODEL K7 | 2 шт. | — | |
|
| 9 | 12151-05A00 | PIN,PISTON | 2 шт. | — | |
|
| 10 | 09381-20004 | CIRCLIP | 4 шт. | — | |
|
| 11 | 12100-17G00-050 | PISTON SET (OS:0.5) OPT MODEL K3/K4/K5/K6 | 2 шт. | — | |
|
| 11 | 12100-17G20-050 | PISTON SET (OS:0.5) OPT MODEL K7 | 2 шт. | — | |
|
| 12 | 12731-19F00 | SPROCKET, CAM CHAIN DRIVE | 0 шт. | — | |
|
| 13 | 17451-17G00 | GEAR, WATER PUMP DRIVE | 1 шт. | — | |
|
| 14 | 21111-20F00 | GEAR, PRIMARY DRIVE MODEL K3/K4 | 0 шт. | — | |
|
| 14 | 21111-20F10 | GEAR, PRIMARY DRIVE MODEL K5/K6/K7 | 0 шт. | — | |
|
| 15 | 09103-10338 | BOLT, PRIMARY DRIVE GEAR | 1 шт. | — | |
|
