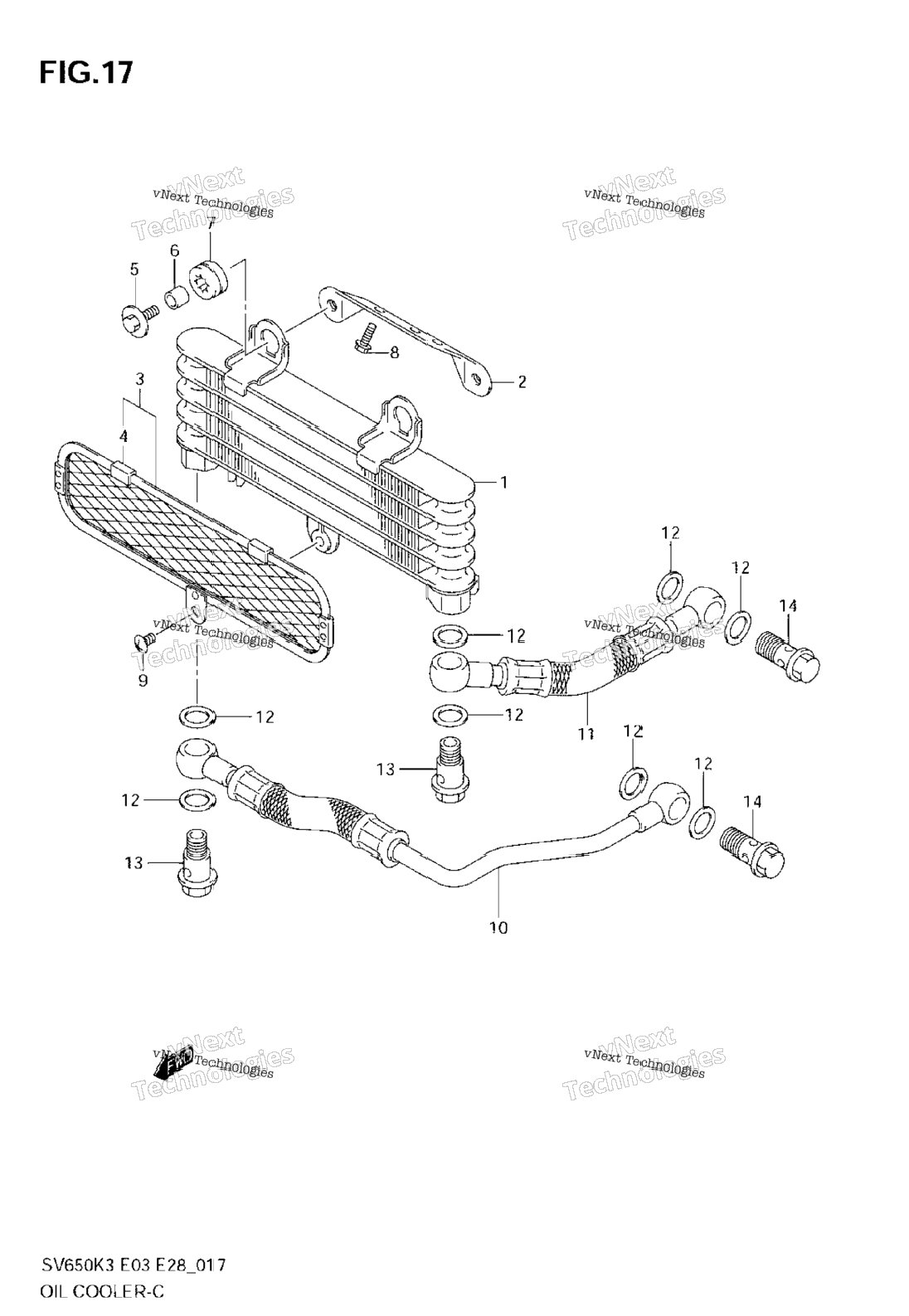

| 1 | 16600-17G00 | COOLER ASSY, OIL MODEL K3 | 0 шт. | — | |
|
| 1 | 16600-27G00 | COOLER ASSY, OIL MODEL K4/K5/K6/K7 | 1 шт. | — | |
|
| 2 | 16620-17G00 | BRACKET, OIL COOLER MODEL K3 | 0 шт. | — | |
|
| 2 | 16620-27G00 | BRACKET, OIL COOLER MODEL K4/K5/K6/K7 | 1 шт. | — | |
|
| 3 | 16650-17G00 | GUARD COMP, OIL COOLER MODEL K3 | 0 шт. | — | |
|
| 3 | 16650-27G01 | GUARD COMP, OIL COOLER MODEL K4/K5/K6/K7; Includes Item(s) 4 | 1 шт. | — | |
|
| 4 | 17765-09F00 | PROTECTOR | 2 шт. | — | |
|
| 5 | 09116-06167 | BOLT | 2 шт. | — | |
|
| 6 | 09180-06310 | SPACER | 2 шт. | — | |
|
| 7 | 09320-09009 | CUSHION | 2 шт. | — | |
|
| 8 | 01550-06163 | BOLT | 1 шт. | — | |
|
| 9 | 02142-05103 | SCREW | 1 шт. | — | |
|
| 10 | 16460-17G00 | HOSE, OIL COOLER RH | 1 шт. | — | |
|
| 11 | 16470-17G00 | HOSE, OIL COOLER LH | 1 шт. | — | |
|
| 12 | 09168-14011 | GASKET, OIL COOLER HOSE MODEL K3 | 8 шт. | — | |
|
| 12 | 09168-14015 | GASKET, OIL COOLER HOSE MODEL K4/K5/K6/K7 | 8 шт. | — | |
|
| 13 | 09360-12012 | BOLT | 2 шт. | — | |
|
| 14 | 09360-14012 | BOLT | 2 шт. | — | |
|
