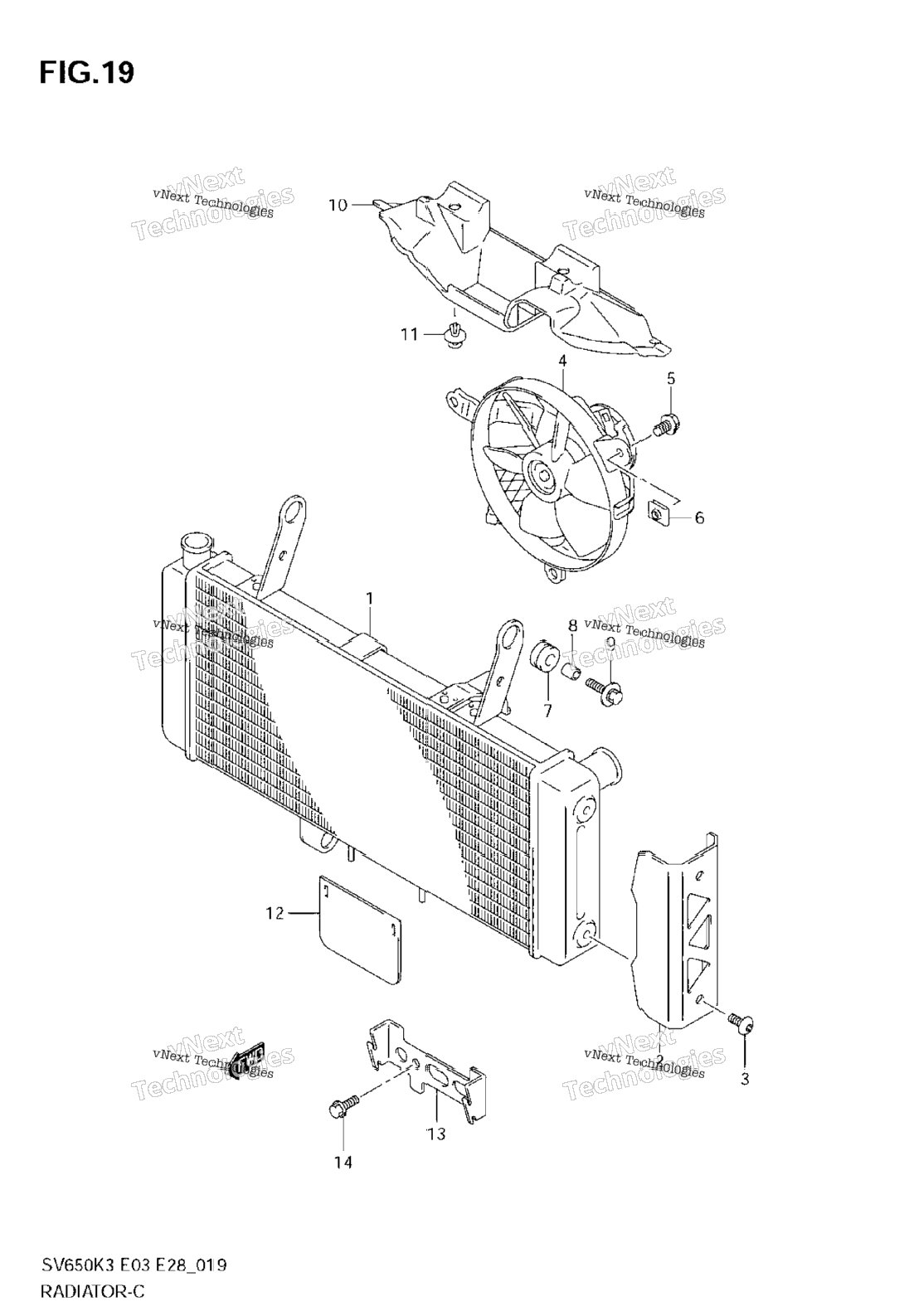

| 1 | 17710-17G00 | RADIATOR ASSY, WATER SV650K3 | 0 шт. | — | |
|
| 2 | 17710-17G10 | RADIATOR ASSY, WATER SV650SK3 | 1 шт. | — | |
|
| 3 | 17710-17G20 | RADIATOR ASSY, WATER SV650K4 | 0 шт. | — | |
|
| 4 | 17710-17G30 | RADIATOR ASSY, WATER SV650SK4 | 1 шт. | — | |
|
| 5 | 17710-17G40 | RADIATOR ASSY, WATER MODEL K5/K6/K7 | 1 шт. | — | |
|
| 6 | 17761-17G00 | COVER, RADIATOR | 2 шт. | — | |
|
| 7 | 09139-06027 | .SCREW (6X12) | 4 шт. | — | |
|
| 8 | 17800-17G00 | FAN ASSY, RADIATOR MODEL K3/K4 | 1 шт. | — | |
|
| 9 | 17800-17G40 | FAN ASSY, RADIATOR MODEL K5/K6/K7 | 1 шт. | — | |
|
| 10 | 01550-06103 | BOLT | 3 шт. | — | |
|
| 11 | 17712-40F00 | NUT, FAN ASSY | 2 шт. | — | |
|
| 12 | 09320-10042 | CUSHION MODEL K3 | 3 шт. | — | |
|
| 13 | 09320-10051 | CUSHION MODEL K4/K5/K6/K7 | 3 шт. | — | |
|
| 14 | 09180-06290 | SPACER (6.5X10X12) | 2 шт. | — | |
|
| 15 | 09118-06097 | BOLT (6X25) | 2 шт. | — | |
|
| 16 | 17771-17G00 | SHIELD, RADIATOR HEAT MODEL K3/K4 | 0 шт. | — | |
|
| 17 | 17771-17G11 | SHIELD, RADIATOR HEAT MODEL K5/K6/K7 | 1 шт. | — | |
|
| 18 | 09409-06313 | CLIP | 2 шт. | — | |
|
| 19 | 17781-17G00 | RUBBER, RADIATOR UNDER | 1 шт. | — | |
|
| 20 | 17741-17G00 | BRACKET, RADIATOR UNDER RUBBER MODEL K5/K6 | 1 шт. | — | |
|
| 21 | 01550-06103 | BOLT MODEL K5/K6/K7 | 1 шт. | — | |
|
