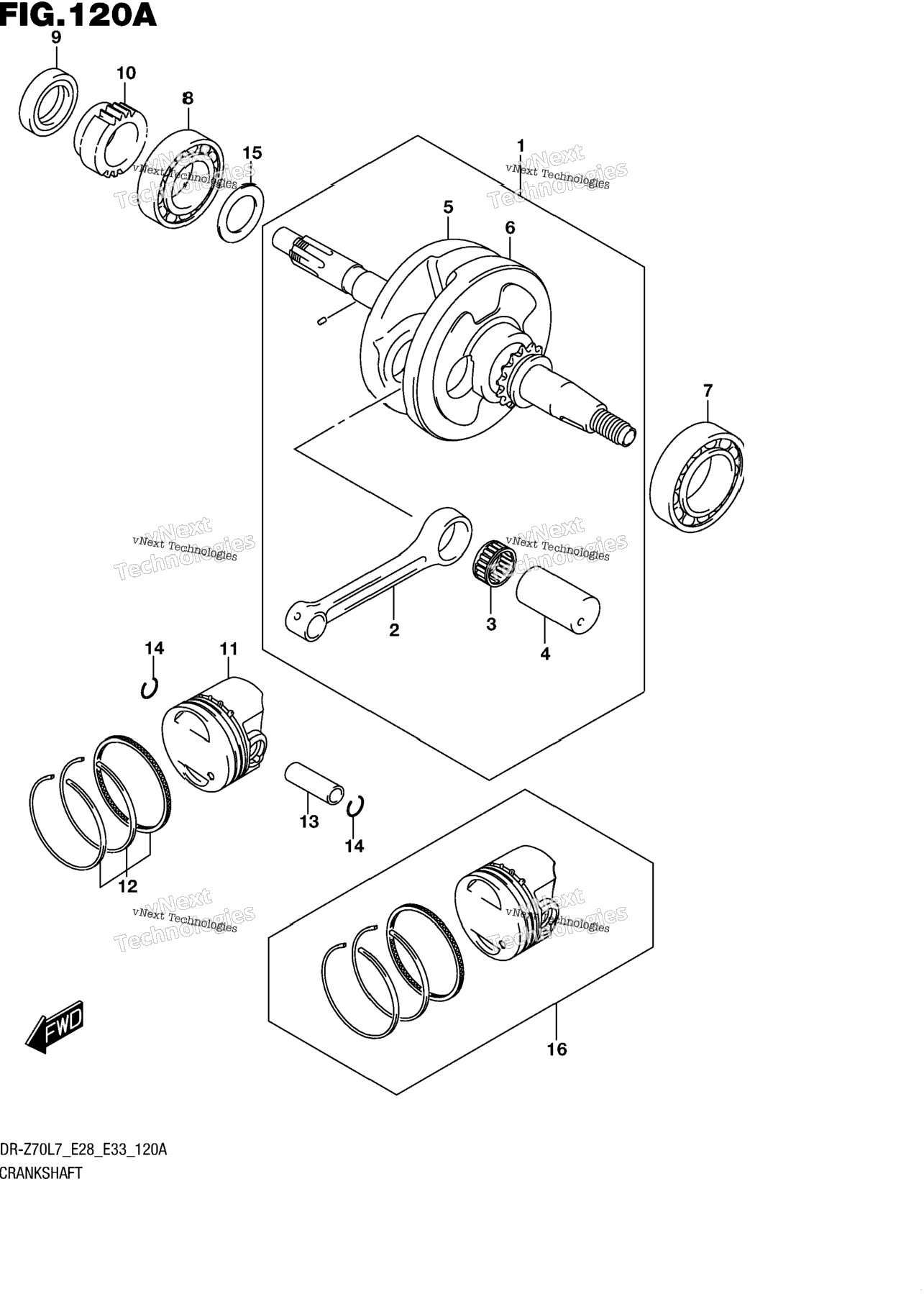

| 1 | 12200-14H01 | CRANKSHAFT ASSY | 1 шт. | — | |
|
| 2 | 12161-14H00-0C0 | .CONNROD | 0 шт. | — | |
|
| 3 | 12211-09403-0A0 | .PIN | 0 шт. | — | |
|
| 4 | 09263-22072-0B0 | .BEARING (22X28X14) | 1 шт. | — | |
|
| 5 | 12220-14H00 | .CRANKSHAFT RH | 0 шт. | — | |
|
| 6 | 12260-14H01 | .CRANKSHAFT LH | 0 шт. | — | |
|
| 7 | 09262-35021-0A0 | BEARING (35X62X14) | 1 шт. | — | |
|
| 8 | 09262-20073 | BEARING (20X52X15) | 1 шт. | — | |
|
| 9 | 09282-20005 | OIL SEAL (20X32X7) | 1 шт. | — | |
|
| 10 | 16321-09411 | GEAR, OIL PUMP DRIVE (NT:17) | 0 шт. | — | |
|
| 11 | 12111-14H00-0F0 | PISTON | 1 шт. | — | |
|
| 12 | 12140-09D20 | RING SET, PISTON | 1 шт. | — | |
|
| 13 | 12151-02A00 | PIN, PISTON | 1 шт. | — | |
|
| 14 | 09381-13001 | SNAP RING | 2 шт. | — | |
|
| 15-1 | 09181-20187 | SHIM,20X30X0.6 (T:0.60) | 0 шт. | — | |
|
| 15-10 | 09181-20197 | SHIM,20X30X1.05 (T:1.05) | 0 шт. | — | |
|
| 15-11 | 09181-20200 | SHIM,20X30X1.1 (T:1.10) | 0 шт. | — | |
|
| 15-12 | 09181-20202 | SHIM,20X30X1.15 (T:1.15) | 0 шт. | — | |
|
| 15-13 | 09181-20204 | SHIM,20X30X1.2 (T:1.20) | 0 шт. | — | |
|
| 15-14 | 09181-20207 | SHIM,20X30X1.25 (T:1.25) | 0 шт. | — | |
|
| 15-15 | 09181-20209 | SHIM,20X30X1.3 (T:1.30) | 0 шт. | — | |
|
| 15-2 | 09181-20009 | SHIM,20X30X0.65 (T:0.65) | 0 шт. | — | |
|
| 15-3 | 09181-20188 | SHIM,20X30X0.7 (T:0.70) | 0 шт. | — | |
|
| 15-4 | 09181-20189 | SHIM,20X30X0.75 (T:0.75) | 0 шт. | — | |
|
| 15-5 | 09181-20190 | SHIM,20X30X0.8 (T:0.80) | 0 шт. | — | |
|
| 15-6 | 09181-20191 | SHIM,20X30X0.85 (T:0.85) | 0 шт. | — | |
|
| 15-7 | 09181-20192 | SHIM,20X30X0.9 (T:0.90) | 0 шт. | — | |
|
| 15-8 | 09181-20193 | SHIM,20X30X1.95 (T:0.95) | 0 шт. | — | |
|
| 15-9 | 09181-20195 | SHIM (T:1.00) | 1 шт. | — | |
|
| 16 | 12100-14H00-050 | PISTON SET (OS:0.5) OPT | 1 шт. | — | |
|
