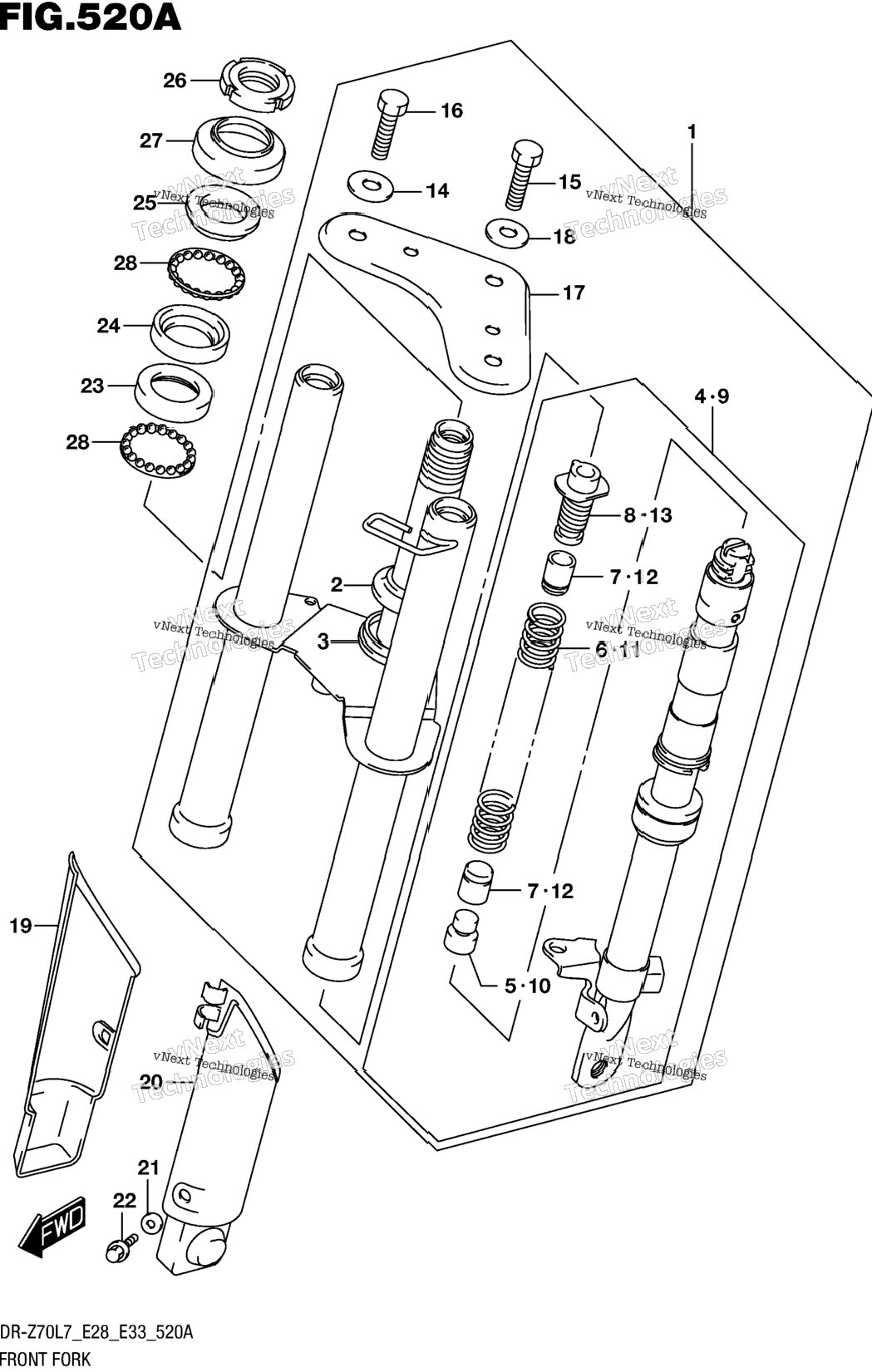

| 1 | 51100-14821 | FORK SET, FRONT | 1 шт. | — | |
|
| 2 | 51622-14H00 | .RACE, STEERING OUTER | 0 шт. | — | |
|
| 3 | 51644-14H00 | .SEAL, STEERING LOWER | 1 шт. | — | |
|
| 4 | 51110-14H00 | RH | 0 шт. | — | |
|
| 4 | 51110-14H00 | .TUBE ASSY, FRONT FORK LOWER | 1 шт. | — | |
|
| 9 | 51120-14H00 | LH | 0 шт. | — | |
|
| 9 | 51120-14H00 | .TUBE ASSY, FRONT FORK LOWER | 1 шт. | — | |
|
| 10 | 51116-14H00 | ..STOPPER | 1 шт. | — | |
|
| 10 | 51116-14H00 | ..STOPPER | 1 шт. | — | |
|
| 11 | 51171-14H00 | ..SPRING | 1 шт. | — | |
|
| 11 | 51171-14H00 | ..SPRING | 1 шт. | — | |
|
| 12 | 51292-14H00 | ..STOPPER RUBBER | 2 шт. | — | |
|
| 12 | 51292-14H00 | ..STOPPER RUBBER | 2 шт. | — | |
|
| 13 | 51422-14H00 | ..SPRING, JOINT B | 0 шт. | — | |
|
| 13 | 51422-14H00 | ..SPRING, JOINT B | 0 шт. | — | |
|
| 14 | 09160-10144 | .WASHER (10X30X2.5) | 2 шт. | — | |
|
| 16 | 01550-1035A | .BOLT CENTER | 1 шт. | — | |
|
| 16 | 01550-1035A | .BOLT SIDE | 2 шт. | — | |
|
| 17 | 51310-14H00 | .BRACKET, UPPER | 1 шт. | — | |
|
| 18 | 09160-10128-XC0 | WASHER (10.5X25X3.2) | 1 шт. | — | |
|
| 19 | 51501-14H00-019 | (BLACK) | 0 шт. | — | |
|
| 19 | 51501-14H00-019 | PROTECTOR, FRONT FORK RH | 1 шт. | — | |
|
| 20 | 51511-14H00-019 | (BLACK) | 0 шт. | — | |
|
| 20 | 51511-14H00-019 | PROTECTOR, FRONT FORK LH | 1 шт. | — | |
|
| 21 | 09169-06071 | WASHER | 4 шт. | — | |
|
| 22 | 01547-0612A | BOLT | 4 шт. | — | |
|
| 23 | 51611-14H00 | RACE, STEERING INNER LOWER | 1 шт. | — | |
|
| 24 | 51611-20002 | RACE, STEERING INNER UPPER | 1 шт. | — | |
|
| 25 | 51621-28000 | RACE, STEERING OUTER | 1 шт. | — | |
|
| 26 | 51631-28000 | NUT, STEERING STEM | 1 шт. | — | |
|
| 27 | 51643-25001 | SEAL, STEERING UPPER | 1 шт. | — | |
|
| 28 | 09269-27001 | BEARING (27X40.5X5) | 2 шт. | — | |
|
