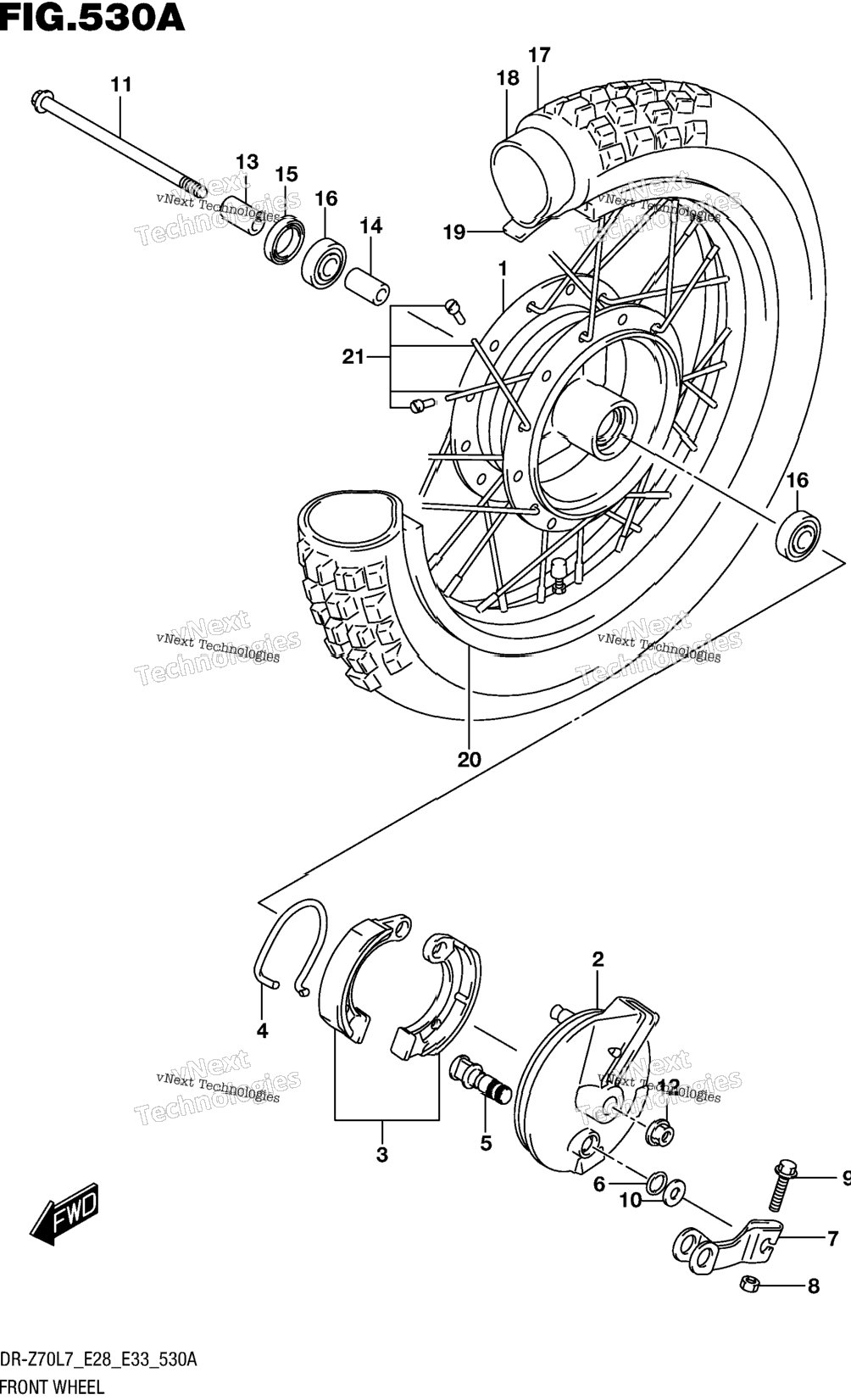

| 1 | 54110-14H00 | DRUM, FRONT HUB | 1 шт. | — | |
|
| 2 | 54210-14H00 | PANEL, FRONT BRAKE ANCHOR | 0 шт. | — | |
|
| 3 | 54400-14870 | SHOE SET, BRAKE | 1 шт. | — | |
|
| 4 | 54424-14H00 | SPRING,BRAKE SHOE | 1 шт. | — | |
|
| 5 | 54440-14H00 | SHAFT, BRAKE CAM | 1 шт. | — | |
|
| 6 | 09280-10006 | O RING (D:2.4,ID:9.8) | 1 шт. | — | |
|
| 7 | 54451-14H00 | LEVER, BRAKE CAM | 1 шт. | — | |
|
| 8 | 08310-0005A | .NUT | 1 шт. | — | |
|
| 9 | 01550-0525A | BOLT | 1 шт. | — | |
|
| 10 | 09160-10121 | WASHER (10.5X18X1) | 1 шт. | — | |
|
| 11 | 54711-14H00 | AXLE, FRONT | 1 шт. | — | |
|
| 12 | 08319-3112A | NUT | 1 шт. | — | |
|
| 13 | 54741-14H00 | SPACER, AXLE RH | 0 шт. | — | |
|
| 14 | 54731-14H00 | SPACER, FRONT HUB BEARING | 0 шт. | — | |
|
| 15 | 09282-20008 | OIL SEAL (32X20X5) | 1 шт. | — | |
|
| 16 | 08133-62017 | BEARING | 2 шт. | — | |
|
| 17 | 55100-14H00 | (2.50-10 33J) IRC | 0 шт. | — | |
|
| 17 | 55100-14H00 | TIRE, FRONT IX07S | 1 шт. | — | |
|
| 18 | 55200-14H00 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 19 | 55261-14H10 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 20 | 55311-14H00 | RIM, WHEEL (10X1.40) | 1 шт. | — | |
|
| 21 | 55320-14H00 | SPOKE SET, FRONT WHEEL | 1 шт. | — | |
|
