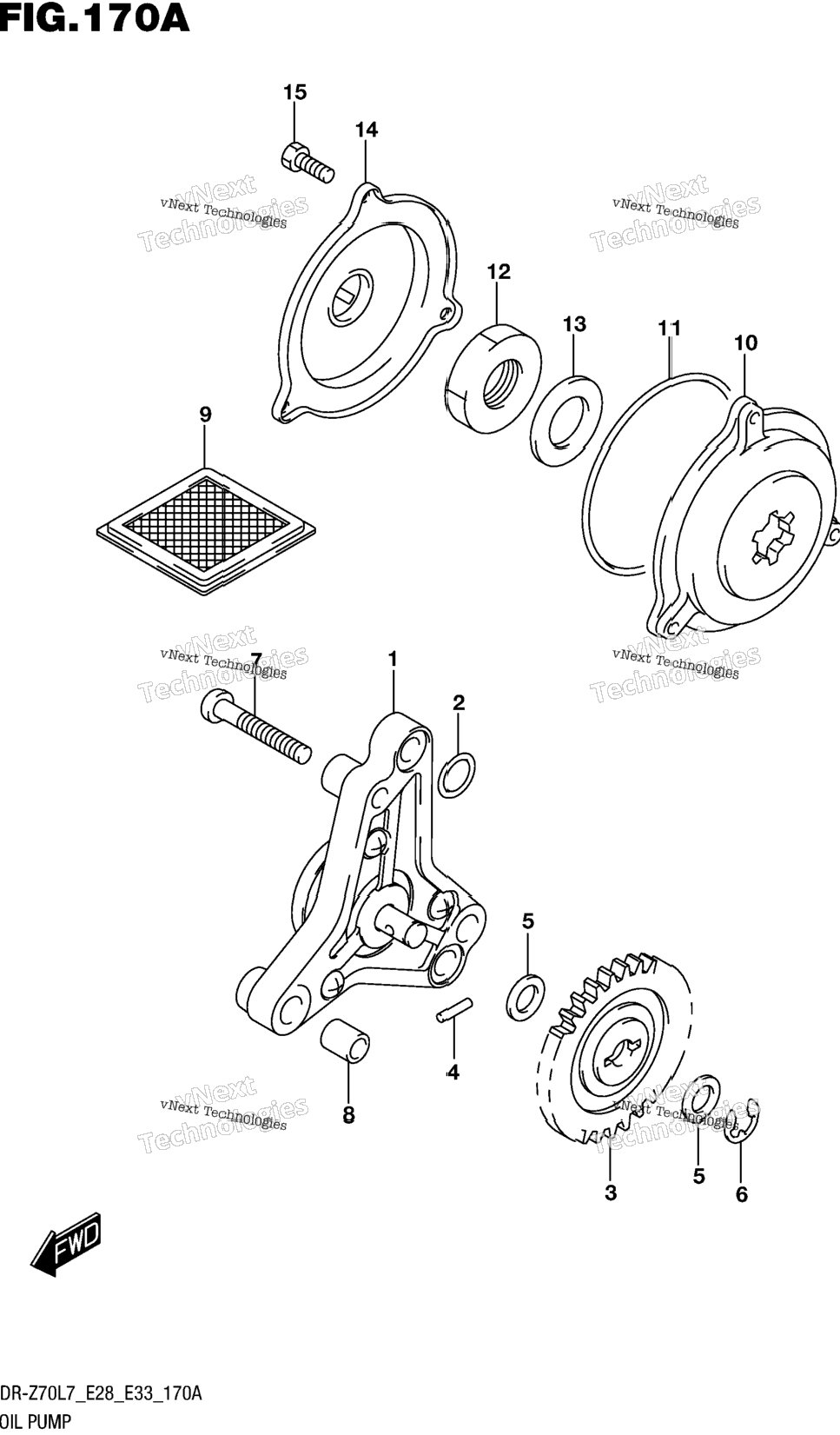

| 1 | 16400-09403 | PUMP ASSY, ENGINE OIL | 0 шт. | — | |
|
| 2 | 09280-10016 | O RING (D:1.9,ID:9.8) | 2 шт. | — | |
|
| 3 | 16331-09440 | GEAR, OIL PUMP DRIVEN (NT:31) | 0 шт. | — | |
|
| 4 | 09261-02001 | PIN (2.5X19.8) | 1 шт. | — | |
|
| 5 | 09181-08139 | SHIM (8.8X14X1) | 2 шт. | — | |
|
| 6 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 7 | 02112-0635A | SCREW | 0 шт. | — | |
|
| 8 | 04211-09129 | PIN | 2 шт. | — | |
|
| 9 | 16520-09402 | STRAINER, ENGINE OIL | 1 шт. | — | |
|
| 10 | 16530-09411 | CASE, ENGINE OIL FILTER | 0 шт. | — | |
|
| 11 | 09280-60005 | .O RING (D:2.4,ID:60.5) | 1 шт. | — | |
|
| 12 | 09140-16025 | NUT | 1 шт. | — | |
|
| 13 | 09164-16004 | WASHER | 0 шт. | — | |
|
| 14 | 16540-09D00 | COVER, OIL FILTER | 1 шт. | — | |
|
| 15 | 09100-05019 | BOLT (5X10) | 3 шт. | — | |
|
