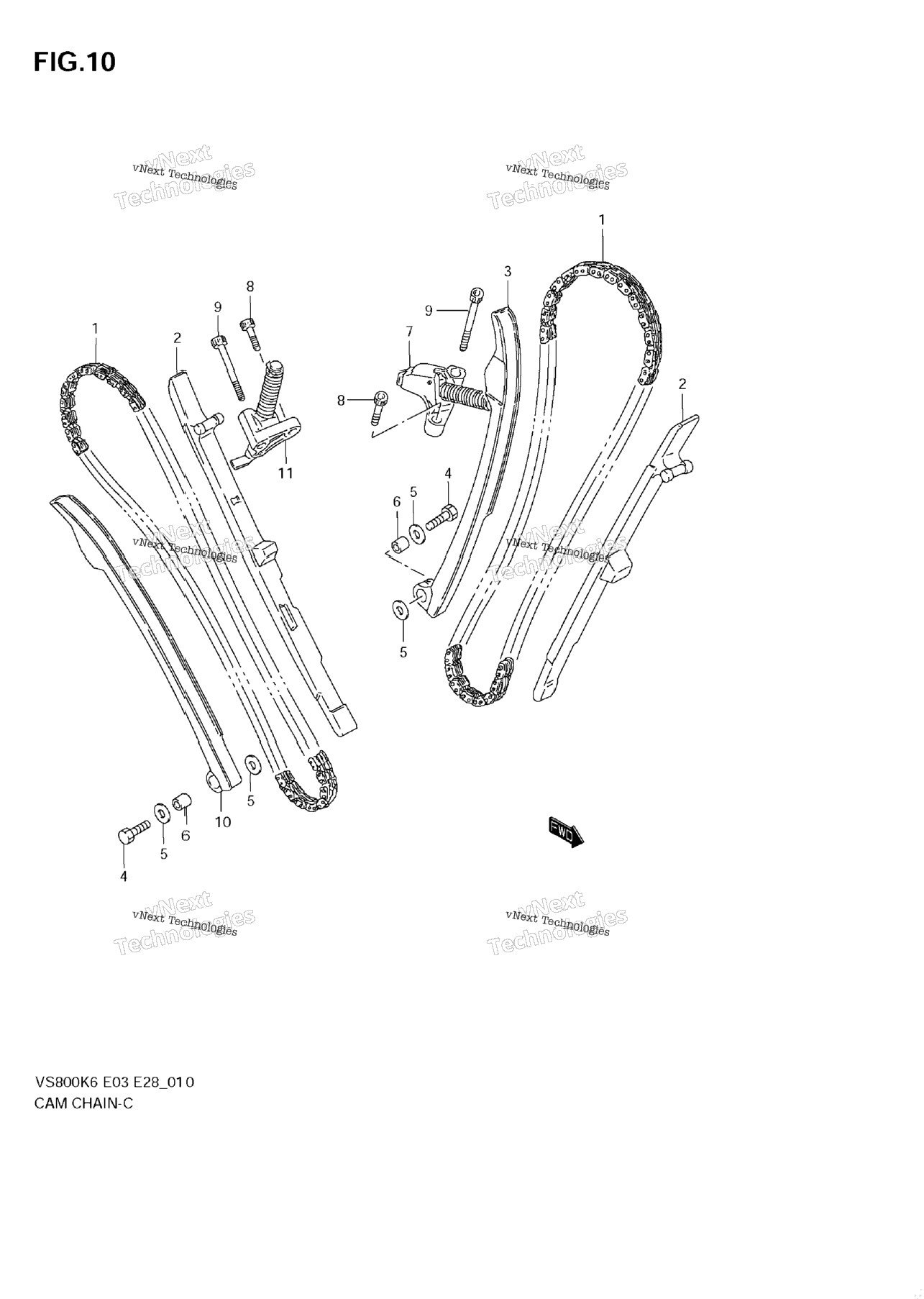

| 1 | 12760-38A20 | CHAIN, CAM SHAFT DRIVE | 2 шт. | — | |
|
| 2 | 12771-38A02 | GUIDE, CAM CHAIN | 2 шт. | — | |
|
| 3 | 12811-38A01 | TENSIONER, CAM CHAIN FRONT | 1 шт. | — | |
|
| 4 | 09100-06129 | BOLT (6X26) | 2 шт. | — | |
|
| 5 | 08211-06182 | WASHER | 4 шт. | — | |
|
| 6 | 09180-06148 | SPACER | 2 шт. | — | |
|
| 7 | 12831-38A01 | ADJUSTER ASSY, TENSIONER FRONT | 1 шт. | — | |
|
| 8 | 07130-0620B | BOLT | 2 шт. | — | |
|
| 9 | 07130-0645B | BOLT | 2 шт. | — | |
|
| 10 | 12816-38A01 | TENSIONER, CAM CHAIN REAR | 1 шт. | — | |
|
| 11 | 12832-38A01 | ADJUSTER ASSY, TENSIONER REAR | 1 шт. | — | |
|
