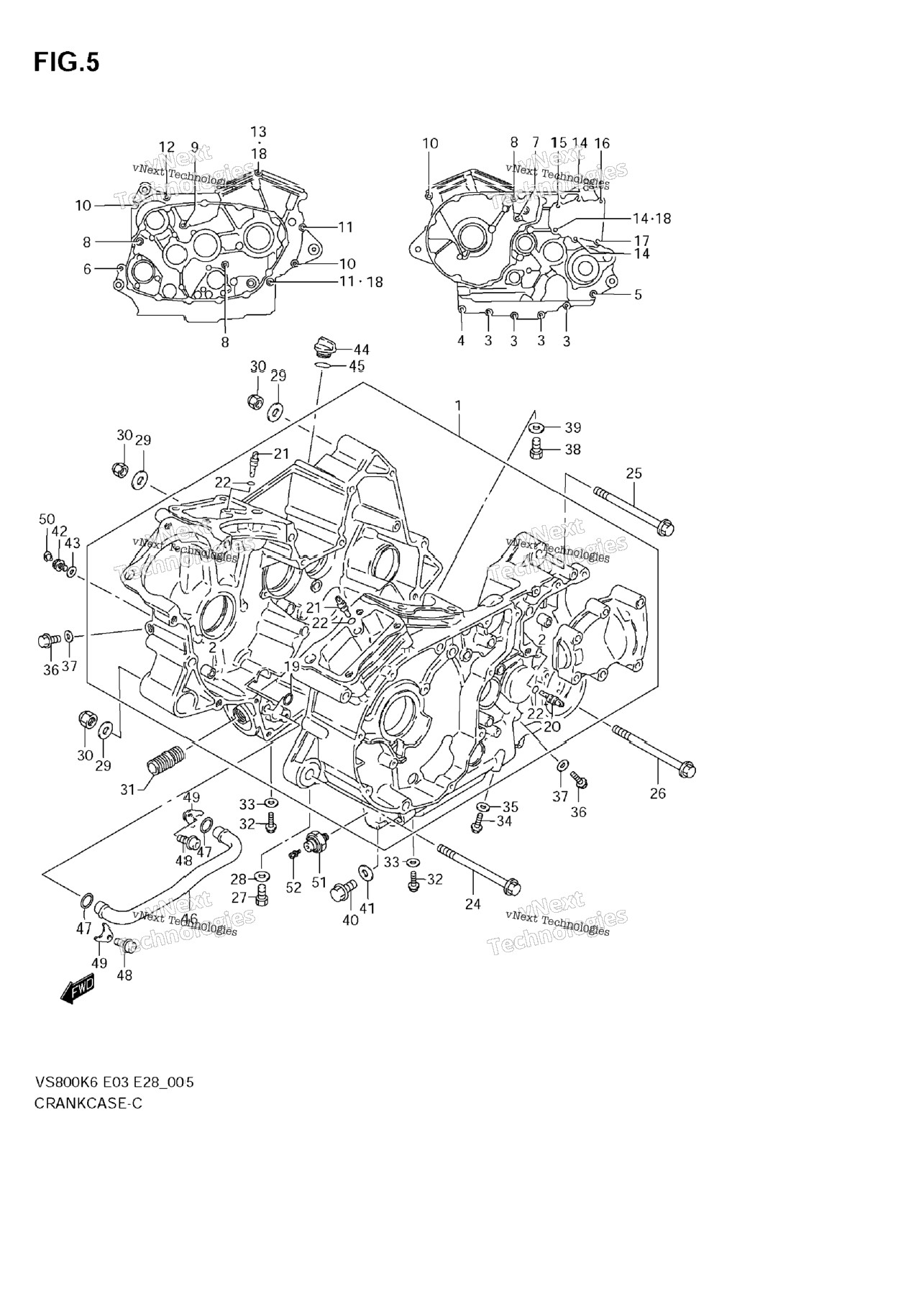

| 1 | 11301-38852 | CRANKCASE SET Includes Item(s) 2 - 23 | 0 шт. | — | |
|
| 2 | 09206-11007 | PIN | 4 шт. | — | |
|
| 3 | 01550-06407 | BOLT | 4 шт. | — | |
|
| 4 | 01550-08357 | BOLT | 1 шт. | — | |
|
| 5 | 01550-08557 | BOLT | 1 шт. | — | |
|
| 6 | 01550-08607 | BOLT | 1 шт. | — | |
|
| 7 | 01550-0875A | BOLT | 1 шт. | — | |
|
| 8 | 01550-0895A | BOLT | 3 шт. | — | |
|
| 9 | 09103-08109 | BOLT (8X120) | 1 шт. | — | |
|
| 10 | 09103-08164 | BOLT (8X95) | 3 шт. | — | |
|
| 11 | 09103-08165 | BOLT (8X105) | 0 шт. | — | |
|
| 12 | 09103-08166 | BOLT (8X120) | 0 шт. | — | |
|
| 13 | 09103-08167 | BOLT (8X160) | 0 шт. | — | |
|
| 14 | 01550-08407 | BOLT | 3 шт. | — | |
|
| 15 | 01550-08507 | BOLT | 1 шт. | — | |
|
| 16 | 09103-08162 | BOLT (8X55) | 0 шт. | — | |
|
| 17 | 09103-08163 | BOLT (8X65) | 1 шт. | — | |
|
| 19 | 09280-12009 | O RING, CRANKCASE (D:1.9,ID:12.6) | 1 шт. | — | |
|
| 20 | 09493-20014 | JET | 1 шт. | — | |
|
| 21 | 09493-28010 | JET AIR (#14) | 2 шт. | — | |
|
| 22 | 09280-04004 | O RING (D:1.2,ID:4) | 3 шт. | — | |
|
| 23 | 09160-48010 | WASHER, CRANK THRUST (NO.10) | 1 шт. | — | |
|
| 23 | 09160-48001 | WASHER, CRANK THRUST (NO.1) SEE ILLUS ON FIG.7 | 1 шт. | — | |
|
| 23 | 09160-48002 | WASHER, CRANK THRUST (NO.2) | 0 шт. | — | |
|
| 23 | 09160-48003 | WASHER, CRANK THRUST (NO.3) | 0 шт. | — | |
|
| 23 | 09160-48004 | WASHER, CRANK THRUST (NO.4) | 0 шт. | — | |
|
| 23 | 09160-48005 | WASHER, CRANK THRUST (NO.5) | 0 шт. | — | |
|
| 23 | 09160-48006 | WASHER, CRANK THRUST (NO.6) | 1 шт. | — | |
|
| 23 | 09160-48007 | WASHER, CRANK THRUST (NO.7) | 0 шт. | — | |
|
| 23 | 09160-48008 | WASHER, CRANK THRUST (NO.8) | 0 шт. | — | |
|
| 23 | 09160-48009 | WASHER, CRANK THRUST (NO.9) | 0 шт. | — | |
|
| 24 | 09103-10141 | BOLT (10X125) | 1 шт. | — | |
|
| 25 | 09103-10122 | BOLT (10X130) | 1 шт. | — | |
|
| 26 | 09103-10078 | BOLT (10X150) | 1 шт. | — | |
|
| 27 | 09247-12011 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 28 | 09168-12002 | GASKET | 1 шт. | — | |
|
| 29 | 08322-0110B | WASHER | 3 шт. | — | |
|
| 30 | 09159-10052 | NUT | 3 шт. | — | |
|
| 31 | 16591-06B00 | UNION, OIL FILTER | 1 шт. | — | |
|
| 32 | 01550-0812B | PLUG, OIL GALLERY | 2 шт. | — | |
|
| 34 | 09247-10008 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 35 | 09168-10002 | GASKET (10X14X3.6) | 1 шт. | — | |
|
| 36 | 01550-0610B | PLUG, OIL GALLERY | 2 шт. | — | |
|
| 37 | 09168-06023 | WASHER (5.8X13X1.2) | 2 шт. | — | |
|
| 38 | 09248-16013 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 39 | 09168-16002 | GASKET | 1 шт. | — | |
|
| 40 | 09247-14026 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 41 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 42 | 07120-08127 | PLUG, OIL GALLERY | 0 шт. | — | |
|
| 43 | 09168-08016 | GASKET | 3 шт. | — | |
|
| 43 | 09168-08016 | GASKET | 1 шт. | — | |
|
| 43 | 09168-08016 | GASKET | 2 шт. | — | |
|
| 44 | 11971-25D00 | PLUG,ENGINE OIL FILLER | 1 шт. | — | |
|
| 45 | 09280-17003 | O-RING (D:3.1,ID:16.8) | 1 шт. | — | |
|
| 46 | 11451-38A00 | PIPE, OIL GALLERY | 0 шт. | — | |
|
| 47 | 09280-15008 | O RING (D:3.1,ID:14.8) | 2 шт. | — | |
|
| 48 | 09106-06075 | BOLT | 2 шт. | — | |
|
| 49 | 11461-38A00 | CLAMP | 0 шт. | — | |
|
| 50 | 09250-06011 | CAP | 1 шт. | — | |
|
| 51 | 37820-33D10 | SWITCH, OIL PRESSURE Includes Item(s) 52 | 1 шт. | — | |
|
| 52 | 37822-33D00 | .BOLT,OIL PRESSURE SWITCH | 1 шт. | — | |
|
