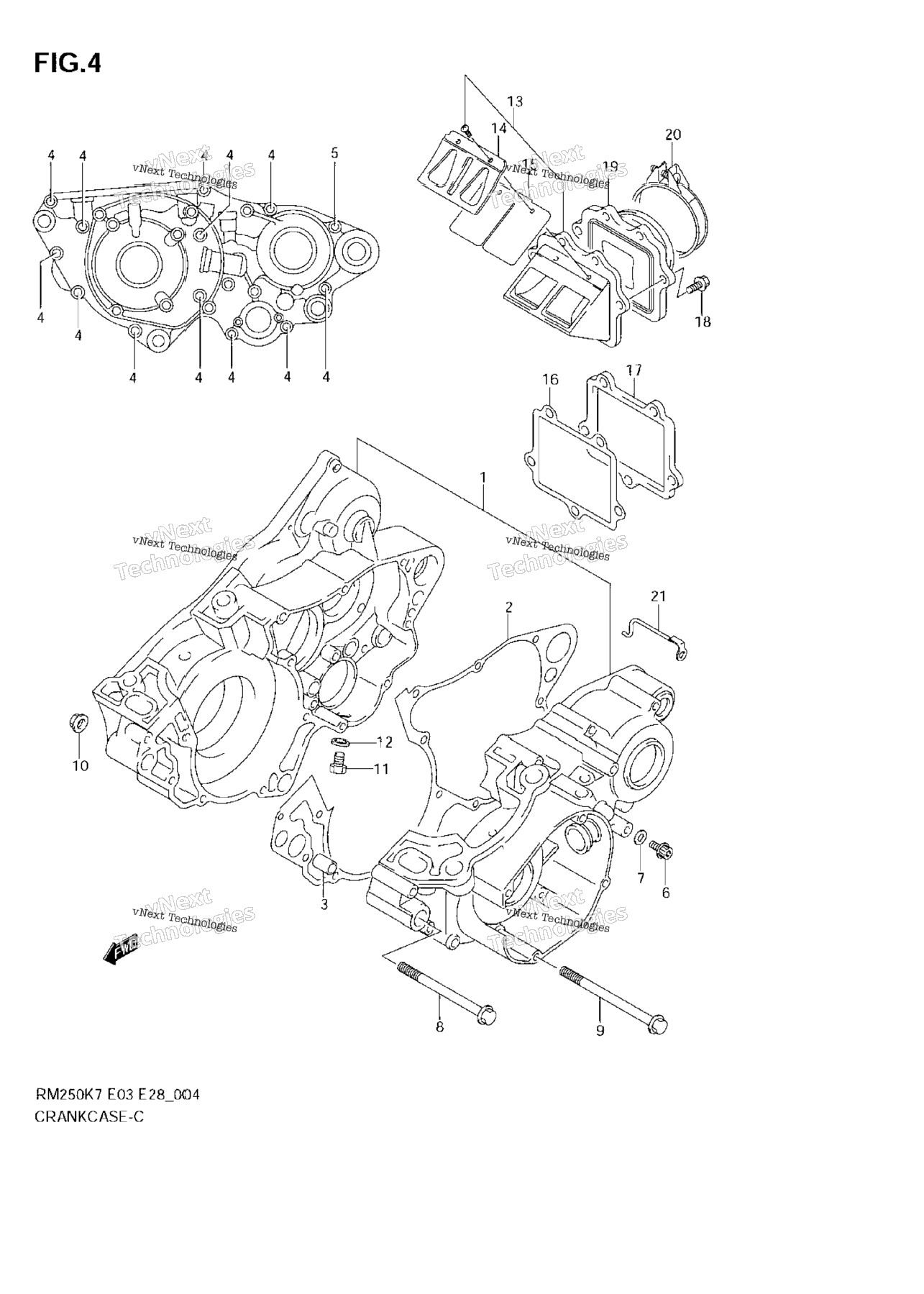

| 1 | 11301-37860 | CRANKCASE SET Includes Item(s) 2 - 7 | 1 шт. | — | |
|
| 2 | 11481-37F20 | GASKET, CRANKCASE | 1 шт. | — | |
|
| 3 | 09206-13017 | PIN | 2 шт. | — | |
|
| 4 | 09103-06244 | BOLT (L:50) | 12 шт. | — | |
|
| 5 | 09103-06245 | BOLT (L:65) | 1 шт. | — | |
|
| 6 | 07120-0610B | BOLT, OIL CHECK | 1 шт. | — | |
|
| 7 | 09168-06004 | GASKET | 1 шт. | — | |
|
| 8 | 09103-10087 | BOLT (10X105) | 1 шт. | — | |
|
| 9 | 09103-10399 | BOLT (10X125) | 1 шт. | — | |
|
| 10 | 09159-10078 | NUT | 2 шт. | — | |
|
| 11 | 09247-12012 | PLUG, DRAIN | 1 шт. | — | |
|
| 12 | 09168-12002 | GASKET, OIL DRAIN PLUG | 1 шт. | — | |
|
| 13 | 13150-37F30 | VALVE ASSY, REED Includes Item(s) 14 - 15 | 0 шт. | — | |
|
| 14 | 13152-37F00 | STOPPER, REED VALVE | 0 шт. | — | |
|
| 15 | 13153-37F30 | VALVE, REED | 2 шт. | — | |
|
| 16 | 13155-37F00 | GASKET, REED VALVE | 1 шт. | — | |
|
| 17 | 13156-37F00 | SPACER, REED VALVE | 1 шт. | — | |
|
| 18 | 09103-06250 | BOLT | 5 шт. | — | |
|
| 19 | 13110-37F40 | PIPE, INTAKE | 1 шт. | — | |
|
| 20 | 09402-56901 | CLAMP | 1 шт. | — | |
|
| 21 | 13694-37F30 | GUIDE, CARBURETOR HOSE | 1 шт. | — | |
|
