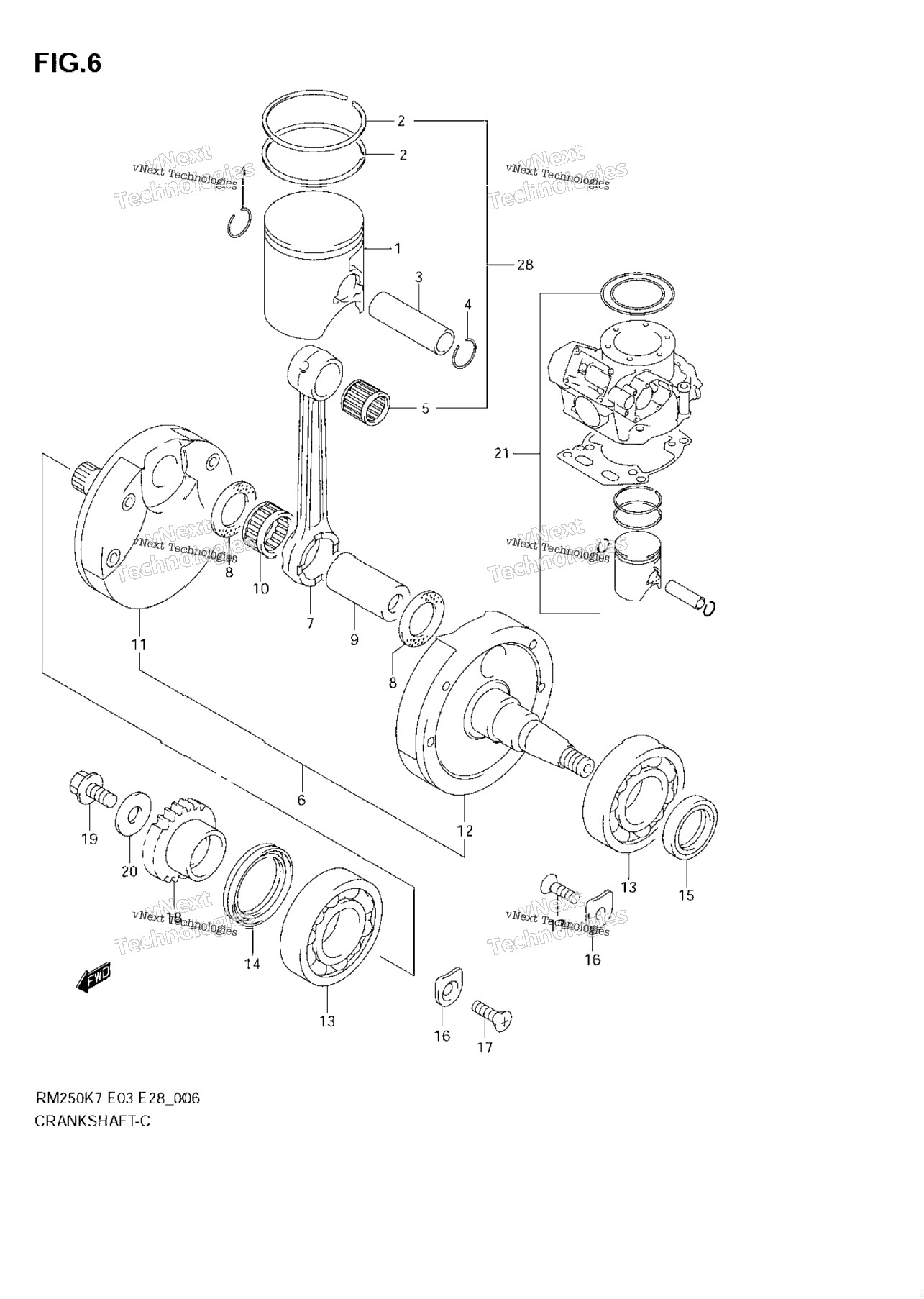

| 6 | 12200-37F40 | CRANKSHAFT ASSY Includes Item(s) 7 - 12 | 1 шт. | — | |
|
| 7 | 12161-37F20 | ROD, CONNECTING | 1 шт. | — | |
|
| 8 | 09160-24033 | WASHER | 2 шт. | — | |
|
| 9 | 12210-37F20 | PIN, CRANK | 1 шт. | — | |
|
| 10 | 09263-24026 | BEARING, CRANK PIN | 1 шт. | — | |
|
| 11 | 12220-37F40 | CRANKSHAFT, RH | 0 шт. | — | |
|
| 12 | 12260-37F40 | CRANKSHAFT, LH | 0 шт. | — | |
|
| 13 | 09262-28044 | BEARING, CRANKSHAFT | 2 шт. | — | |
|
| 14 | 09283-28025 | OIL SEAL, CRANKSHAFT RH | 1 шт. | — | |
|
| 15 | 09283-25099 | OIL SEAL, CRANKSHAFT LH | 1 шт. | — | |
|
| 16 | 24741-37F00 | RETAINER, CRANKSHAFT BEARING | 4 шт. | — | |
|
| 17 | 02122-0612B | SCREW | 4 шт. | — | |
|
| 18 | 21111-37F20 | GEAR, PRIMARY DRIVE (NT:21) | 1 шт. | — | |
|
| 19 | 09103-10339 | BOLT, PRIMARY DRIVE GEAR | 1 шт. | — | |
|
| 20 | 09164-11004 | WASHER | 1 шт. | — | |
|
| 21 | 12102-37840 | TOP END KIT, ENGINE OPT E3; Includes Item(s) 22 - 27 | 1 шт. | — | |
|
| 22 | 11147-37F00 | O RING, CYLINDER HEAD N NOT SHOWN | 2 шт. | — | |
|
| 23 | 11148-37F00 | O RING, CYLINDER HEAD N NOT SHOWN | 2 шт. | — | |
|
| 24 | 11241-37F20 | GASKET, CYLINDER NOT SHOWN | 2 шт. | — | |
|
| 28 | 12110-37830 | PISTON KIT OPT E28; Includes Item(s) 29 - 33 | 1 шт. | — | |
|
| 29 | 12110-37F30-0F0 | PISTON | 1 шт. | — | |
|
| 29 | 12110-37F30-0F0 | PISTON NOT SHOWN | 1 шт. | — | |
|
| 29 | 12110-37F30-0F0 | PISTON NOT SHOWN | 1 шт. | — | |
|
| 30 | 12141-37F00 | RING, PISTON | 2 шт. | — | |
|
| 30 | 12141-37F00 | RING, PISTON NOT SHOWN | 2 шт. | — | |
|
| 30 | 12141-37F00 | RING, PISTON NOT SHOWN | 4 шт. | — | |
|
| 31 | 12151-28C00 | PIN, PISTON | 1 шт. | — | |
|
| 31 | 12151-28C00 | PIN, PISTON NOT SHOWN | 1 шт. | — | |
|
| 32 | 09263-18031 | BEARING | 1 шт. | — | |
|
| 32 | 09263-18031 | BEARING, PISTON PIN NOT SHOWN | 1 шт. | — | |
|
| 33 | 09381-18002 | CIRCLIP | 2 шт. | — | |
|
| 33 | 09381-18002 | CIRCLIP NOT SHOWN | 2 шт. | — | |
|
| 33 | 09381-18002 | CIRCLIP NOT SHOWN | 2 шт. | — | |
|
