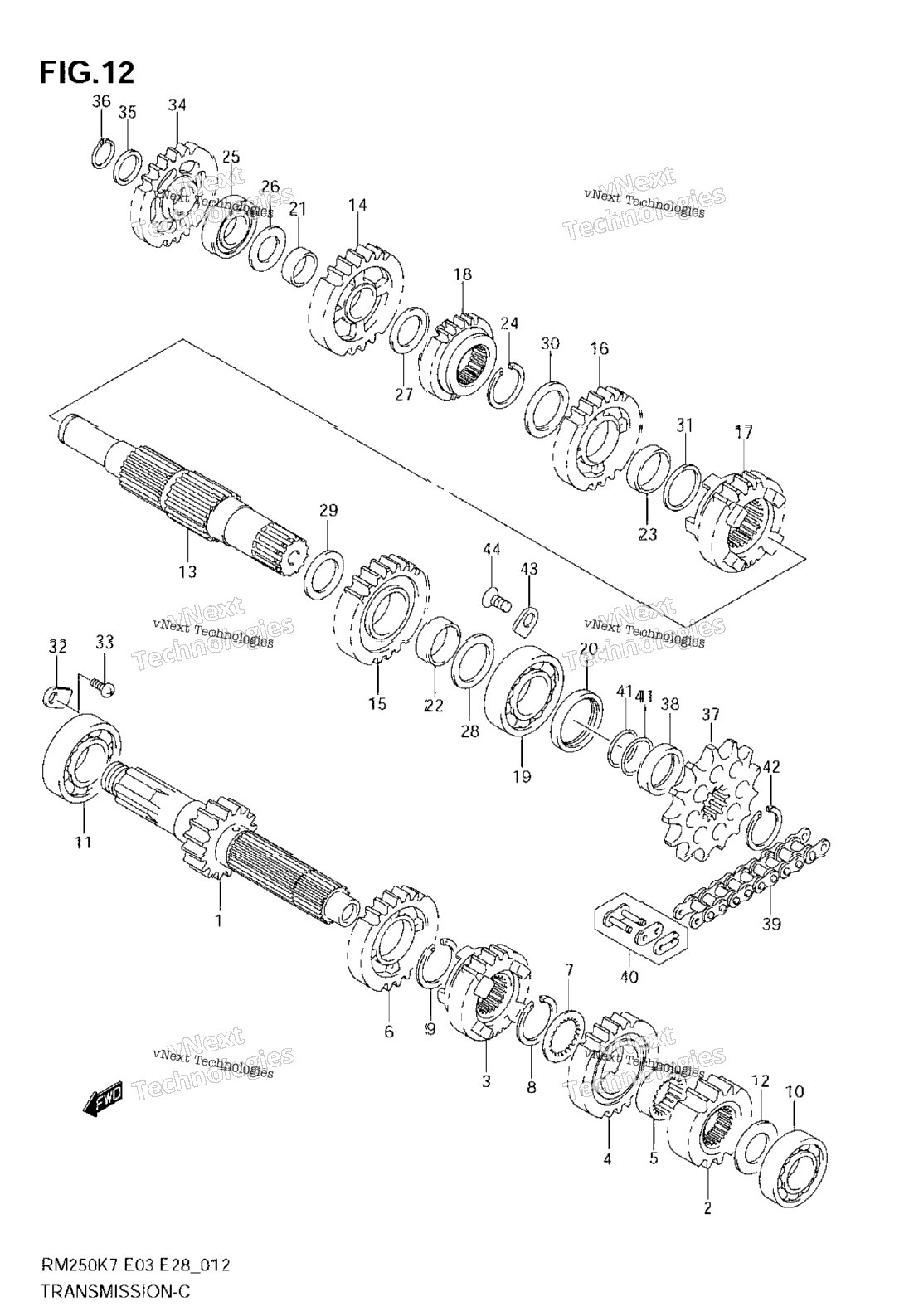

| 1 | 24120-37F50 | SHAFT, COUNTER (NT:15) | 1 шт. | — | |
|
| 2 | 24221-37F00 | GEAR, 2ND DRIVE (NT:17) | 1 шт. | — | |
|
| 3 | 24231-37F11 | GEAR, 3RD DRIVE (NT:19) | 1 шт. | — | |
|
| 4 | 24241-37E01 | GEAR, 4TH DRIVE (NT:21) | 1 шт. | — | |
|
| 5 | 24242-37F00 | BUSH, 4TH DRIVE GEAR | 1 шт. | — | |
|
| 6 | 24251-37E00 | GEAR, 5TH DRIVE (NT:23) | 1 шт. | — | |
|
| 7 | 09167-25026 | WASHER, 4TH (25X31X1.0) | 1 шт. | — | |
|
| 8 | 09380-25010 | CIRCLIP, 4TH DRIVE | 1 шт. | — | |
|
| 9 | 09380-25010 | CIRCLIP, 5TH DRIVE | 1 шт. | — | |
|
| 10 | 08143-62030 | BEARING, CNTR LH | 1 шт. | — | |
|
| 11 | 08143-62057 | BEARING, CNTR RH | 1 шт. | — | |
|
| 12 | 09181-17223 | WASHER, 2ND (17X30X1.0) | 1 шт. | — | |
|
| 13 | 24131-37F20 | SHAFT, DRIVE | 1 шт. | — | |
|
| 14 | 24311-37E00 | GEAR, 1ST DRIVEN (NT:27) | 1 шт. | — | |
|
| 15 | 24321-37E02 | GEAR, 2ND DRIVEN (NT:25) | 1 шт. | — | |
|
| 16 | 24331-37F02 | GEAR, 3RD DRIVEN (NT:23) | 1 шт. | — | |
|
| 17 | 24341-37F20 | GEAR, 4TH DRIVEN (NT:21) | 1 шт. | — | |
|
| 18 | 24351-37F20 | GEAR, 5TH DRIVEN (NT:20) | 1 шт. | — | |
|
| 19 | 09262-22030 | BEARING, DRIVE SHAFT, LH 22X56X15 | 1 шт. | — | |
|
| 20 | 09289-28012 | SEAL, DRIVE (28X38X7.5) | 1 шт. | — | |
|
| 21 | 09300-20037 | BUSH, 1ST DRIVEN GEAR | 1 шт. | — | |
|
| 22 | 09300-25031 | BUSH, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 23 | 09300-25031 | BUSH, 3RD DRIVEN GEAR | 1 шт. | — | |
|
| 24 | 09380-25010 | CIRCLIP, 3RD DRIVEN | 1 шт. | — | |
|
| 25 | 09262-17023 | BEARING, DRIVE SHAFT, RH 17X40X12 | 1 шт. | — | |
|
| 26 | 09181-17223 | WASHER, 1ST (17X30X1.0) | 1 шт. | — | |
|
| 27 | 09181-20195 | WASHER, 1ST (20X30X1.0) | 1 шт. | — | |
|
| 28 | 09181-22240 | WASHER, 2ND (22X34X1.5) | 1 шт. | — | |
|
| 29 | 09181-25167 | WASHER, 2ND (25X34X1.0) | 1 шт. | — | |
|
| 30 | 09181-25167 | WASHER, 3RD (25X34X1.0) | 1 шт. | — | |
|
| 31 | 08221-25305 | WASHER, 3RD DRIVEN NO.2 | 1 шт. | — | |
|
| 32 | 24741-21A00 | RETAINER, CNTR SHAFT BRG | 1 шт. | — | |
|
| 33 | 02112-0612B | SCREW, CNTR RETAINER | 1 шт. | — | |
|
| 34 | 26260-37E01 | GEAR, KICK STARTER (NT:27) | 1 шт. | — | |
|
| 35 | 09181-17130 | WASHER, KICK (17X24X0.5) | 1 шт. | — | |
|
| 36 | 08331-3117A | CIRCLIP, KICK IDLE GR | 1 шт. | — | |
|
| 37 | 27511-37F00 | SPROCKET, ENGINE (NT:13) | 1 шт. | — | |
|
| 38 | 27531-28C00 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 39 | 27600-43D01-114 | CHAIN ASSY (DID520DMA2,114LE) | 1 шт. | — | |
|
| 40 | 27620-43D00 | JOINT SET, CHAIN OPT | 1 шт. | — | |
|
| 41 | 09280-20006 | O RING (D:1.9,ID:19.8) | 2 шт. | — | |
|
| 42 | 09380-22006 | CIRCLIP, ENGINE SPROCKET | 1 шт. | — | |
|
| 43 | 24741-20A00 | RETAINER | 2 шт. | — | |
|
| 44 | 02122-0612A | SCREW | 2 шт. | — | |
|
