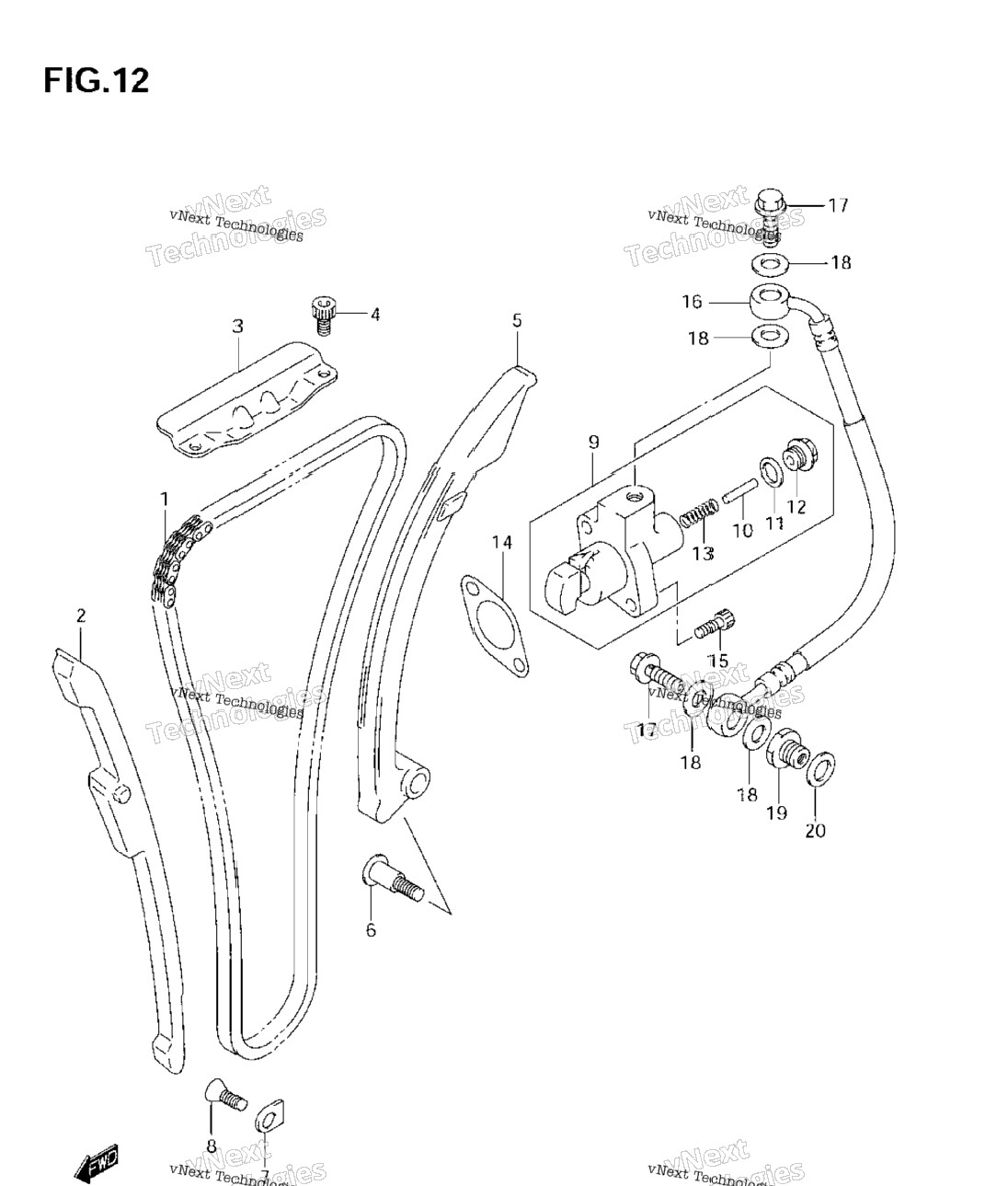

| 1 | 12760-24F00 | CHAIN, CAM SHAFT DRIVE (128LE) | 1 шт. | — | |
|
| 2 | 12771-24F00 | GUIDE, CAM CHAIN NO.1 | 1 шт. | — | |
|
| 3 | 12782-24F01 | GUIDE, CAM CHAIN NO.2 | 1 шт. | — | |
|
| 4 | 07130-06123 | SCREW | 2 шт. | — | |
|
| 5 | 12811-24F10 | TENSIONER, CAM CHAIN MODEL K4 | 1 шт. | — | |
|
| 5 | 12811-24F11 | TENSIONER, CAM CHAIN MODEL K5/K6/K7 | 1 шт. | — | |
|
| 6 | 12812-26B02 | BOLT | 1 шт. | — | |
|
| 7 | 12773-24F00 | RETAINER CAM CHAIN GUIDE NO.1 | 1 шт. | — | |
|
| 8 | 02122-06123 | SCREW | 1 шт. | — | |
|
| 9 | 12800-24F10 | ADJUSTER SET, TENSIONER MODEL K4 | 1 шт. | — | |
|
| 9 | 12800-24F11 | ADJUSTER SET, TENSIONER MODEL K5/K6/K7; Includes Item(s) 10 - 13 | 1 шт. | — | |
|
| 10 | 12836-24F00 | SHAFT, ADJUSTER | 0 шт. | — | |
|
| 11 | 12837-24F10 | GASKET | 1 шт. | — | |
|
| 12 | 12833-05A00 | PLUG | 1 шт. | — | |
|
| 13 | 12831-24F10 | SPRING | 1 шт. | — | |
|
| 14 | 12837-24A10 | .GASKET, TENSIONER ADJUSTER | 1 шт. | — | |
|
| 15 | 07130-06253 | BOLT | 2 шт. | — | |
|
| 16 | 12835-24F00 | HOSE, CAM CHAIN TENSIONER | 1 шт. | — | |
|
| 17 | 12838-35F00 | BOLT MODEL K4 | 2 шт. | — | |
|
| 17 | 12838-35F01 | BOLT MODEL K5/K6/K7 | 2 шт. | — | |
|
| 18 | 09168-08016 | GASKET | 4 шт. | — | |
|
| 19 | 12839-24F00 | PLUG | 1 шт. | — | |
|
| 20 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
