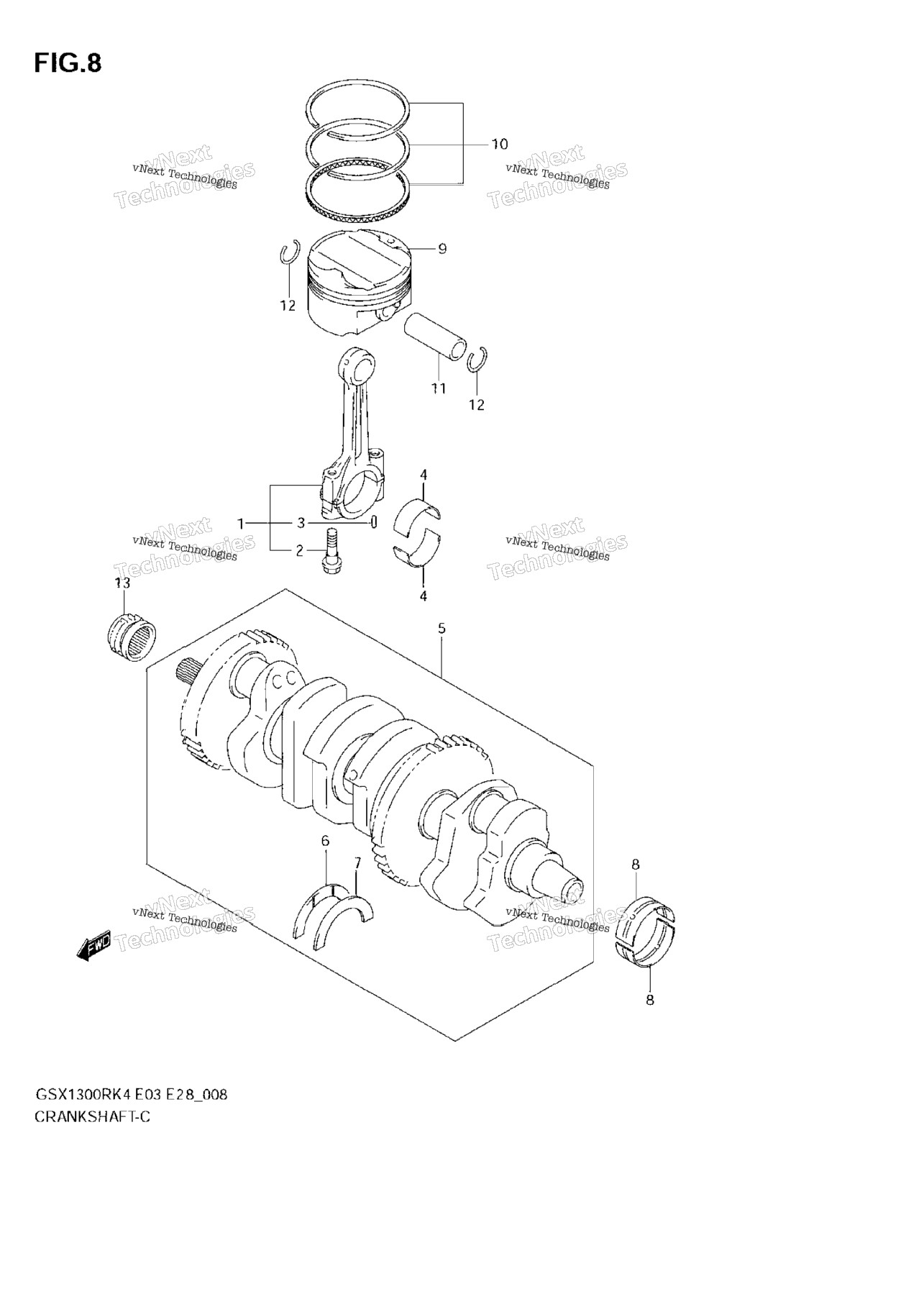

| 1 | 12160-24F02 | ROD ASSY, CONNECTING Includes Item(s) 2 - 3 | 4 шт. | — | |
|
| 2 | 12163-24F00 | BOLT | 8 шт. | — | |
|
| 3 | 12165-27A50 | PIN, CONNROD | 8 шт. | — | |
|
| 4 | 12164-46E01-0B0 | BEARING, CRANK PIN (BLACK) | 8 шт. | — | |
|
| 4 | 12164-46E01-0C0 | BEARING, CRANK PIN (BROWN) | 8 шт. | — | |
|
| 4 | 12164-46E01-0A0 | BEARING, CRANK PIN (GREEN) | 8 шт. | — | |
|
| 4 | 12164-46E01-0D0 | BEARING, CRANK PIN (YELLOW) | 8 шт. | — | |
|
| 5 | 12000-24820 | CRANKSHAFT SET MODEL K4 | 1 шт. | — | |
|
| 5 | 12000-24830 | CRANKSHAFT SET MODEL K5/K6/K7; Includes Item(s) 6 - 7 | 0 шт. | — | |
|
| 7 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 7 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 7 | 12228-24F00-0B0 | .BEARING,CRANK THRUST,L (BLAC | 1 шт. | — | |
|
| 7 | 12228-24F00-0C0 | .BEARING,CRANK THRUST,L (BLUE | 1 шт. | — | |
|
| 7 | 12228-24F00-0A0 | .BEARING,CRANK THRUST,L (RED) | 1 шт. | — | |
|
| 7 | 12228-24F00-0F0 | .BEARING,CRANK THRUST,L (WHIT | 1 шт. | — | |
|
| 7 | 12228-24F00-0E0 | .BEARING,CRANK THRUST,L (YELL | 1 шт. | — | |
|
| 8 | 12229-24F00-0B0 | BEARING, CRANKSHAFT (BLACK) | 10 шт. | — | |
|
| 8 | 12229-24F00-0C0 | BEARING, CRANKSHAFT (BROWN) | 10 шт. | — | |
|
| 8 | 12229-24F00-0A0 | BEARING, CRANKSHAFT (GREEN) | 10 шт. | — | |
|
| 8 | 12229-24F00-0D0 | BEARING, CRANKSHAFT (YELLOW) | 10 шт. | — | |
|
| 9 | 12111-24F11-0F0 | PISTON | 4 шт. | — | |
|
| 10 | 12140-24F10 | RING SET, PISTON | 4 шт. | — | |
|
| 11 | 12151-24F10 | PIN PISTON | 4 шт. | — | |
|
| 12 | 09381-20004 | CIRCLIP | 8 шт. | — | |
|
| 13 | 12731-24F10 | SPROCKET,CAM CHAIN DRIVE MODEL K5/K6/K7 | 1 шт. | — | |
|
| 13 | 12731-24F00 | SPROCKET, CAM CHAIN MODEL K4 | 0 шт. | — | |
|
