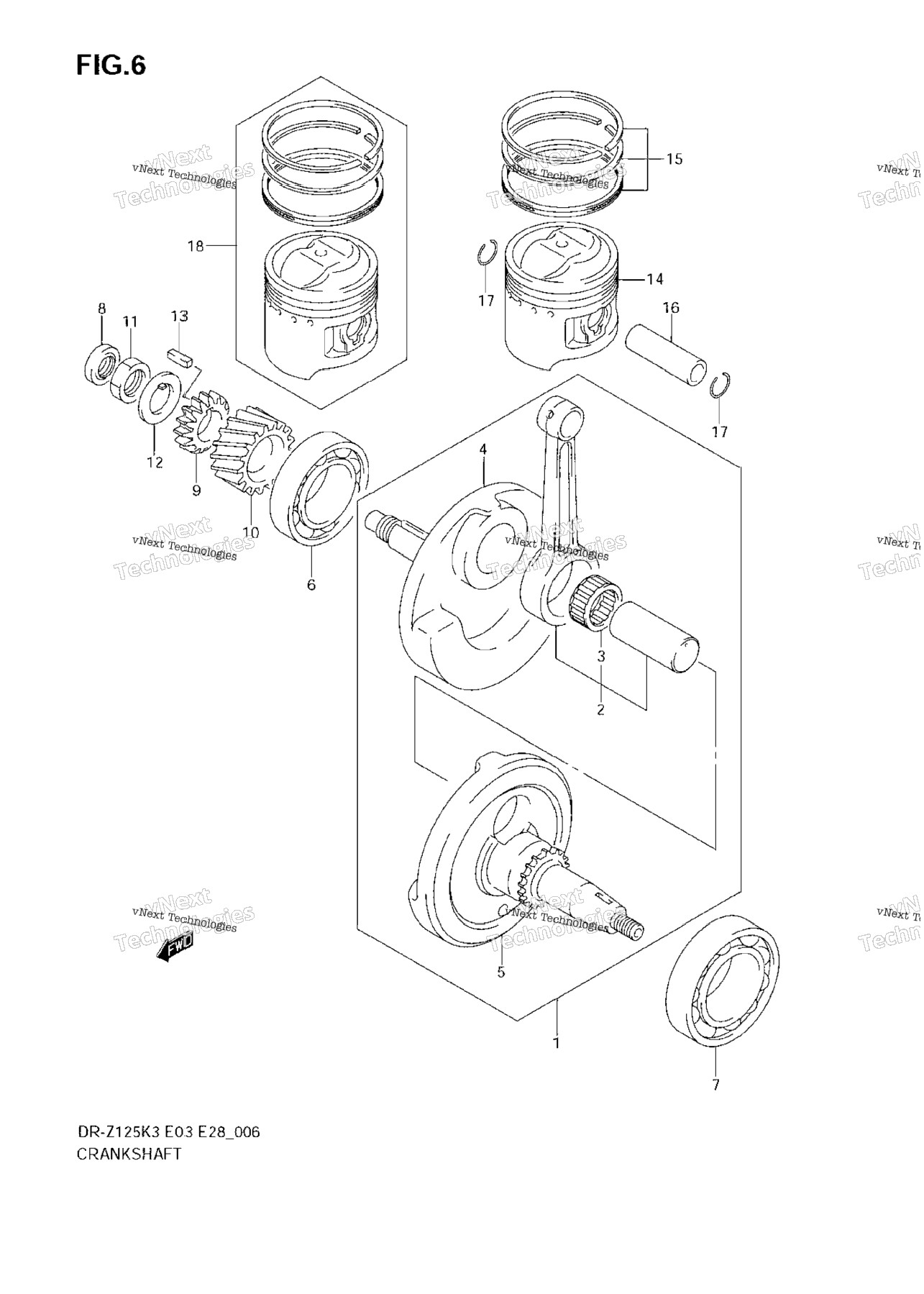

| 1 | 12200-05240 | CRANKSHAFT ASSY Includes Item(s) 2 - 5 | 0 шт. | — | |
|
| 2 | 12105-05821 | ROD SET, CONNECTING | 1 шт. | — | |
|
| 3 | 09263-28027-0B0 | BEARING (28X36X15.8) | 1 шт. | — | |
|
| 4 | 12221-05210 | .CRANKSHAFT, RH | 0 шт. | — | |
|
| 5 | 12261-05210 | .CRANKSHAFT LH | 0 шт. | — | |
|
| 6 | 09262-28014 | BEARING, RH (28X68X18) | 1 шт. | — | |
|
| 7 | 09262-35038 | BEARING, LH (35X72X17) | 1 шт. | — | |
|
| 8 | 09282-12009 | OIL SEAL (12X21X7) | 1 шт. | — | |
|
| 9 | 16321-05201 | GEAR, OIL PUMP DRIVE (NT:15) | 0 шт. | — | |
|
| 10 | 21111-05200-0C0 | GEAR, PRIMARY DRIVE (NT:17) | 0 шт. | — | |
|
| 11 | 09140-16019 | NUT | 1 шт. | — | |
|
| 12 | 09166-16012 | WASHER | 1 шт. | — | |
|
| 13 | 09421-04004 | KEY | 1 шт. | — | |
|
| 14 | 12111-05202-0F0 | PISTON | 1 шт. | — | |
|
| 15 | 12140-01410 | RING SET, PISTON | 1 шт. | — | |
|
| 16 | 12151-05220 | PIN, PISTON | 1 шт. | — | |
|
| 17 | 09381-14001 | RING,SNAP | 2 шт. | — | |
|
| 18 | 12100-05200-050 | PISTON SET (OS:0.5) OPT | 1 шт. | — | |
|
