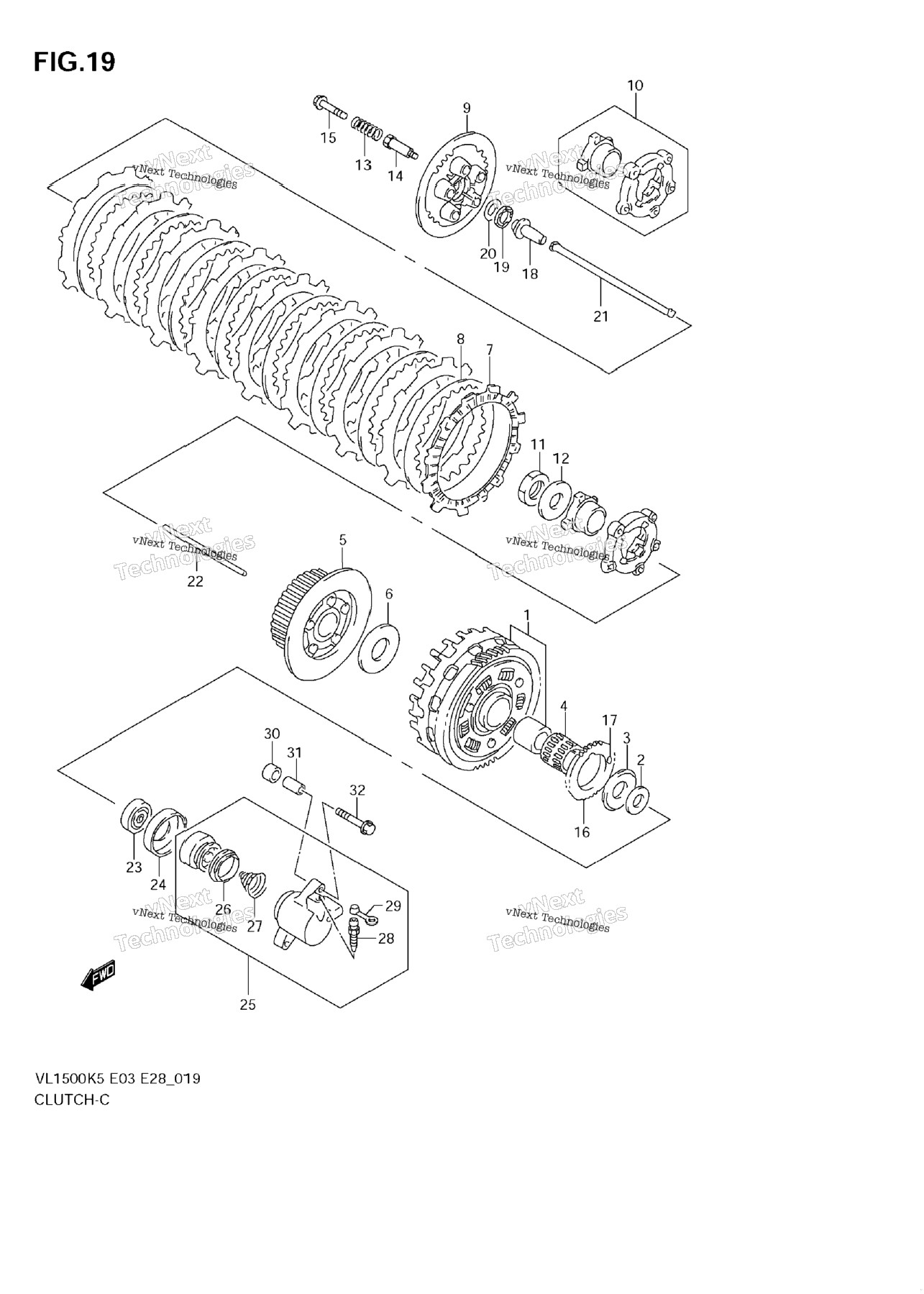

| 1 | 21200-10810 | GEAR, PRIMARY DRIVEN (NT:76) | 1 шт. | — | |
|
| 2 | 09160-25066 | WASHER, INNER (25X38X2.5) | 1 шт. | — | |
|
| 3 | 09160-25037 | WASHER, THRUST (25.1X54X2.5) | 1 шт. | — | |
|
| 4 | 09263-35017 | BEARING (35X40X35.8) | 1 шт. | — | |
|
| 5 | 21410-10F00 | HUB, SLEEVE | 1 шт. | — | |
|
| 6 | 09160-25056 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 7 | 21441-31D20 | PLATE, CLUTCH DRIVE | 9 шт. | — | |
|
| 8 | 21451-44B00 | PLATE, CLUTCH DRIVEN | 8 шт. | — | |
|
| 9 | 21462-10F00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 10 | 21610-10F00 | CAM SET, CLUTCH | 1 шт. | — | |
|
| 11 | 09159-24010 | NUT, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 12 | 09164-24006 | WASHER, CLUTCH SLEEVE | 1 шт. | — | |
|
| 13 | 21413-10F10 | SPRING, CLUTCH | 5 шт. | — | |
|
| 14 | 21411-02F00 | BOLT, CLUTCH SPRING SPRT | 5 шт. | — | |
|
| 15 | 21482-13E00 | BOLT, CLUTCH SPRING | 5 шт. | — | |
|
| 16 | 16321-38B00 | GEAR, OIL PUMP DRIVE (NT:40) | 1 шт. | — | |
|
| 17 | 09261-06002 | PIN | 1 шт. | — | |
|
| 18 | 23121-38B00 | PIECE, PUSH | 1 шт. | — | |
|
| 19 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 20 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 21 | 23110-38B00 | ROD,CLUTCH PUSH,R | 1 шт. | — | |
|
| 22 | 23111-24A01 | ROD, PUSH LH | 1 шт. | — | |
|
| 23 | 09285-06017 | OIL SEAL (6X34X11) | 1 шт. | — | |
|
| 24 | 23117-38A00 | RETAINER | 1 шт. | — | |
|
| 25 | 23160-10F00 | CYLINDER, CLUTCH RELEASE Includes Item(s) 26 - 29 | 1 шт. | — | |
|
| 26 | 23163-10F00 | CUP | 1 шт. | — | |
|
| 27 | 23164-10F00 | SPRING | 1 шт. | — | |
|
| 28 | 59121-01A00 | BLEEDER | 1 шт. | — | |
|
| 29 | 59122-01A00 | CAP | 1 шт. | — | |
|
| 30 | 09180-09019 | SPACER (9X16X11) | 2 шт. | — | |
|
| 31 | 09206-09011 | PIN | 2 шт. | — | |
|
| 32 | 01550-0640B | BOLT | 2 шт. | — | |
|
