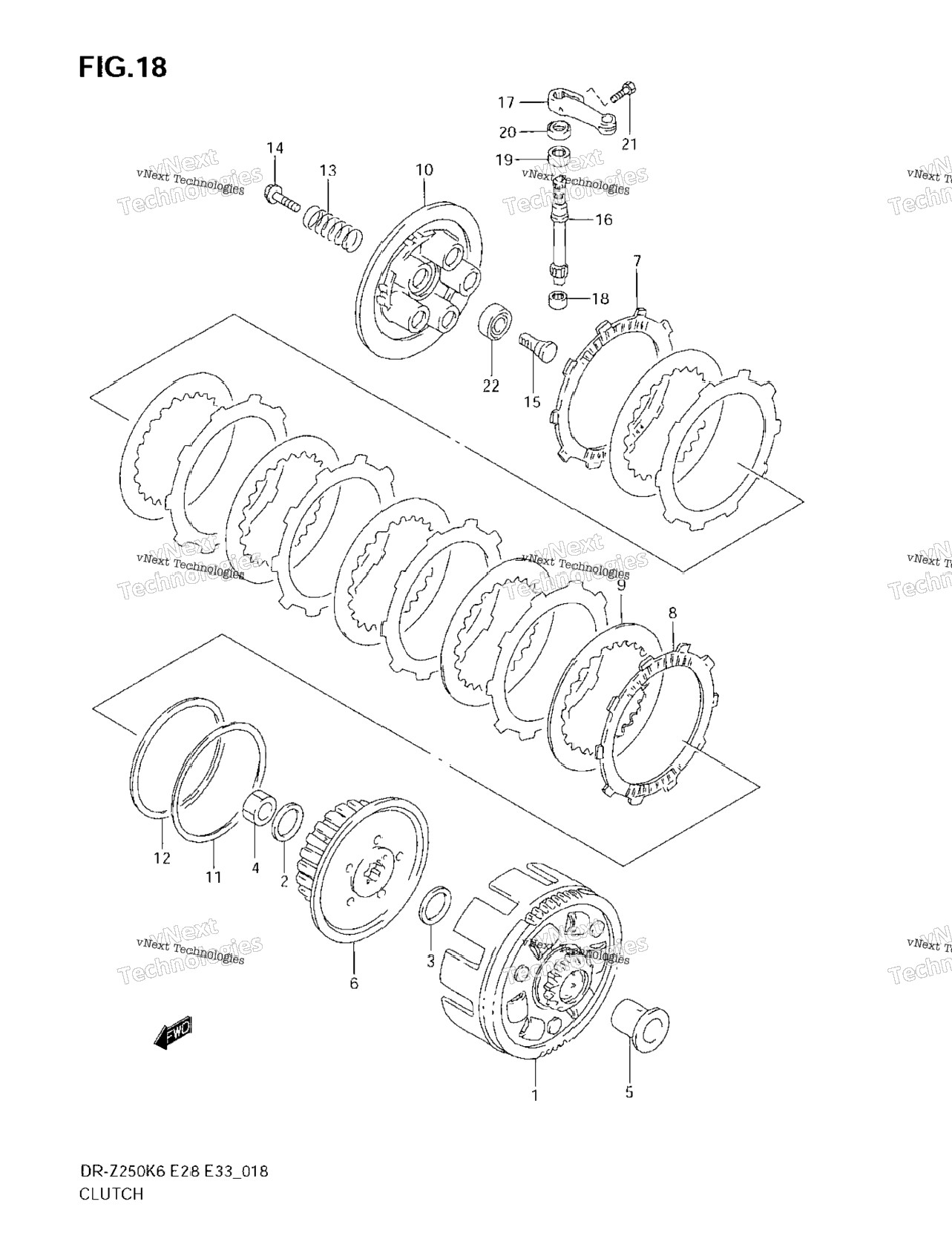

| 1 | 21200-13E00 | GEAR ASSY, PRIMARY DRIVEN NT:65/15 | 0 шт. | — | |
|
| 2 | 09164-20007 | WASHER | 1 шт. | — | |
|
| 3 | 08211-20363 | THRUST WASHER | 1 шт. | — | |
|
| 4 | 09140-20012 | NUT | 1 шт. | — | |
|
| 5 | 21251-13E00 | SPACER, PRIMARY DRIVEN GEAR | 1 шт. | — | |
|
| 6 | 21410-13E00 | HUB, CLUTCH SLEEVE | 0 шт. | — | |
|
| 7 | 21441-31E60 | PLATE, CLUTCH SLEEVE | 6 шт. | — | |
|
| 8 | 21442-31E00 | PLATE, CLUTCH DRIVE | 1 шт. | — | |
|
| 9 | 21451-13E10 | PLATE, CLUTCH DRIVEN | 6 шт. | — | |
|
| 10 | 21462-42E00 | DISC, CLUTCH PRESSURE | 0 шт. | — | |
|
| 11 | 21471-13E00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 12 | 21472-13E00 | WASHER, CLUTCH PLATE | 1 шт. | — | |
|
| 13 | 21481-13E00 | SPRING, CLUTCH | 5 шт. | — | |
|
| 14 | 21482-13E00 | BOLT, CLUTCH SPRING | 5 шт. | — | |
|
| 15 | 23165-13E00 | RACK, CLUTCH RELEASE | 0 шт. | — | |
|
| 16 | 23261-27C10 | PINION, CLUTCH RELEASE | 1 шт. | — | |
|
| 17 | 23271-20902 | ARM CLUTCH RELEASE | 1 шт. | — | |
|
| 18 | 09263-09001 | BEARING (9X13X10) | 1 шт. | — | |
|
| 19 | 09263-12024 | BEARING (12X16X10) | 1 шт. | — | |
|
| 20 | 09285-10004 | OIL SEAL (10X17X5) | 1 шт. | — | |
|
| 21 | 01500-0616A | BOLT | 1 шт. | — | |
|
| 22 | 09262-12001 | BEARING (12X28X8) | 1 шт. | — | |
|
