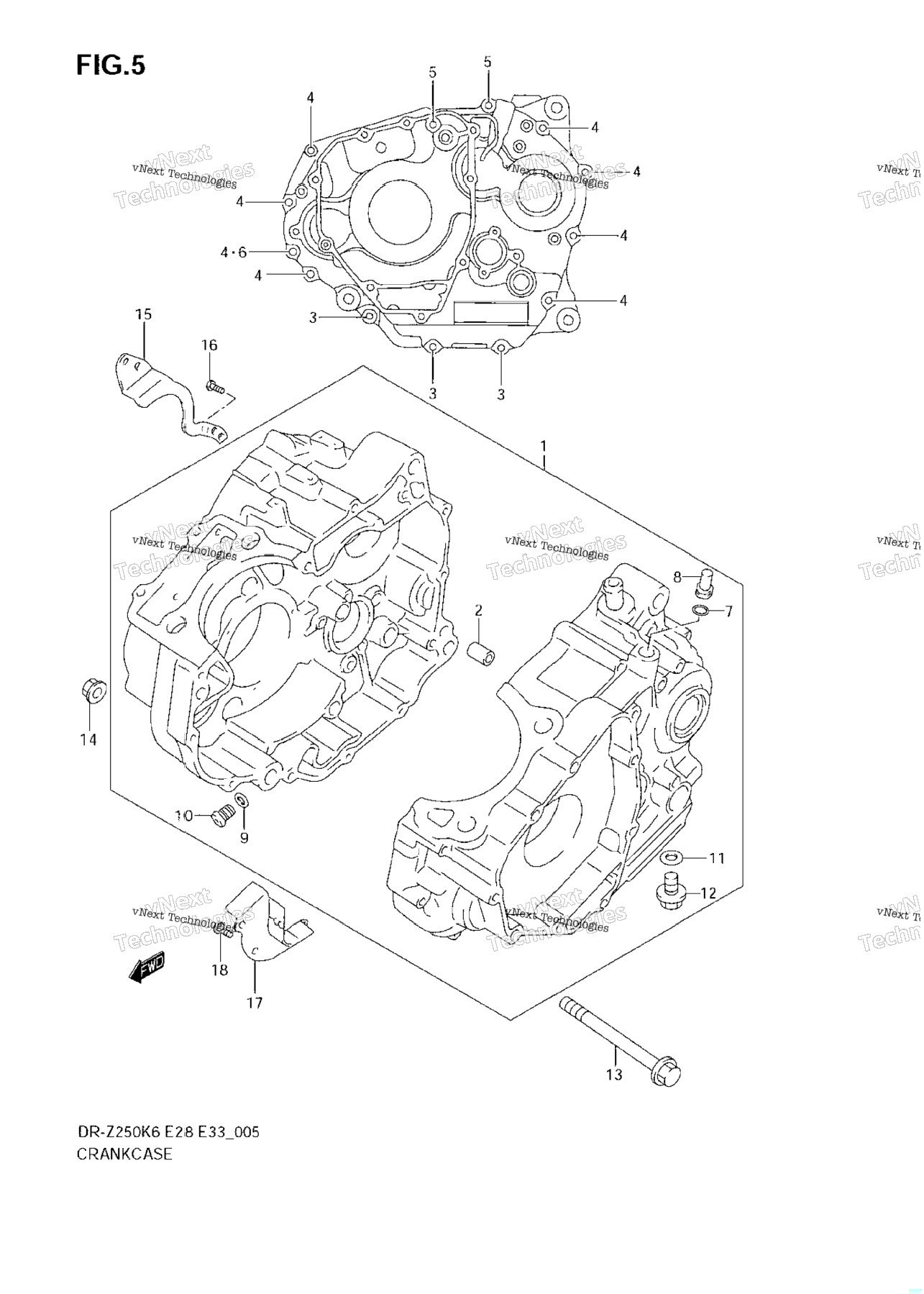

| 1 | 11301-13840 | CRANKCASE SET MODEL K6 | 0 шт. | — | |
|
| 1 | 11301-13841 | CRANKCASE SET MODEL K7; Includes Item(s) 2 - 12 | 0 шт. | — | |
|
| 2 | 09202-10006 | .PIN (L:27) | 0 шт. | — | |
|
| 3 | 01547-06403 | BOLT MODEL K6 | 3 шт. | — | |
|
| 3 | 01547-0640A | BOLT MODEL K7 | 3 шт. | — | |
|
| 4 | 01547-06503 | BOLT MODEL K6 | 8 шт. | — | |
|
| 4 | 01547-0650A | BOLT MODEL K7 | 8 шт. | — | |
|
| 5 | 01547-06653 | BOLT MODEL K6 | 2 шт. | — | |
|
| 5 | 01547-0655A | BOLT MODEL K7 | 2 шт. | — | |
|
| 6 | 09168-06023 | GASKET, CRANKCASE BOLT | 1 шт. | — | |
|
| 7 | 09280-04004 | O RING (D:1.2,ID:4) | 1 шт. | — | |
|
| 8 | 09493-24012 | JET | 0 шт. | — | |
|
| 9 | 09168-10002 | GASKET (10X14X3.6) | 1 шт. | — | |
|
| 10 | 09248-10010 | PLUG (10X10) | 1 шт. | — | |
|
| 11 | 09168-12002 | GASKET (12.1X16.2X3.7) | 1 шт. | — | |
|
| 12 | 09247-12106 | PLUG | 1 шт. | — | |
|
| 13 | 09103-10242 | BOLT (10X100) | 3 шт. | — | |
|
| 14 | 09159-10058 | NUT MODEL K6 | 3 шт. | — | |
|
| 14 | 09159-10115 | NUT MODEL K7 | 3 шт. | — | |
|
| 15 | 11317-13E10 | PLATE, BREATHER OIL RETURN | 0 шт. | — | |
|
| 16 | 02112-06123 | SCREW MODEL K6 | 1 шт. | — | |
|
| 16 | 02112-0612A | SCREW MODEL K7 | 1 шт. | — | |
|
| 17 | 11323-13E01 | SEPARATOR, CRANKCASE OIL | 1 шт. | — | |
|
| 18 | 09125-06110 | SCREW (6X12) | 3 шт. | — | |
|
