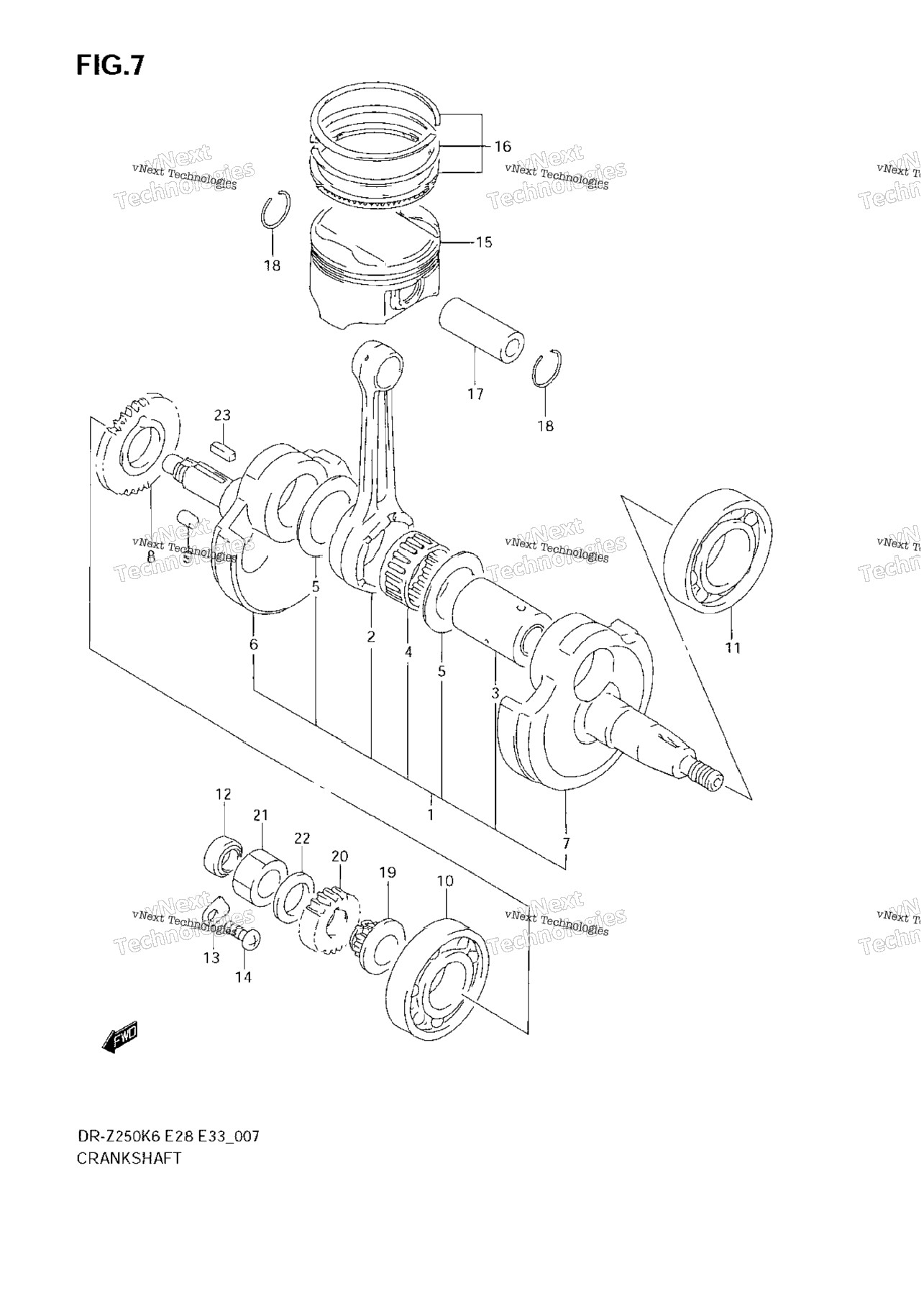

| 1 | 12200-13E01 | CRANKSHAFT ASSY Includes Item(s) 2 - 7 | 1 шт. | — | |
|
| 2 | 12161-13E00 | CONNECTING ROD | 1 шт. | — | |
|
| 3 | 12210-14D03 | PIN, CRANK | 1 шт. | — | |
|
| 4 | 09263-34007 | BEARING (34X43X20) | 1 шт. | — | |
|
| 5 | 09160-34003 | .WASHER,34X52X1 (34X52X1) | 2 шт. | — | |
|
| 6 | 12221-13E00 | CRANKSHAFT, RH | 0 шт. | — | |
|
| 7 | 12261-13E00-0A0 | CRANKSHAFT, LH | 0 шт. | — | |
|
| 8 | 12661-13E00 | GEAR, CRANK BALANCER DRIVE (NT:34) | 1 шт. | — | |
|
| 9 | 09261-08006 | PIN | 0 шт. | — | |
|
| 10 | 09262-28014 | BEARING (28X68X18) | 1 шт. | — | |
|
| 11 | 09262-28031-0B0 | BEARING (28X68X18) | 0 шт. | — | |
|
| 12 | 09282-14003 | SEAL OIL (14X24X6) | 1 шт. | — | |
|
| 13 | 24742-18A00 | RETAINER BEARING | 1 шт. | — | |
|
| 14 | 02112-06123 | SCREW | 1 шт. | — | |
|
| 15 | 12111-13E00-0F0 | PISTON | 1 шт. | — | |
|
| 16 | 12140-13E00 | RING SET, PISTON | 1 шт. | — | |
|
| 17 | 12151-17C00 | PIN, PISTON | 1 шт. | — | |
|
| 18 | 09381-19001 | SNAP RING | 2 шт. | — | |
|
| 19 | 12731-13E00 | SPROCKET, CAM CHAIN DRIVE | 0 шт. | — | |
|
| 20 | 21111-13E01 | GEAR, PRIMARY DRIVE (NT:21) | 0 шт. | — | |
|
| 21 | 09140-18004 | NUT | 1 шт. | — | |
|
| 22 | 09164-18007 | WASHER (18.3X31.5X1.8) | 1 шт. | — | |
|
| 23 | 09421-05009 | KEY | 1 шт. | — | |
|
