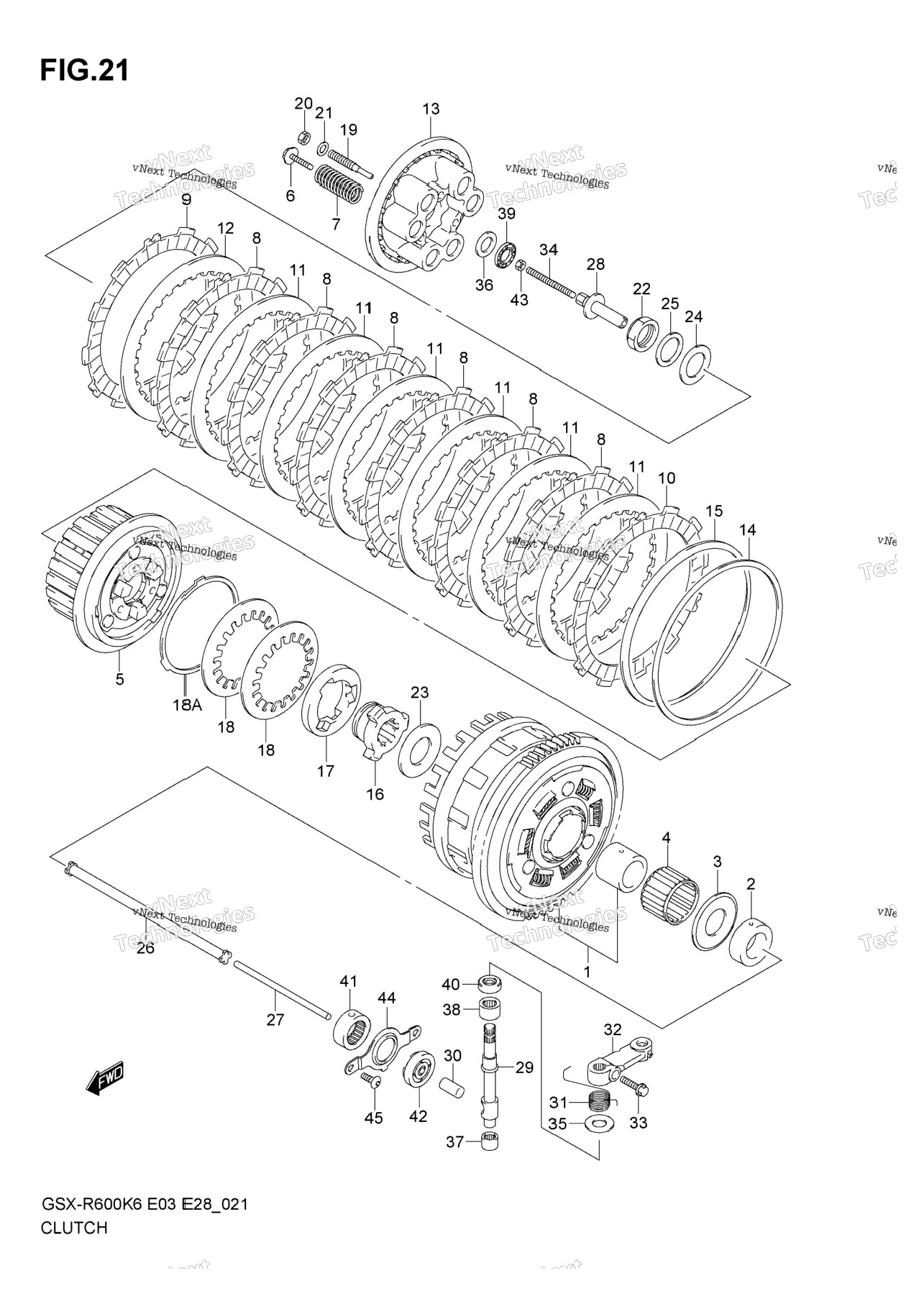

| 1 | 21200-01810 | GEAR ASSY, PRIMARY DRIVEN NT:77 | 1 шт. | — | |
|
| 2 | 21253-01H00 | SPACER, OIL PUMP DRIVE | 1 шт. | — | |
|
| 3 | 09160-25073 | WASHER (25X54X2.4) | 1 шт. | — | |
|
| 4 | 09263-35015 | BEARING (35X40X26.8) | 1 шт. | — | |
|
| 5 | 21410-41G10 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 6 | 21482-41G00 | BOLT, CLUTCH SPRING | 6 шт. | — | |
|
| 7 | 21413-01H00 | SPRING, CLUTCH | 6 шт. | — | |
|
| 8 | 21441-36F30 | PLATE, CLUTCH DRIVE NO.1 | 6 шт. | — | |
|
| 9 | 21441-36F20 | PLATE, CLUTCH DRIVE NO.2 | 1 шт. | — | |
|
| 10 | 21442-41G10 | PLATE, CLUTCH DRIVE NO.3 | 1 шт. | — | |
|
| 11 | 21451-41G20 | PLATE, CLUTCH DRIVEN NO.1 T:2.6 | 6 шт. | — | |
|
| 12 | 21451-41G00 | PLATE, CLUTCH DRIVEN (T:2.3) T:2.3 | 1 шт. | — | |
|
| 13 | 21462-41G00 | DISC,CLUTCH PRESSURE | 1 шт. | — | |
|
| 14 | 21471-41G00 | SEAT,WAVE WASHER | 1 шт. | — | |
|
| 15 | 21472-41G10 | WASHER, CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 16 | 21611-41G10 | CAM, CLUTCH DRIVE | 0 шт. | — | |
|
| 17 | 21612-41G10 | CAM,CLUTCH DRIVEN | 1 шт. | — | |
|
| 18 | 21621-41G00 | WASHER,CAM REACTION WAVE | 2 шт. | — | |
|
| 18A | 21624-41G00 | WASHER,CAM REACTION SEAT | 1 шт. | — | |
|
| 19 | 21622-41G00 | LIFTER, CLUTCH PRESSURE DISC | 3 шт. | — | |
|
| 20 | 21623-41G00 | NUT, CL PRESS DISC | 3 шт. | — | |
|
| 21 | 09181-08139 | WASHER (8X14X1.0) | 3 шт. | — | |
|
| 22 | 09159-24010 | NUT, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 23 | 09160-25056 | WASHER, CLUTCH SLEEVE THR 25X50X2.5 | 1 шт. | — | |
|
| 24 | 09164-24006 | WASHER, CLUTCH WAVE 24.2X35X2 | 1 шт. | — | |
|
| 25 | 09160-25077 | WASHER, SLEEVE HUB NUT 25X41X2.50 | 1 шт. | — | |
|
| 26 | 23110-38B00 | ROD,CLUTCH PUSH,R | 1 шт. | — | |
|
| 27 | 23111-35F00 | ROD,CLUTCH PUSH,L | 1 шт. | — | |
|
| 28 | 23121-41G00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 29 | 23122-41G00-A05 | CAMSHAFT, CLUTCH RELEASE | 1 шт. | — | |
|
| 30 | 23123-41G00 | CAP, CLUTCH PUSH ROD | 1 шт. | — | |
|
| 31 | 23125-41G00 | SPRING,CLUTCH RELEASE RETURN | 1 шт. | — | |
|
| 32 | 23271-41G20 | ARM, CLUTCH RELEASE | 1 шт. | — | |
|
| 33 | 09103-06223 | BOLT, CL RELEASE | 1 шт. | — | |
|
| 34 | 09134-06015-A05 | SCREW, CLUTCH PUSH | 1 шт. | — | |
|
| 35 | 09160-10020-A05 | WASHER, CLUTCH PUSH 10.5X24X1 | 1 шт. | — | |
|
| 36 | 09160-15045 | WASHER, CLUTCH PUSH 15.5X28X1.0 | 1 шт. | — | |
|
| 37 | 09263-10014 | BEARING, CL CAM SHAFT 10X14X10 | 1 шт. | — | |
|
| 38 | 09263-12027 | BEARING, CL RLSE CAM 12X18X12 | 1 шт. | — | |
|
| 39 | 09263-15003 | BEARING, CL PUSH PIECE 15X28X2 | 1 шт. | — | |
|
| 40 | 09282-10012 | SEAL, CL RLSE CAM SHAFT 10X20X6 | 1 шт. | — | |
|
| 41 | 09285-06011 | SEAL, CLUTCH PUSH ROD 5X34X10 | 1 шт. | — | |
|
| 42 | 09285-10004 | SEAL, CLUTCH PUSH ROD 10X17X5 | 1 шт. | — | |
|
| 43 | 08310-0006A | NUT, CLUTCH RELEASE | 1 шт. | — | |
|
| 44 | 24741-01H00-A05 | RETAINER, CL PUSH ROD | 1 шт. | — | |
|
| 45 | 09139-06153 | SCREW, PUSH ROD | 2 шт. | — | |
|
